6

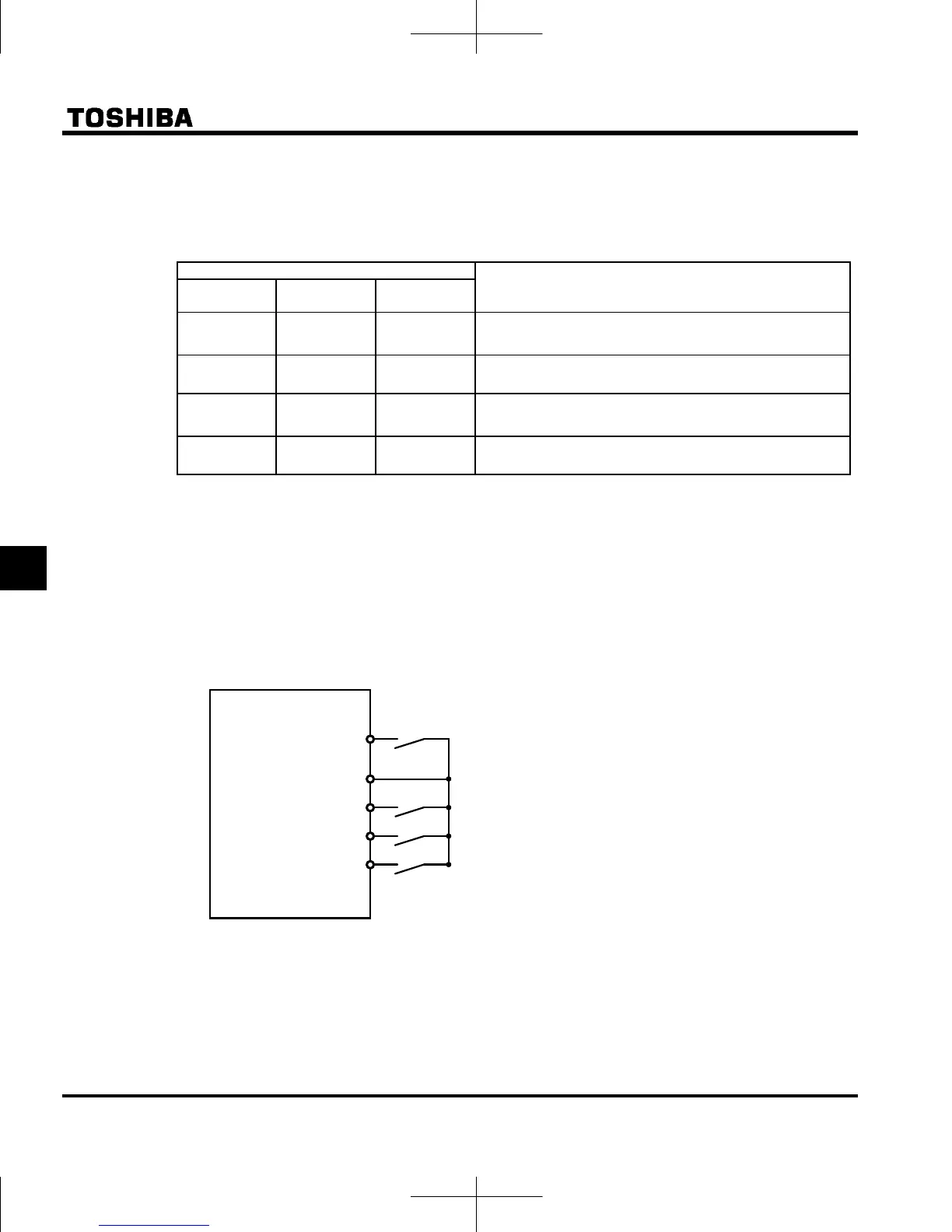

 Setting of switching terminals
To switch to motor 2, assign the following functions to a terminal not being used. It is also possible to switch
to acceleration/deceleration 2 (AD2). Refer to section 6.15.1 for details.
It is possible to set 3 functions for terminal F and R, and 2 functions for terminal S1 and S2.
Input terminal function number
Parameters changed from applicable parameters and
default standards
24
AD2
28
VF2
32
OCS2
OFF OFF OFF
Standard default: , , , , , ,
, , 
ON OFF OFF
  、  、  
OFF ON OFF
  V/F constant ,   ,   ,
  ,   
OFF OFF ON
  
Note 1: Each of the following numbers (25, 29, 33) are reverse signals.
Note 2: pt and "V/F constant" cannot be switched while running. Stop the motor before switching.
After the change, please drive after 0.2 seconds or more.
vl and f170, vlv and f171, vb and f172 can be switched while running.
Note 3: Integral value of motor electronic thermal is cleared, after the motor switching.
However, the setting that can memorize an integral value is possible.
 Example of setting a terminal for switching : Sink logic
F (F: Forward run)
CC
S2(VF2)
R(OCS2)
S1(AD2)
Forward run command
2nd acceleration/deceleration switch
2nd stall prevention operation switch
2nd V/F setting switch
