E6581611
A-3
1

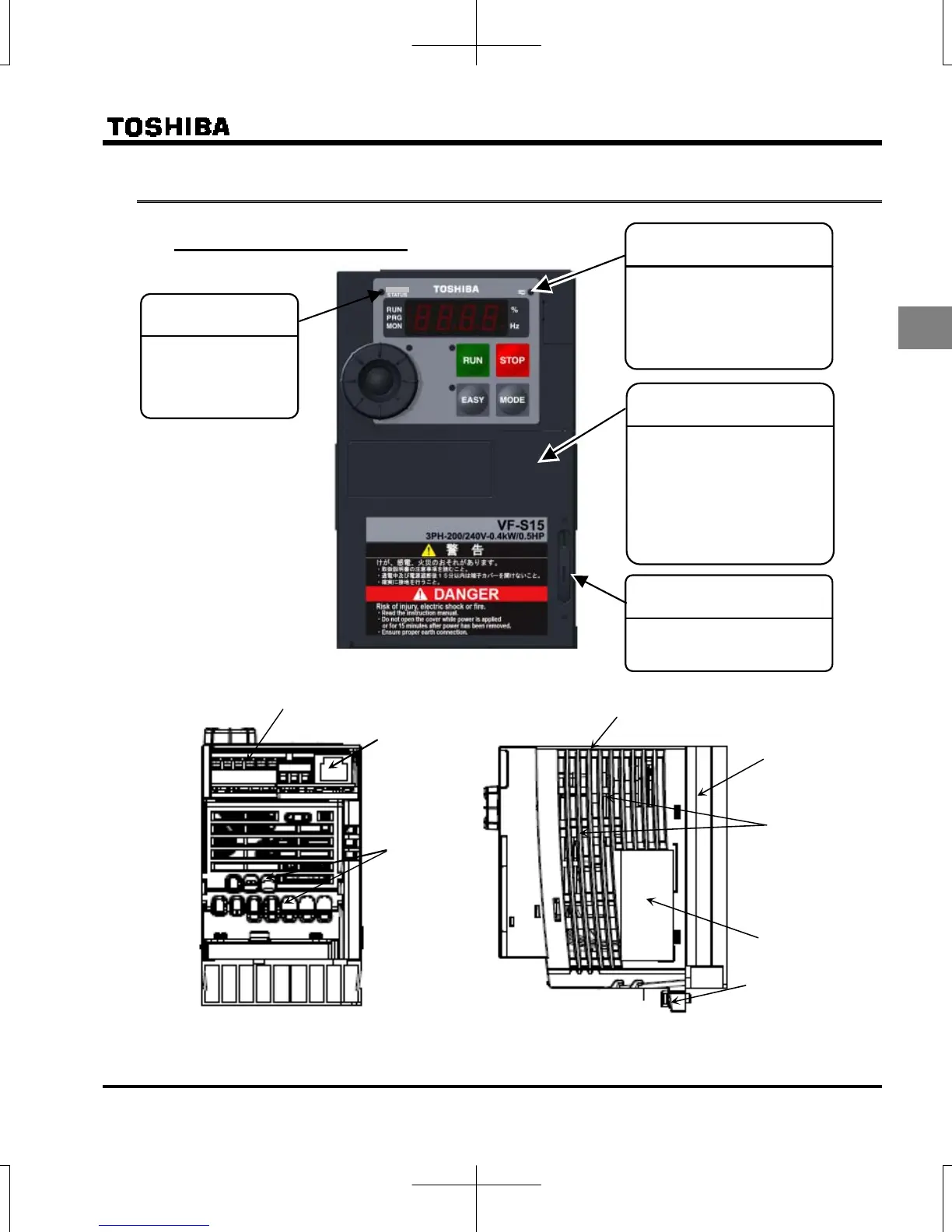

1.3 Names and functions
1.3.1 Outside view
Note 1) Remove the protective label as shown on the next page when installing the inverter side by side with other
inverters and using the inverter in locations with temperatures above 40°C.
RS485 connector
Protective label (Note 1)
Name plate
Ventilation
Cooling fin
[Front view]
Hole for main
circuit wiring
[Bottom view]
[Side view]
Charge lamp
Indicates there is a high
voltage still in the inverter.
Do not open the terminal
block cover when this lamp
is lit because it is dangerous.
Cover
This is the body and terminal
block cover.
Always close this cover
before operation to avoid
accidentally touching the
terminal block.
The serial number is recorded
on the back side.
Door lock
Slide the door lock to upside
for unlock.
Hole for control circuit wiring
Mounting part of
EMC plate
STATUS lamp
Lights and blinks when
using CANopen
®
communication option.
