E6581611
C-2
3

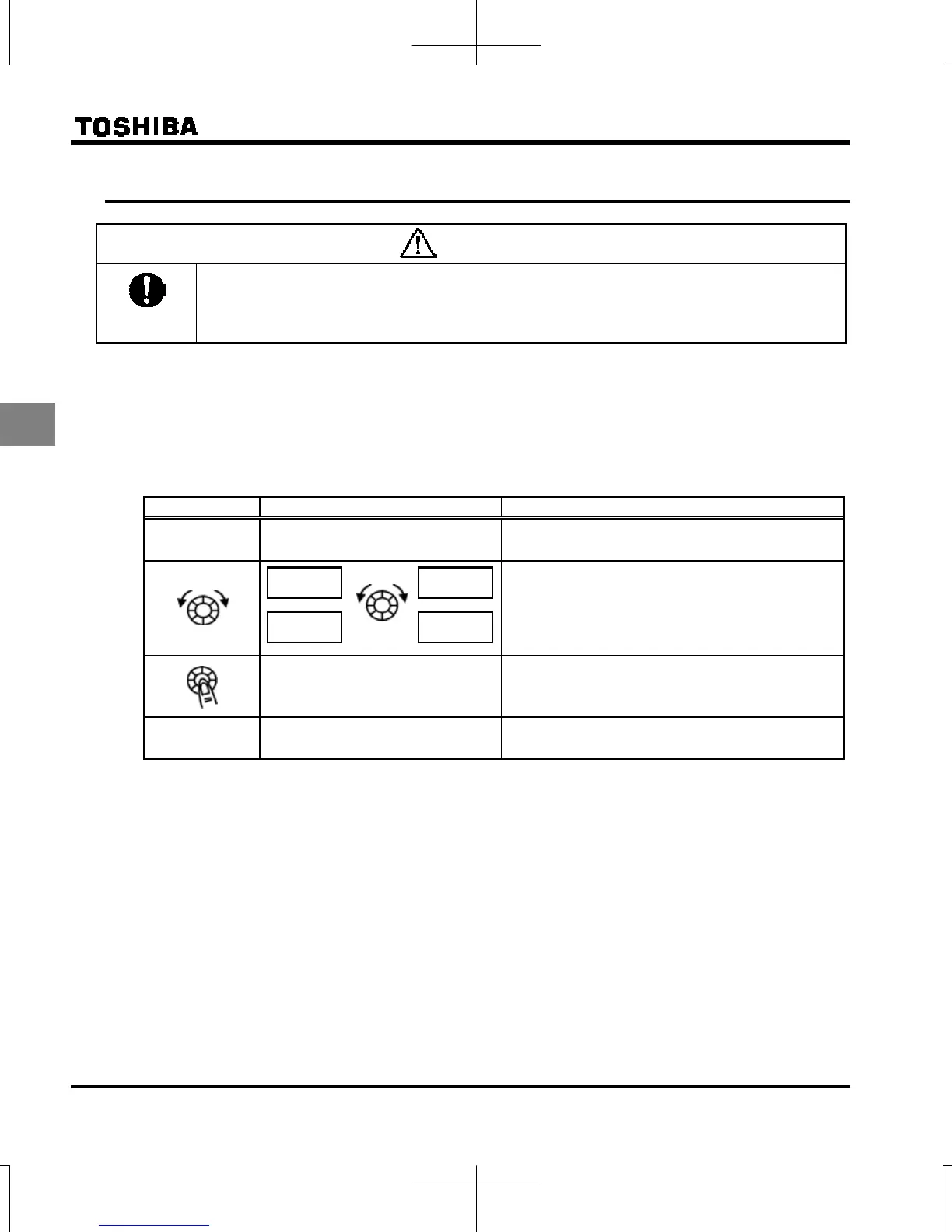

3.1 How to Set the Setup Menu
Warning
Mandatory
action
If incorrect setting, the drive will have some damage or unexpected movement. Be sure to set the
setup menu correctly.
Set the setup menu according to the base frequency and the base frequency voltage of the motor connected. (If you
are not sure which region code of setup menu should be selected and what values should be specified, consult your
Toshiba distributer.)
Each setup menu automatically sets all parameters relating to the base frequency and the base frequency voltage of
the motor connected. (See the table on the following page.)
Follow these steps to change the setup menu [Example: Selecting a region code to eu]
Panel operated LED display Operation
set
set is blinking
Turn the setting dial, and select region code "eu"
(Europe).
euin it
Press the center of the setting dial to determine the
region.
00
The operation frequency is displayed (Standby).
● If you want to change the selected region by the setup menu, the setup menu will appear by the following settings.
Please note, however, that all setting parameters return to status of default setting and the trip history data is
cleard.
• Set parameter set to "0".
• Set parameter typ to "13".
● The parameter settings in the table on the following page can be changed individually even after they are
selected in the setup menu.
eu
asia
jp
usa
