■ Armrest Structure
• An armrest is provided for alleviating the right arm fatigue during traveling and material handling lever
operation.
• The arm pad to be in contact with the arm and palm are made of soft urethane foam to fit the arm and
palm softly.
• The armrest is fixed on the battery hood to be independent from seat sliding operation. A tall operator
with long arms and legs can obtain the best operating position by sliding the seat backward, and an
operator with short arms and legs by sliding the seat forward.
• The armrest height can be adjusted. Loosen the armrest fixing knob, set the armrest at the desired
height and tighten the knob again.
• Every operator can select the best position for lever operation.

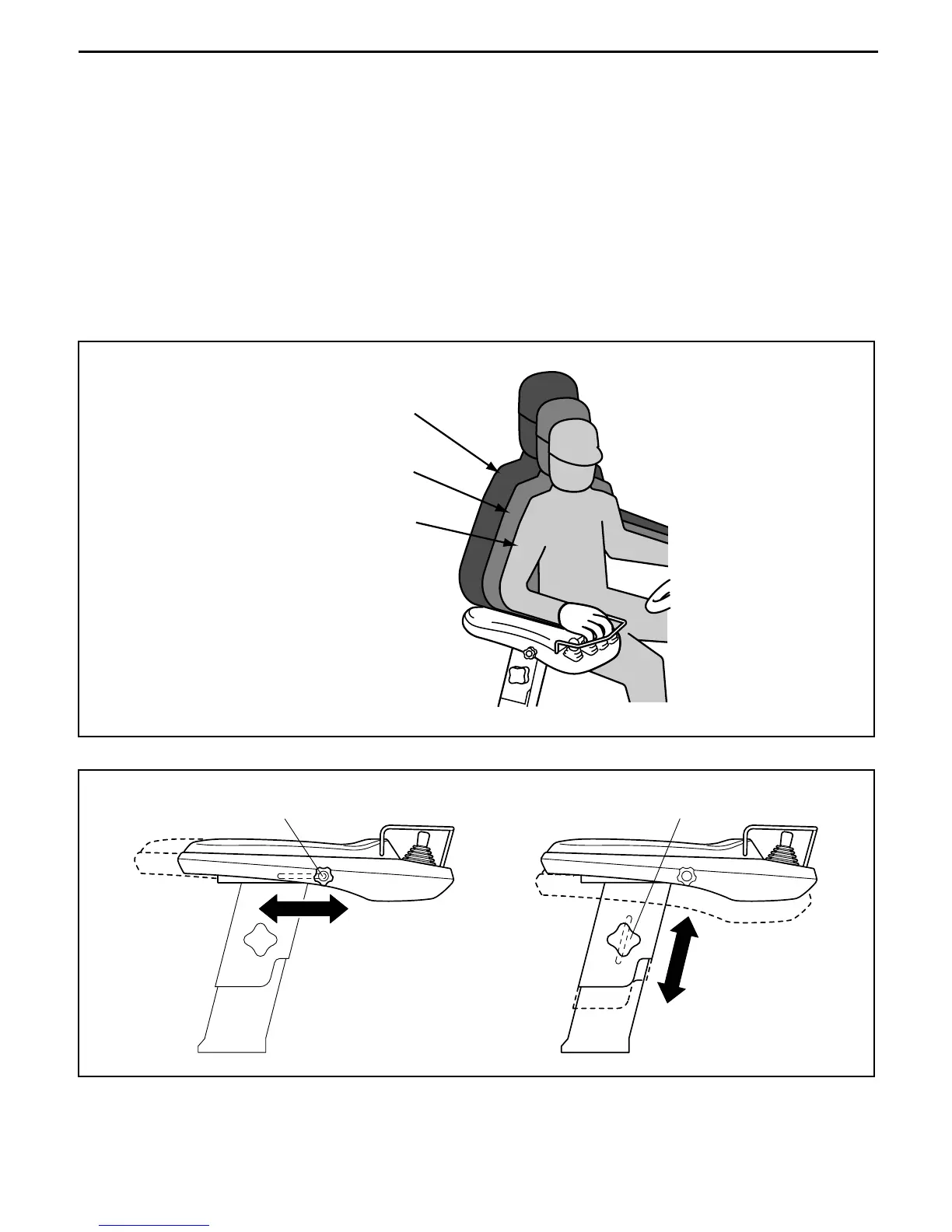

Driver’s position
Armrest fixing knob
Large operator
Medium operator
Small operator
Front-to-rear adjusting knob Height adjusting knob
