NAMES OF PARTS

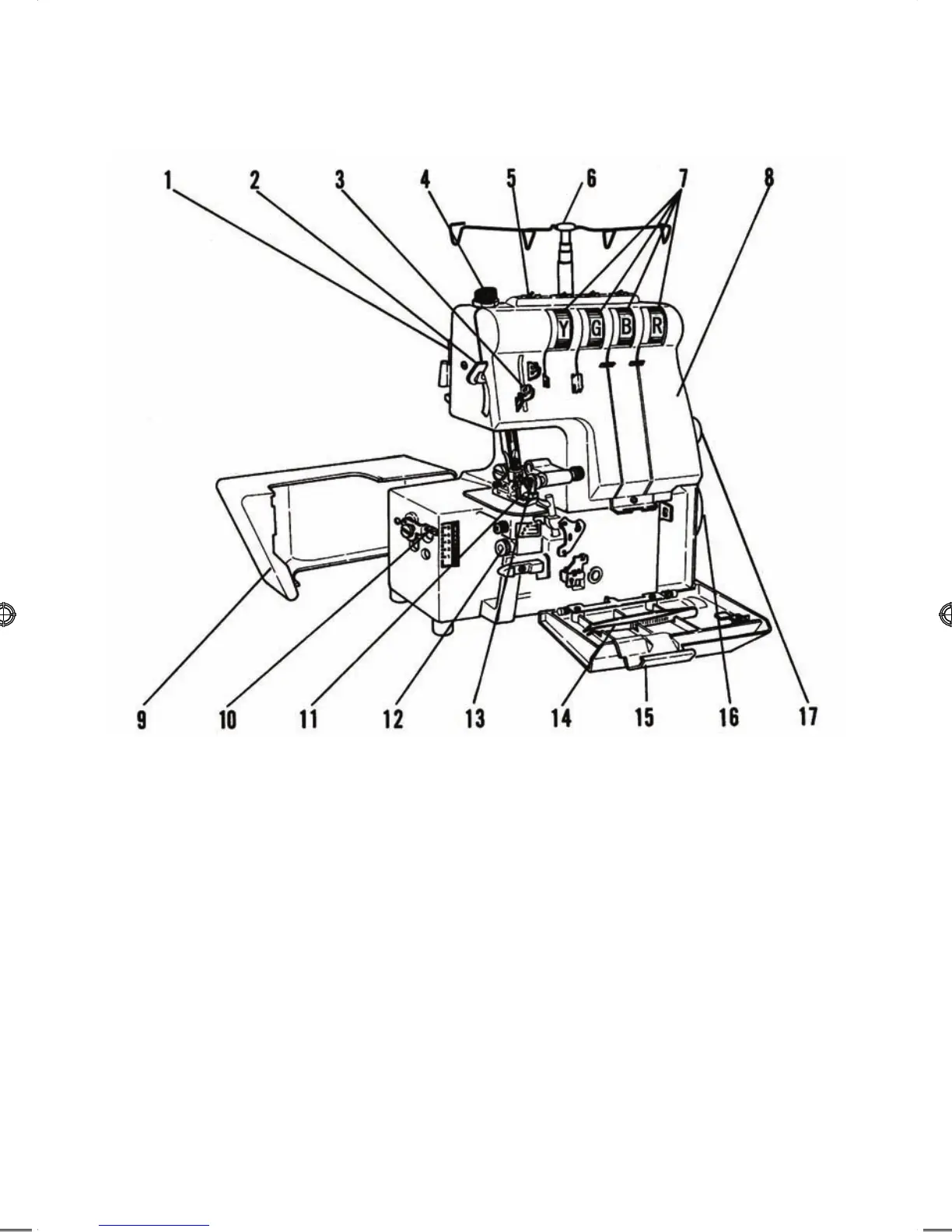

2. NAMES OF PARTS
1. Spool pin 8. Front panel
2. Presser foot lever 9. Side cover
3. Take-up lever 10. Stitch length adjusting lever
4. Pressure adjusting dial 11. Presser foot
5. Thread tension guide 12. Stitch width adjusting dial
6. Telescopic thread stand 13. Upper cutter
7. Y Left needle thread tension dial 14. Tweezers (Accessories found in the carton )
G Right needle thread tension dial 15. Front cover
B Upper looper thread tension dial 16. Hand wheel (Right side of machine)
R Lower looper thread tension dial 17. Differential feed adjusting dial
