TD-8840T ADSL2+ Modem Router User Guide
6
Chapter 2. Connecting the Modem Router
2.1 Installation Environment
¾ The Product should not be located where it will be exposed to moisture or excessive heat.
¾ Place the Router in a location where it can be connected to the various devices as well as to a
power source.
¾ Make sure the cables and power cord are placed safely out of the way so they do not create a
tripping hazard.
¾ The Router can be placed on a shelf or desktop.
¾ Keep away from the strong electromagnetic radiation and the device of electromagnetic
sensitive.

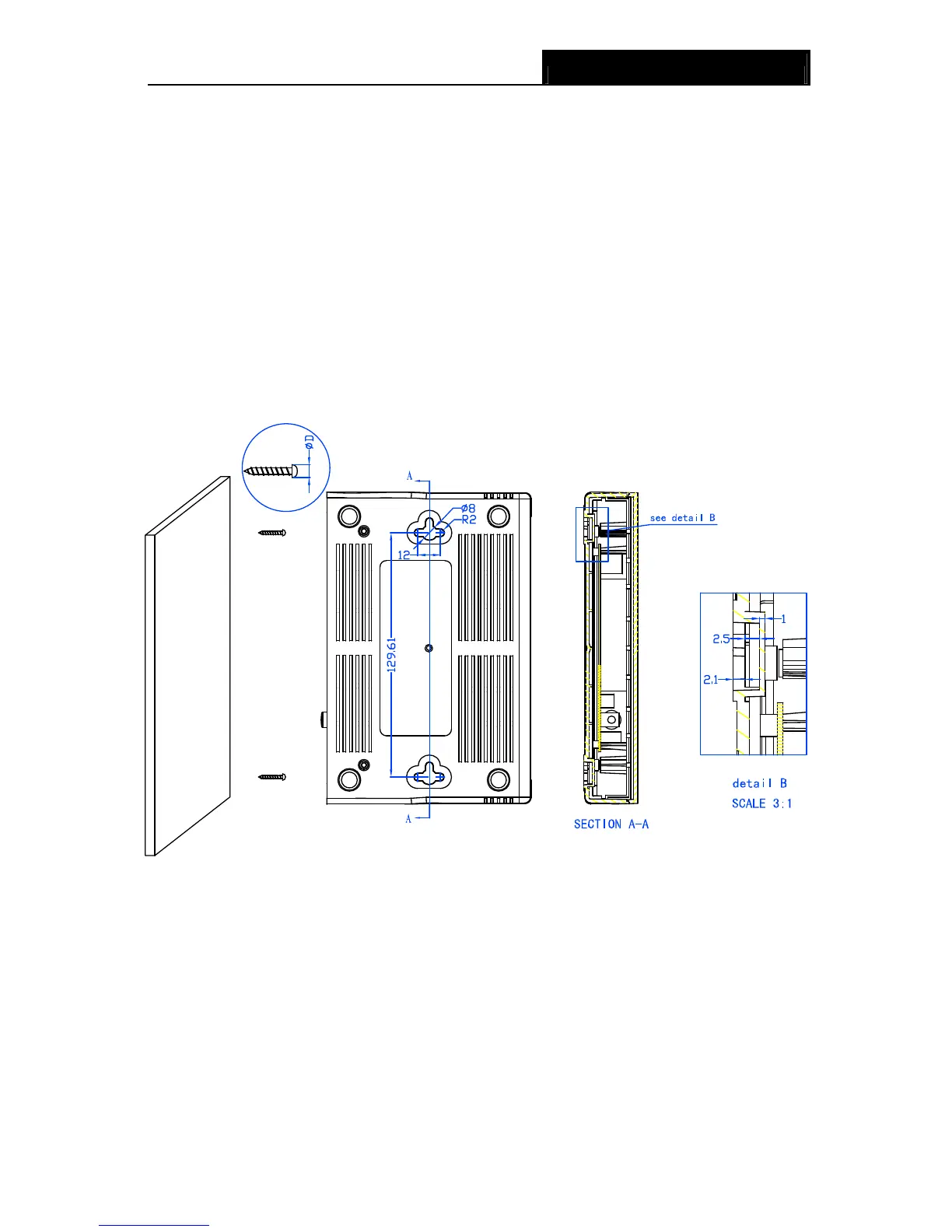

Figure 2-1
)
Note:
The diameter of the screw, 2.0mm<D<8.0mm, and the distance of two screws is 129.61mm. The
screw that project from the wall need around 4mm based, and the length of the screw need to be
at least 20mm to withstand the weight of the product.
