TP-Link TL-R470T+ User Manual

-98-
The first entry in Figure 4-58 indicates that: The hosts with IP address in subnet of 192.168.2.0/24 are
allowed to access the router and this entry is activated.
4.8.2 Management
4.8.2.1 Factory Defaults
Choose the menu Maintenance→Management→Factory Defaults to load the following page.

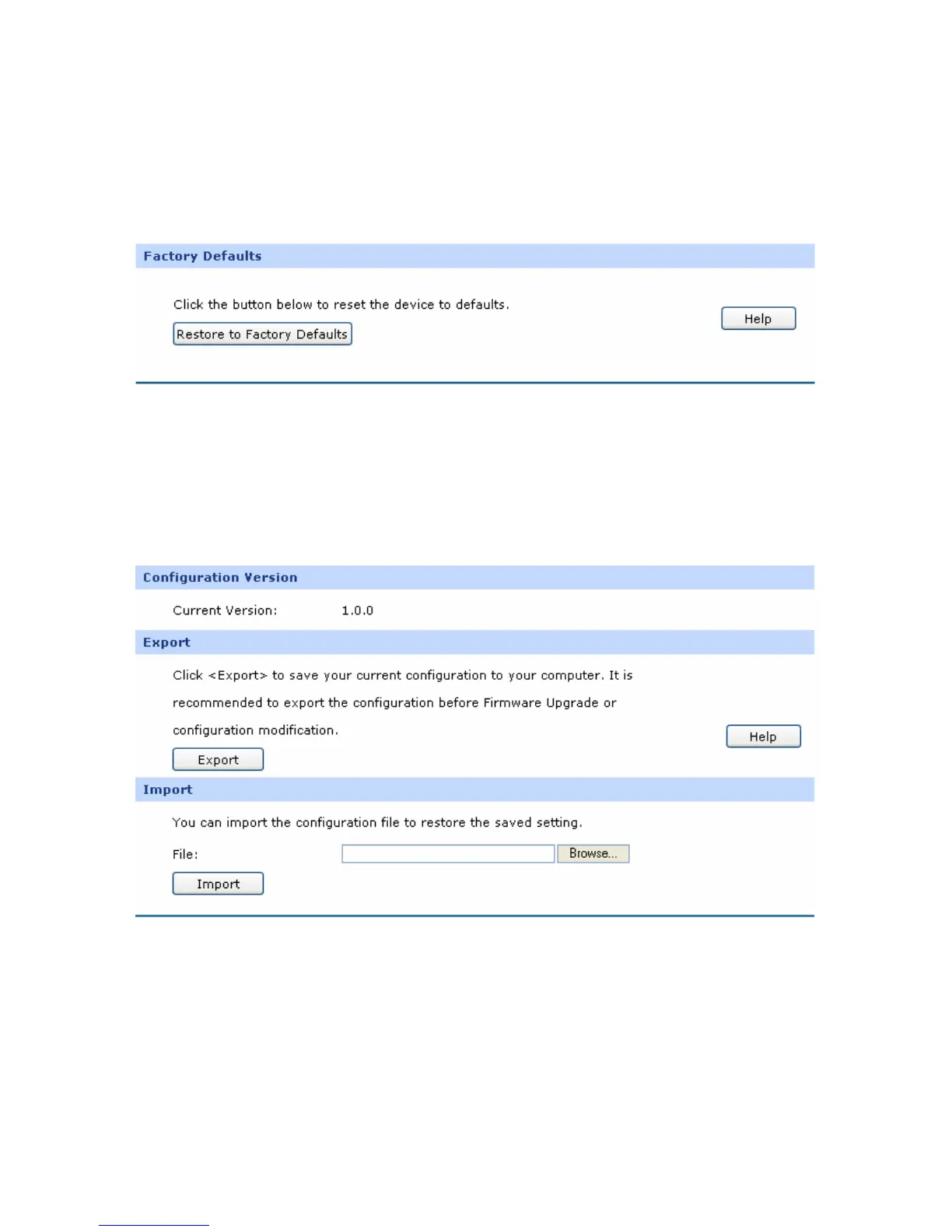

Figure 4-59 Factory Defaults
Click the <Restore to Factory Defaults> button to reset all configuration settings to their default values.
The default IP address is 192.168.0.1; the default login user name and password are both admin.
4.8.2.2 Export and Import
Choose the menu Maintenance→Management→Export and Import to load the following page.
Figure 4-60 Export and Import
The following items are displayed on this screen:
 Configuration Version
Displays the current Configuration version of the router.
 Export
Click the <Export> button to save the current configuration as a file to your computer. You are
suggested to take this measure before upgrading or modifying the configuration.

TP-Link TL-R470T+ Specifications

General

Full duplex	No
Static route	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Concurrent connections	10000
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Ethernet LAN (RJ-45) ports	5
VPN support	PPTP/L2TP/IP Sec
Security algorithms	HTTPS
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	1.56 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Certification	CE, FCC, RoHS
Internal memory	64 MB
Internal memory type	DRAM
Mac operating systems supported	macOS
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Product color	Black
LED indicators	LAN, Power, System, WAN, WLAN
Package depth	254 mm
Package width	190 mm
Package height	60 mm
Package weight	630 g
Cables included	AC, LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	126 mm
Width	209 mm
Height	26 mm
