TP-Link TL-R470T+ User Manual

-73-
 List of Rules
You can view the information of the entries and edit them by the Action buttons.
4.6.4 Access Control
4.6.4.1 URL Filtering
URL (Uniform Resource Locator) specifies where an identified resource is available and the
mechanism for retrieving it. URL Filter functions to filter the Internet URL address, so as to provide a
convenient way for controlling the access to Internet from LAN hosts.
Choose the menu Firewall→Access Control→URL Filtering to load the following page.

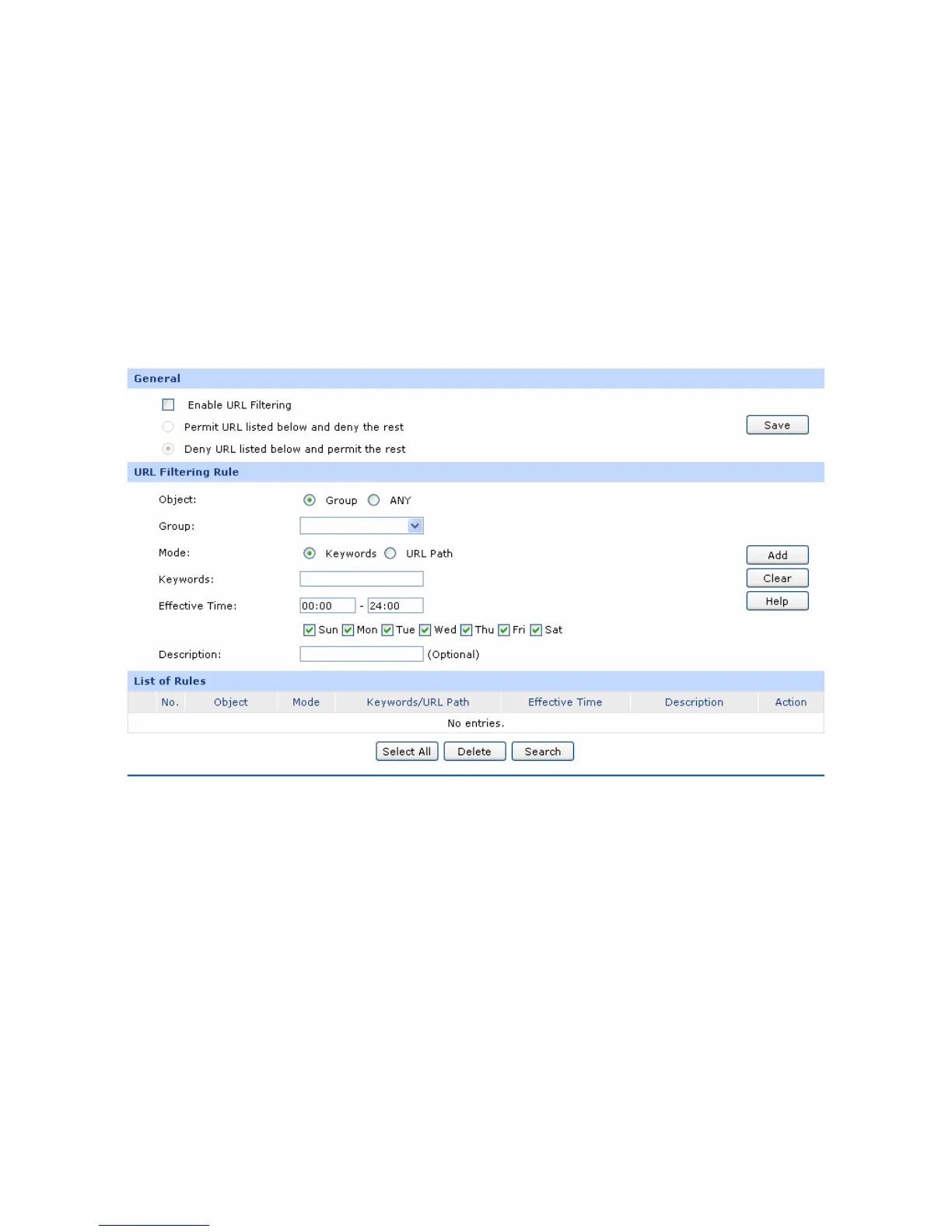

Figure 4-41 URL Filtering
The following items are displayed on this screen:
 General
To control the access to Internet for hosts in your private network, you are recommended to
check the box before Enable URL Filtering and select a filtering rule based on the actual
situation.

TP-Link TL-R470T+ Specifications

General

Full duplex	No
Static route	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Concurrent connections	10000
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Ethernet LAN (RJ-45) ports	5
VPN support	PPTP/L2TP/IP Sec
Security algorithms	HTTPS
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	1.56 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Certification	CE, FCC, RoHS
Internal memory	64 MB
Internal memory type	DRAM
Mac operating systems supported	macOS
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Product color	Black
LED indicators	LAN, Power, System, WAN, WLAN
Package depth	254 mm
Package width	190 mm
Package height	60 mm
Package weight	630 g
Cables included	AC, LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	126 mm
Width	209 mm
Height	26 mm
