TP-Link TL-R470T+ User Manual

-56-
 Interface Bandwidth
Interface:
Displays the current enabled WAN port(s). The Total bandwidth is equal to
the sum of bandwidth of the enabled WAN ports.
Upstream
Bandwidth:
Displays the bandwidth of each WAN port for transmitting data. The
Upstream Bandwidth of WAN port can be configured on WAN page.
Downstream
Bandwidth:
Displays the bandwidth of each WAN port for receiving data. The
Downstream Bandwidth of WAN port can be configured on WAN page.
Note:
● The Upstream/Downstream Bandwidth of WAN port you set must not be more than the bandwidth
provided by ISP. Otherwise the Traffic Control will be invalid.
● If there are data flowing into the router from interface A and out from interface B while the
downstream bandwidth of A is different from the upstream bandwidth of B, then the smaller one
should be considered as the effective bandwidth, and vise versa.
● Click the <View IP Traffic Statistics> button to jump to IP Traffic Statistics page.
4.5.2.2 Bandwidth Control
On this page, you can configure the Bandwidth Control function.
Choose the menu Advanced→Traffic Control→Bandwidth Control to load the following page.

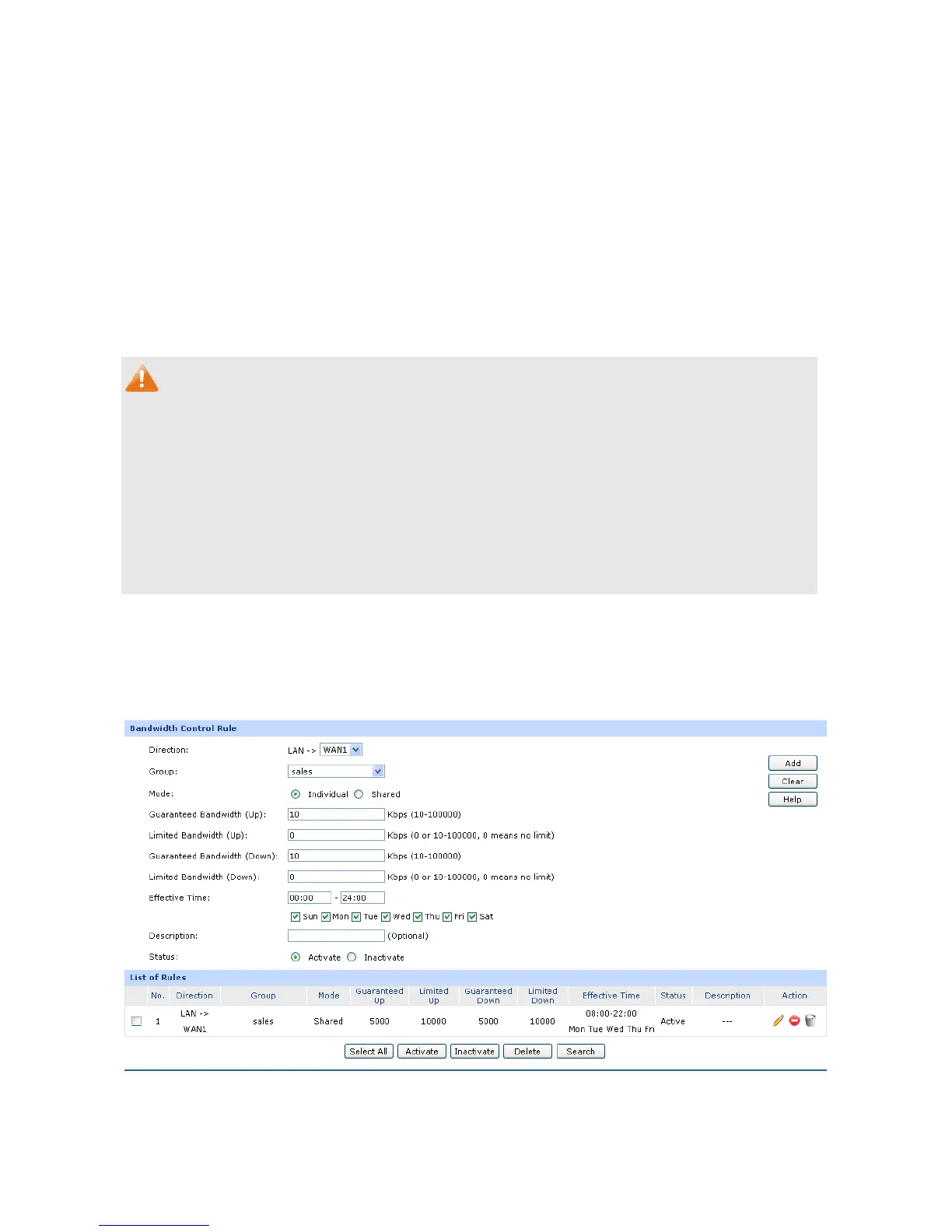

Figure 4-28 Bandwidth Control
The following items are displayed on this screen:

TP-Link TL-R470T+ Specifications

General

Full duplex	No
Static route	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Concurrent connections	10000
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Ethernet LAN (RJ-45) ports	5
VPN support	PPTP/L2TP/IP Sec
Security algorithms	HTTPS
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	1.56 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Certification	CE, FCC, RoHS
Internal memory	64 MB
Internal memory type	DRAM
Mac operating systems supported	macOS
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Product color	Black
LED indicators	LAN, Power, System, WAN, WLAN
Package depth	254 mm
Package width	190 mm
Package height	60 mm
Package weight	630 g
Cables included	AC, LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	126 mm
Width	209 mm
Height	26 mm
