TP-Link TL-R470T+ User Manual

-58-
Note:
● The premise for single rule taking effect is that the bandwidth of the interface for this rule is
sufficient and not used up.
● It is impossible to satisfy all the guaranteed bandwidth if the total guaranteed bandwidth specified
by all Bandwidth Control rules for certain interface exceeds the physical bandwidth of this
interface.
4.5.3 Session Limit
The amount of TCP and UDP sessions supported by the router is finite. If there are some local hosts
transmitting too many TCP and UDP sessions to the public network, the communication quality of the
other local hosts will be affected, thus it is necessary to limit the sessions of those hosts.
4.5.3.1 Session Limit
On this page, you can configure the session limit to specified PCs.
Choose the menu Advanced→Session Limit→Session Limit to load the following page.

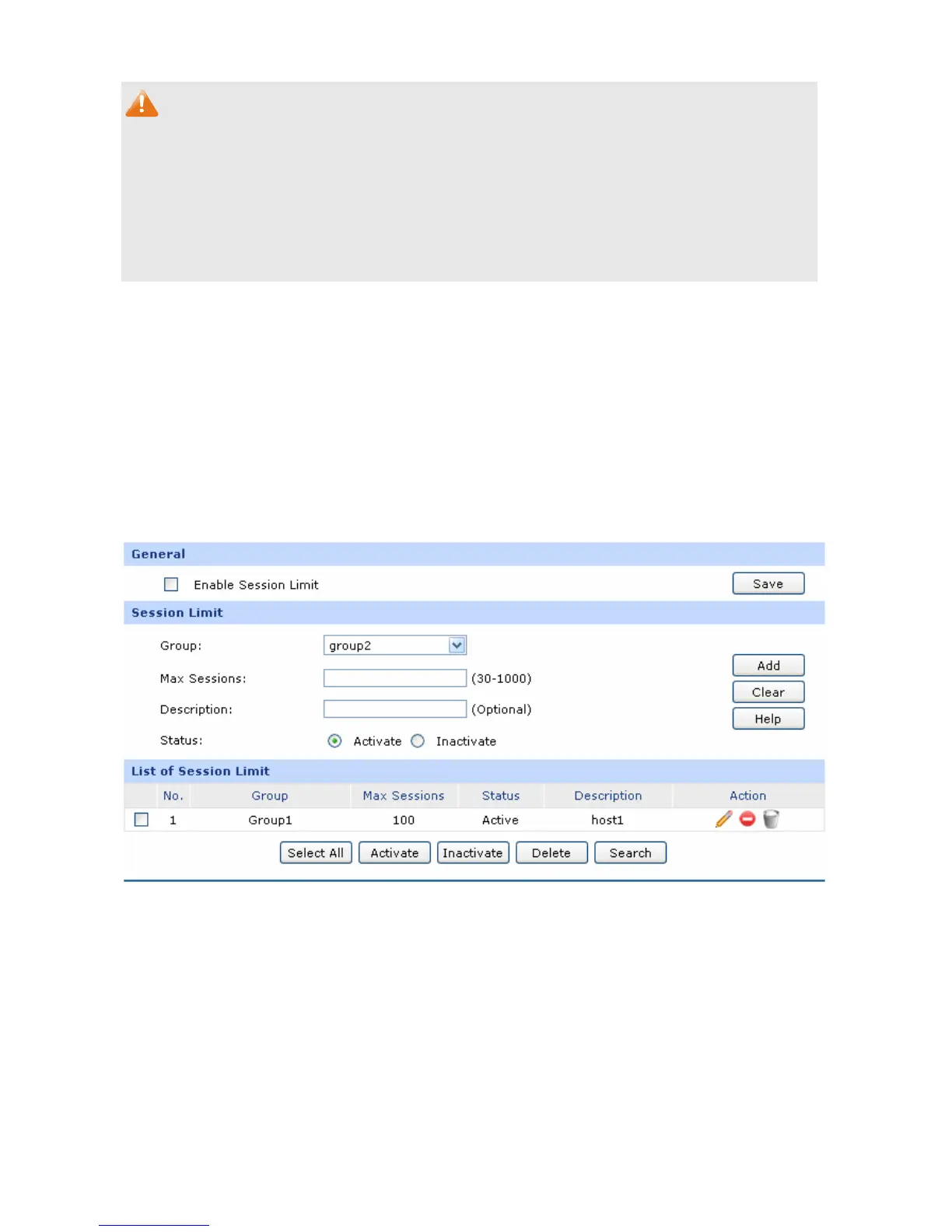

Figure 4-29 Session Limit
The following items are displayed on this screen:
 General
Enable Session
Limit:
Check here to enable Session Limit, otherwise all the Session Limit
entries will be disabled.

TP-Link TL-R470T+ Specifications

General

Full duplex	No
Static route	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Concurrent connections	10000
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Ethernet LAN (RJ-45) ports	5
VPN support	PPTP/L2TP/IP Sec
Security algorithms	HTTPS
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	1.56 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Certification	CE, FCC, RoHS
Internal memory	64 MB
Internal memory type	DRAM
Mac operating systems supported	macOS
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Product color	Black
LED indicators	LAN, Power, System, WAN, WLAN
Package depth	254 mm
Package width	190 mm
Package height	60 mm
Package weight	630 g
Cables included	AC, LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	126 mm
Width	209 mm
Height	26 mm
