TP-Link TL-SC3130G User Manual

19

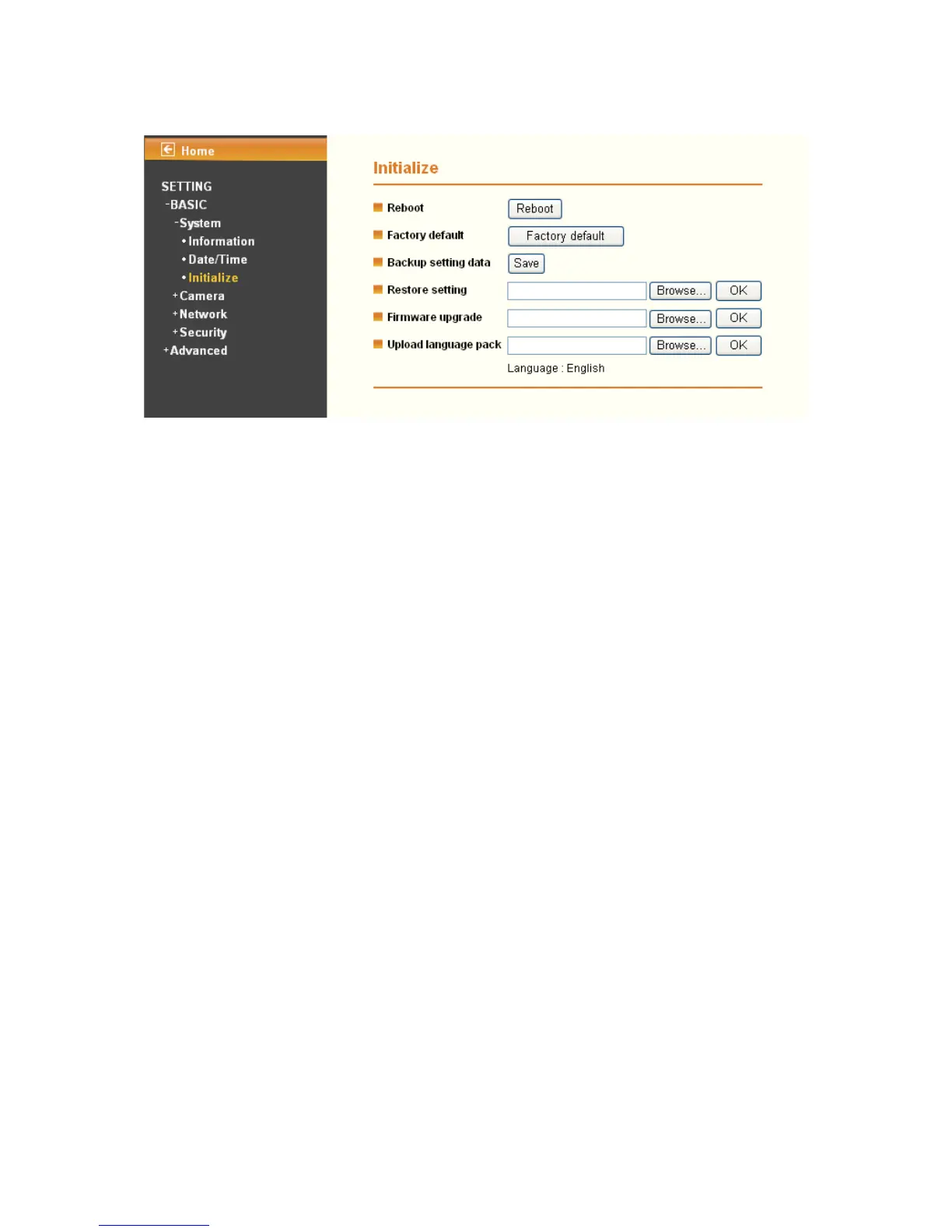

6.1.3 Initialize
¾ Reboot: Click this button to reboot this IP Camera. A confirmation dialogue will appear and
then click OK to process. It takes two minutes to reboot this IP Camera.
¾ Factory Default: Click this button to reset this IP Camera to the factory default settings. A
confirmation dialogue will appear and then click OK to process. The network LED indicator on
the IP Camera will start to blink. This IP Camera will reboot automatically after the restoring
has been finished
. Don't turn off this IP Camera during this process.
¾ Backup Setting: You can save configuration setting data of this IP Camera into a file. Click
Save and follow the instructions on the browser to save this setting data file to specified
location.
¾ Restore Setting: Download the saved setting data of this IP Camera. Click Browse… and
select the saved file. Click OK and this IP Camera is adjusted according to the loaded data
and then restarted.
¾ Firmware Upgrade: Upgrade the device software. Click Browse… and select the file for
upgrading. A confirmation dialogue will appear. Click OK to start. This IP Camera will reboot
after upgrading has been finished.
)
Note:
Use only upgrade files that are special for this IP Camera. Otherwise problems may occur. Don't
turn off the IP Camera power or disconnect the network until the upgrading is completed.
¾ Upload Language Pack: Upgrade the device language pack. Click Browse… and select
the file for upgrading. A confirmation dialogue will appear. Click OK to start upgrading. The
upgrade is applied immediately. The default language is “English.”
6.2 Camera
Click Camera to display the submenus including General, MPEG4 and MJPEG.

TP-Link TL-SC3130G Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	M-JPEG, MPEG4
Analog signal format system	NTSC, PAL
Digital zoom	10 x
Optical zoom	- x
Focal length range	4 mm
Audio system	2-way
Built-in microphone	Yes
Dimensions (WxDxH)	58 x 31 x 96 mm
Networking features	Fast Ethernet
Compatible operating systems	Windows 98, ME, 2000, 2003, XP, Vista Mac OS Leapord 10.5
Minimum RAM	512 MB
Minimum processor	Pentium4 1.8GHz
Minimum graphics card memory	64 MB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
Built-in HDD	No
Form factor	Covert
Product color	Black, White
Certification	CE, FCC
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	802.11b, 802.11g
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Sustainability certificates	RoHS
