TP-Link TL-SC3130G User Manual

36

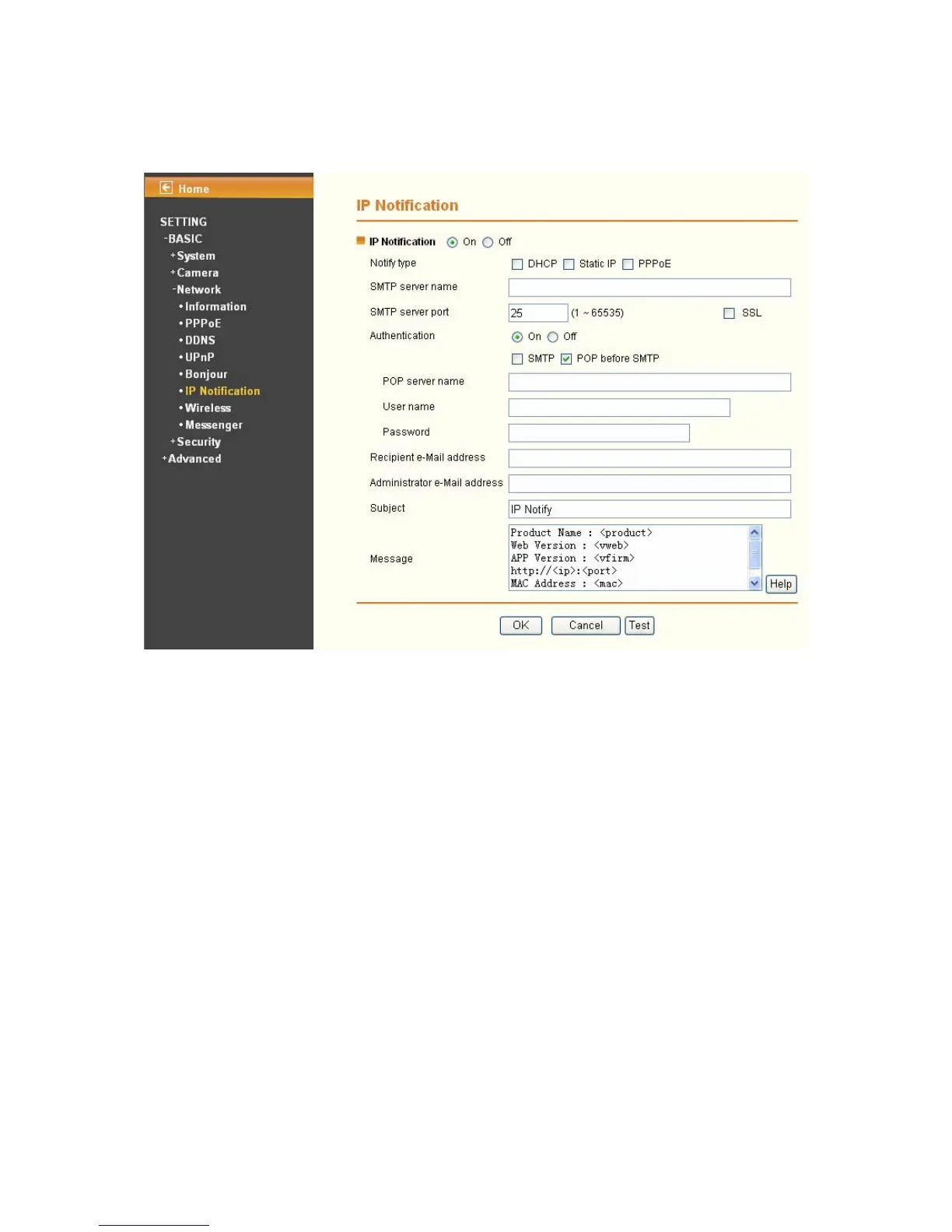

z POP before SMTP: Select this if POP before SMTP authentication is necessary when an
e-mail is sent. If this option is selected, the IP Notification page will be different as
following figure shown.
z POP server name: It is necessary when the POP before SMTP is selected in
Authentication. Type the POP (receiving mail) server name up to 64 characters, or type the
IP address of the POP server. This setting is necessary when the SMTP server which
sends e-mails performs authentication using the POP user account.
z User name, Password: Type the username and password of the user who has the mail
account. This setting is necessary when the SMTP server which sends e-mails performs
authentication.
¾ Recipient e-mail address: Type the recipient e-Mail address up to 64 characters. You can
specify up to three recipient E-mail addresses.
¾ Administrator e-mail address: Type the Administrator e-Mail address up to 64 characters.
This address is used for reply mail and sending system messages from the SMTP server.
¾ Subject: Type the subject/title of the e-Mail up to 64 characters. With respect to mail which is
sent according to the IP notification.
¾ Message: Type the text of the E-mail up to 384 characters. Default value provides network
information including IP, Port, MAC, Model, Firmware Version and Web Version.
6.3.7 Wireless
Choose Network → Wireless, you can configure the wireless function for the camera in the figure
below.

TP-Link TL-SC3130G Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	M-JPEG, MPEG4
Analog signal format system	NTSC, PAL
Digital zoom	10 x
Optical zoom	- x
Focal length range	4 mm
Audio system	2-way
Built-in microphone	Yes
Dimensions (WxDxH)	58 x 31 x 96 mm
Networking features	Fast Ethernet
Compatible operating systems	Windows 98, ME, 2000, 2003, XP, Vista Mac OS Leapord 10.5
Minimum RAM	512 MB
Minimum processor	Pentium4 1.8GHz
Minimum graphics card memory	64 MB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
Built-in HDD	No
Form factor	Covert
Product color	Black, White
Certification	CE, FCC
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	802.11b, 802.11g
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Sustainability certificates	RoHS
