TP-Link TL-SC3130G User Manual

24

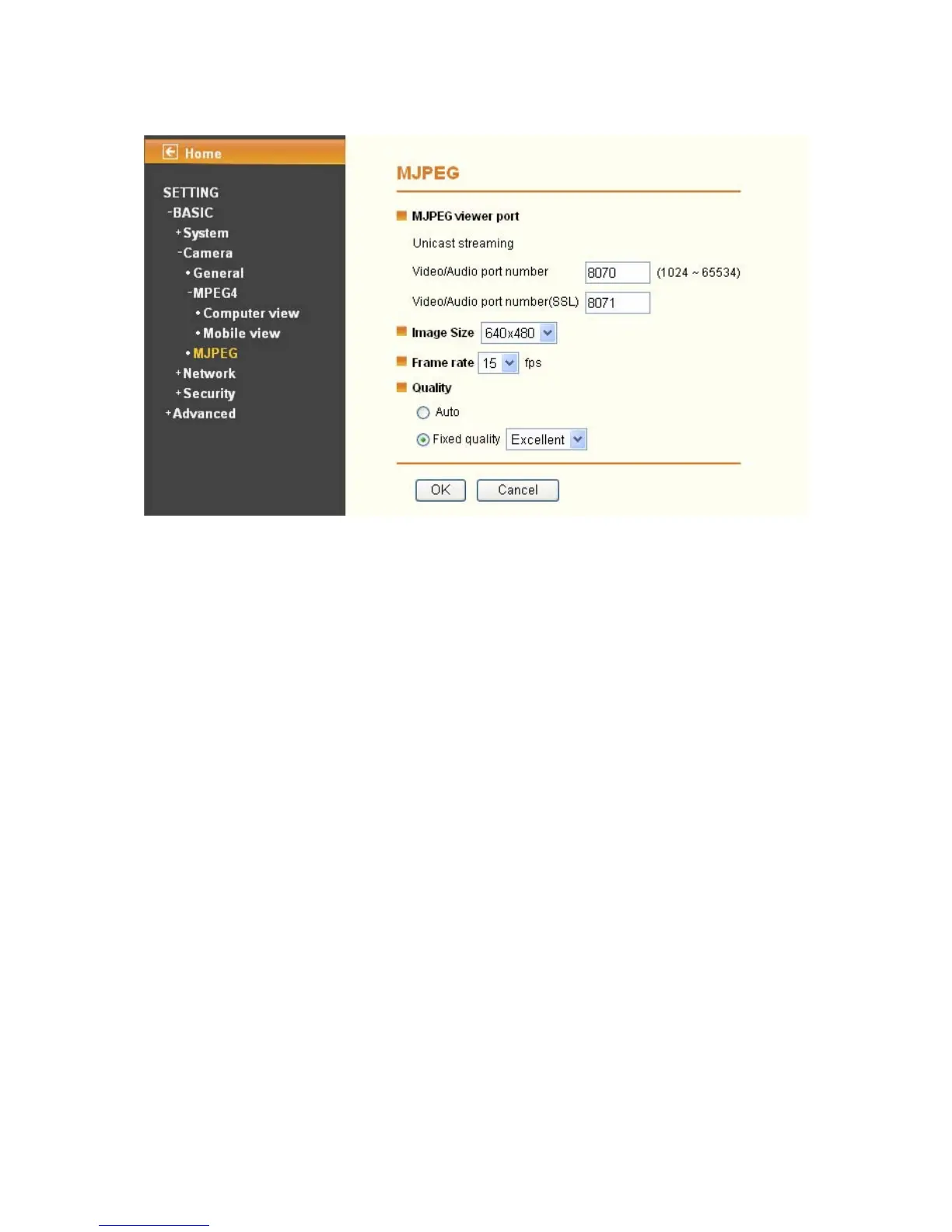

6.2.3 MJPEG
¾ MJPEG Viewer Port ( If RTSP is off, please check “SETTING → BASIC → Camera →
General”)
z Unicast Streaming Video / Audio Port Number: Specify the transmission port number of
the video data (the default value is 8070). You can specify an even number from 1024 to
65534. If you change the setting of Video / Audio Port Number, the setting of Video / Audio
Port Number (SSL) will change automatically.
¾ Image Size: Specify the image size when the network camera transmits. You can choose
among 640 x 480, 320 x 240, and 160 x 120.
¾ Frame Rate: Set the frame rate of the MJPEG image. You can choose values from 5, 10, 15
fps. The unit “fps” stands for “frames per second”.
¾ Quality:
z Auto: The quality will be automatically decided.
z Fixed Quality: You can select the value of quality among Medium, Standard, Good,
Delicate and Excellent.
6.3 Network
Click Network to display the submenus including Information, PPPoE, DDNS, UPnP, Bonjour,
IP Notification.

TP-Link TL-SC3130G Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	M-JPEG, MPEG4
Analog signal format system	NTSC, PAL
Digital zoom	10 x
Optical zoom	- x
Focal length range	4 mm
Audio system	2-way
Built-in microphone	Yes
Dimensions (WxDxH)	58 x 31 x 96 mm
Networking features	Fast Ethernet
Compatible operating systems	Windows 98, ME, 2000, 2003, XP, Vista Mac OS Leapord 10.5
Minimum RAM	512 MB
Minimum processor	Pentium4 1.8GHz
Minimum graphics card memory	64 MB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
Built-in HDD	No
Form factor	Covert
Product color	Black, White
Certification	CE, FCC
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	802.11b, 802.11g
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Sustainability certificates	RoHS
