TP-Link TL-SC3130G User Manual

33
6.3.4 UPnP (Universal Plug and Play)

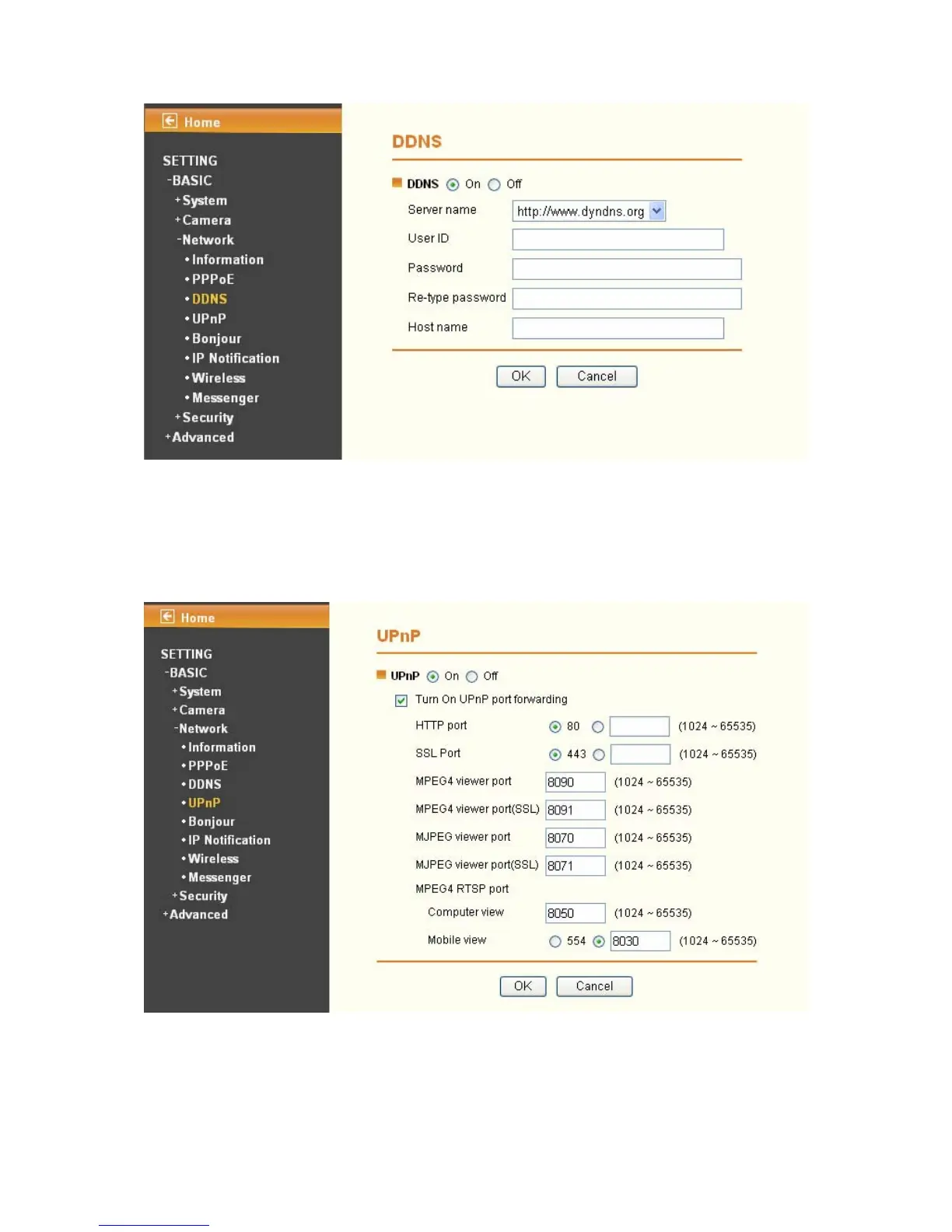

Choose menu “Network→UPnP”, you can view the information about UPnP (Universal Plug and
Play) in the screen as shown in the following figure. The UPnP feature allows the devices, such as
Internet computers, to access the local host resources or devices as needed. UPnP devices can
be automatically discovered by the UPnP service application on the LAN.
¾ HTTP port: Enter the HTTP port number and the default HTTP port is 80.
¾ SSL port: Enter the SSL port number and the default SSL port is 443.
¾ MPEG4 viewer port: Enter the MPEG4 viewer port number and the default MPEG4 viewer
port is 8090.

TP-Link TL-SC3130G Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	M-JPEG, MPEG4
Analog signal format system	NTSC, PAL
Digital zoom	10 x
Optical zoom	- x
Focal length range	4 mm
Audio system	2-way
Built-in microphone	Yes
Dimensions (WxDxH)	58 x 31 x 96 mm
Networking features	Fast Ethernet
Compatible operating systems	Windows 98, ME, 2000, 2003, XP, Vista Mac OS Leapord 10.5
Minimum RAM	512 MB
Minimum processor	Pentium4 1.8GHz
Minimum graphics card memory	64 MB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
Built-in HDD	No
Form factor	Covert
Product color	Black, White
Certification	CE, FCC
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	802.11b, 802.11g
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Sustainability certificates	RoHS
