Trane EXHF User Manual

WSHP-SVX01L-EN 11
Unit Dimensions and Weights
GEH and EXH Clearance Dimensions
Access to the unit for service purposes should be provided
at installation. All ½-5 tons and EXH070 configurations
(see Figure 1, p. 11) require an 18 in. (457 mm) surround
clearance from other mechanical and electrical equipment
(where shown) to enable panel removal from the unit for
service/maintenance ability. NEC requires 36 in. clearance
on the control panel side of the unit. Some local codes
require a greater service clearance than listed below.
Check all code requirements prior to unit installations.
Equipment containing a same-side supply/return
combination requires a 3 in. (229 mm) limitation on one
side. Access to the TXV may not be possible with this 3 in.
(229 mm) clearance. This configuration is typically applied
in a corridor installation, where space limitations force the
left or right side of the unit against a wall.
Service clearance dimensions for the GEH 6-15 tons
horizontal (see Figure 2, p. 11) includes a two side access
appropriate for control and blower motor/wheel access.
Some local codes require a greater service clearance than
listed below. Check all code requirements prior to unit
installations.

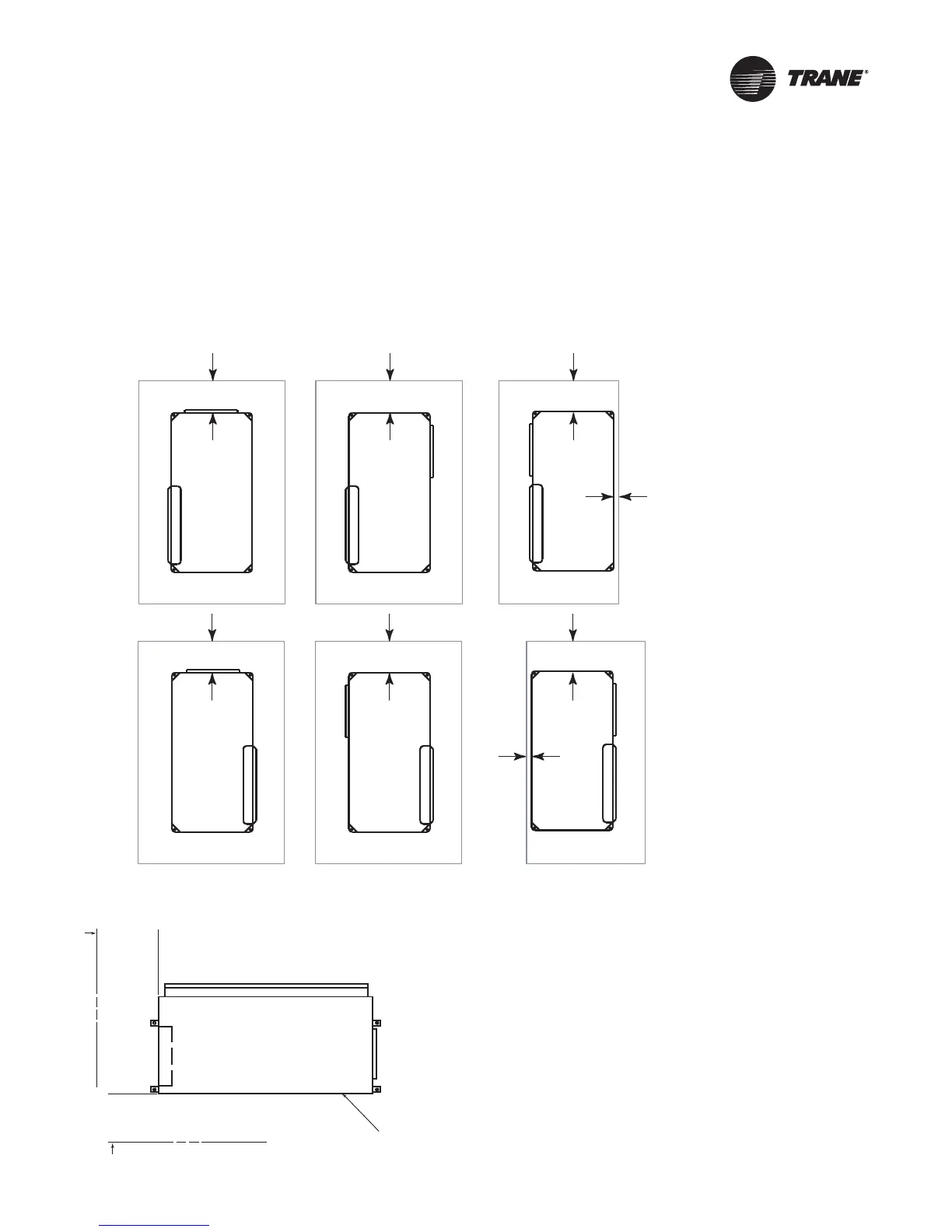

Figure 1. GEH ½–5 tons and EXH 1½–6 tons clearance
LEFT RETURN
BACK SUPPLY
UNIT FRONT
LEFT RETURN
RIGHT SUPPLY
LEFT RETURN
LEFT SUPPLY
UNIT FRONT UNIT FRONT
3"
(76)
18" (457)
(4-SIDES)
RIGHT RETURN
BACK SUPPLY
UNIT FRONT
RIGHT RETURN
LEFT SUPPLY
RIGHT RETURN
RIGHT SUPPLY
UNIT FRONT UNIT FRONT
3"
(76)
18" (457)
(4-SIDES)
18" (457)
(4-SIDES)
18" (457)
(4-SIDES)
18" (457)
(3-SIDES)
18" (457)
(3-SIDES)
Figure 2. GEH 6-15 tons clearance
TOP VIEW
36"
(914)
SERVICE
CLEARANCE
20"
(508)
SERVICE
CLEARANCE
BLOWER ACCESS
PANE L
CONTROL BOX
