Unit Dimensions and Weights
36 WSHP-SVX01L-EN

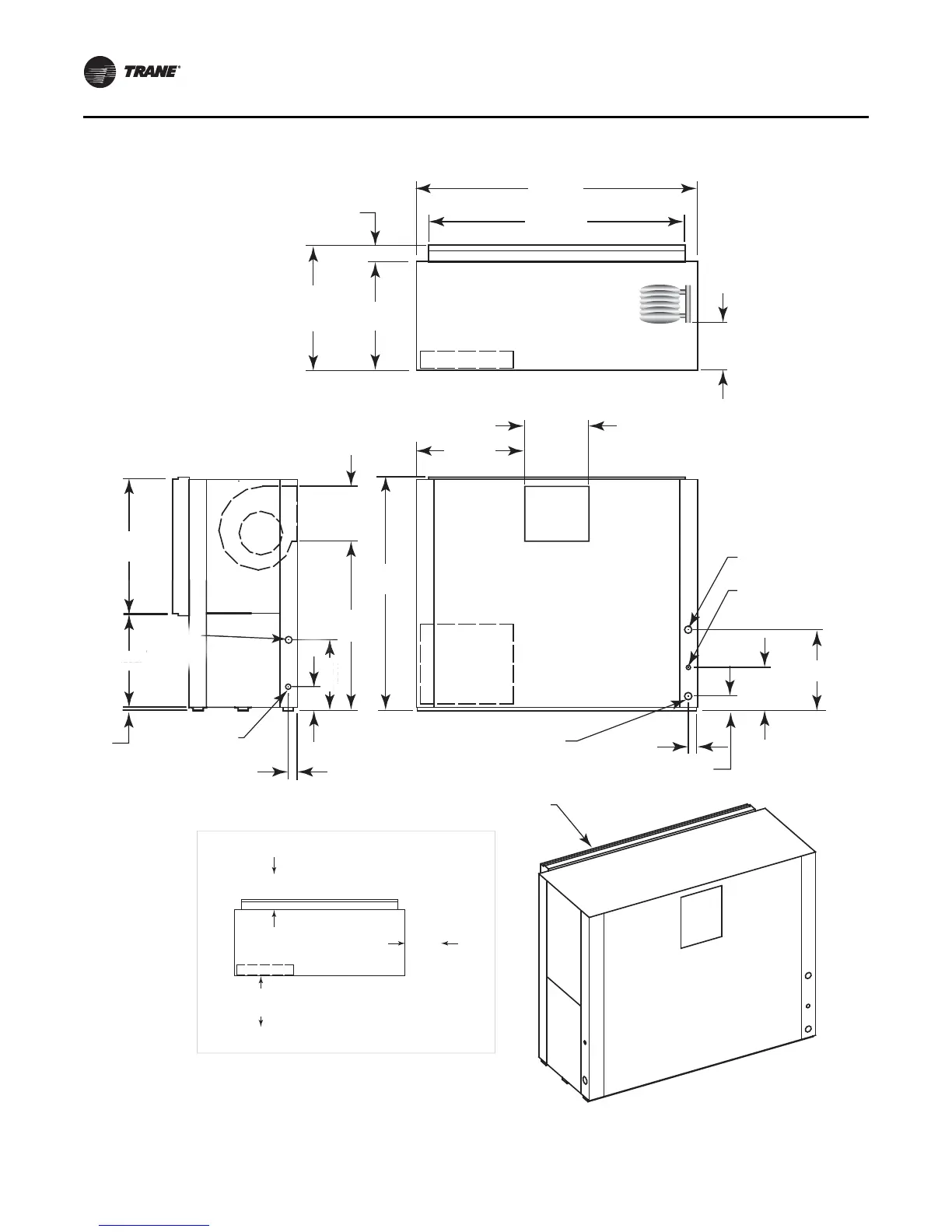

Figure 29. GEV 12½–15 tons (150–180) 60 Hz; GEV 10 and 12½ ton (120 and 150) 50 Hz—back return/front supply
(a)
(a)NEC requires that the GEV072-300 front return must be a non-ducted return.
RETURN AIR
OPENING
W.I. 1 1/2"
(38) NPTI
2 5/8"
(67)
4 1/4"
(108)
12 1/2"
(318)
10"
(254)
23 1/2
(597)
DRAIN 3/4"
(19) NPTI
W.O. 1 1/2"
(38) NPTI
38 7/8"
(987)
27 1/8"
(537)
67 5/8"
(1718)
31 1/2"
(800)
18 5/8"
(473)
1"
(25.4)
HIGH VOLTAGE
7/8" (22) O.D.
20 1/2"
(521)
20
2
1/2
"
(
521
)
6 7/8" (175)
2 3/8"
(60)
15 7/8"
(403)
49 1/8"
(1248)
74 1/2"
(1892)
81 5/8"
(2073)
31 1/2"
(800)
36 1/4"
(921)
4 3/4"
(121)
CONTROL
BOX ACCESS
TOP VIEW
FRONT VIEW
SIDE VIEW
27 1/8"
(537)
24 VOLT
1 1/8"
(29) O.D.
SERVICE CLEARANCE
CONTROL BOX
UNIT FRONT
NEC REQ.
36" (914)
C.B. TO WALL
CLEARANCE
MIN. SERVICE
CLEARANCE FOR
EITHER LEFT
OR RIGHT SIDE
IS 18" (457). FOR
FAN SHAFT REMOVAL,
A 22" (559) CLEARANCE
MUST BE PROVIDED
ON EITHER THE
LEFT OR RIGHT SIDE.
MIN. SERVICE ON BACK FOR
COMPRESSOR ACCESS IS 24".
