Unit Dimensions and Weights
14 WSHP-SVX01L-EN

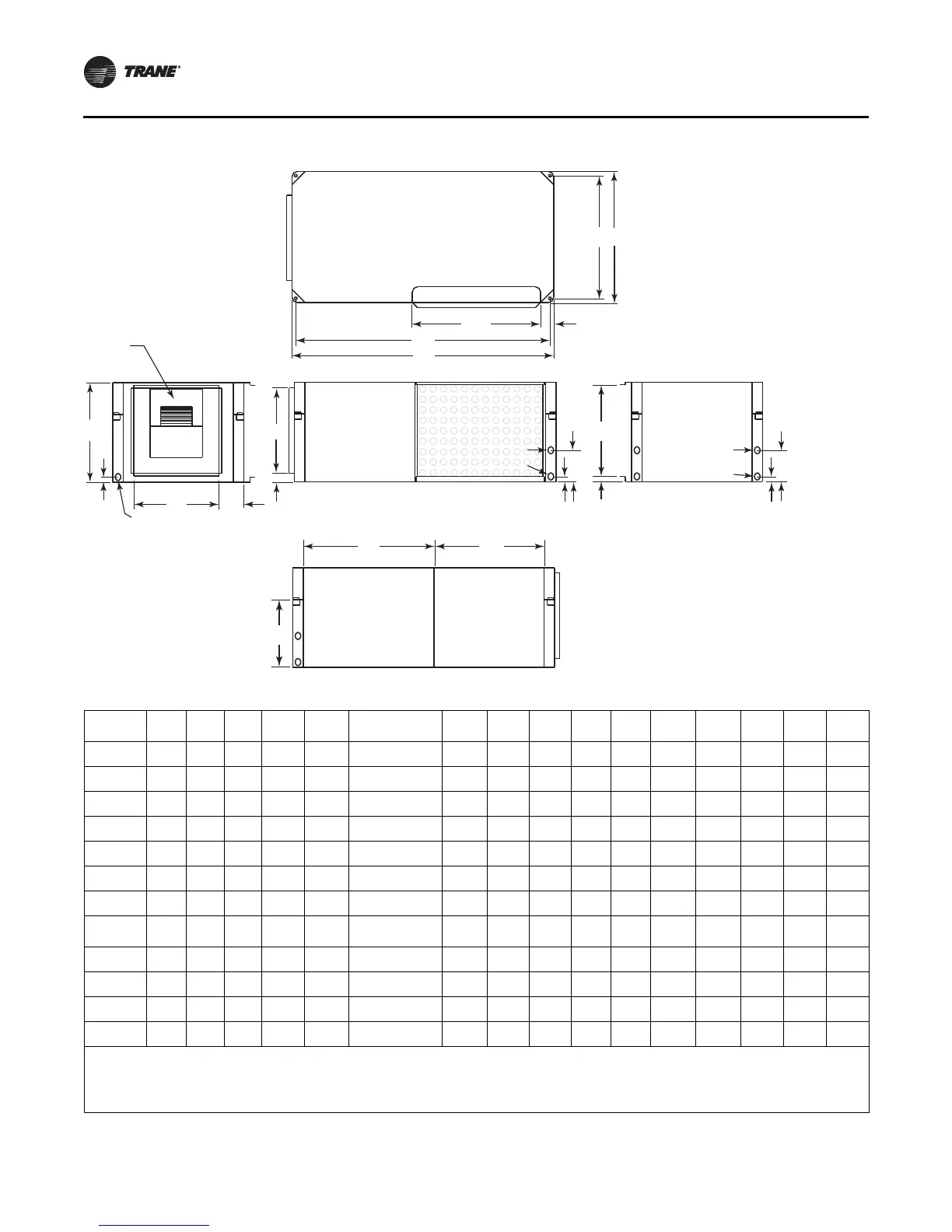

Figure 7. Left return/back supply (GEH/EXH)
TOP
BACK LEFT SIDE FRONT
RIGHT SIDE
BP
N
R
S
A
C
H
H
ED
14"
(356)
J
1"(25.4)
K
1" (25.4)
6 3/4"
(171)
7"
(178)
1/2"
(13)
DRAIN
3/4" (19) NPTI
BLOWER
ACCESS
PANEL
F X G
OPENING
1 3/8" (35)
REFRIG
AND
CONTROL
ACCESS
HI VOLT
L (W.O.)
Q
M (W.I.)
LO VOLT
Table 4. Left return/back supply (GEH/EXH)
GEH
Unit A B C D
(a)
EF x GHJK
L
NPTI
M
NPTI N P Q R
(b)
S
006, 009
40
(1016)
20
(508)
15
(381)
20
(508)
15
(381)
6-7/8 x 8
(175) x (203)
11-1/2
(292)
4-1/2
(114)
1-3/4
(45)
1/2
(13)
1/2
(13)
38-3/4
(984)
18-3/4
(476)
13-5/8
(346)
18-1/2
(470)
3-1/4
(83)
012, 015
40
(1016)
20
(508)
15
(381)
20
(508)
15
(381)
6-7/8 x 9-7/8
(175) x (251)
11-1/2
(292)
4-1/4
(108)
3/4
(19)
1/2
(13)
1/2
(13)
38-3/4
(984)
18-3/4
(476)
13-5/8
(346)
18-1/2
(470)
3-1/4
(83)
018
46
(1168)
23
(584)
18
(457)
23
(584)
18
(457)
8-1/4 x 9-3/4
(210) x (248)
13-1/2
(343)
4-3/4
(121)
1-3/8
(35)
3/4
(19)
3/4
(19)
44-3/4
(1137)
21-3/4
(552)
16-5/8
(422)
18-1/2
(470)
4-1/4
(108)
024, 030
46
(1168)
23
(584)
18
(457)
23
(584)
18
(457)
8-1/4 x 11-3/8
(210) x (289)
13-1/2
(343)
4-3/4
(121)
1-3/8
(35)
3/4
(19)
3/4
(19)
44-3/4
(1137)
21-3/4
(552)
16-5/8
(422)
18-1/2
(597)
4-1/4
(108)
036, 042
50
(1270)
25
(635)
19
(483)
25
(635)
20
(508)
10-1/2 x 13-1/2
(267) x (343)
17
(432)
4
(102)
1
(25)
3/4
(19)
3/4
(19)
48-3/4
(1238)
23-3/4
(603)
17-5/8
(448)
23-1/2
(597)
3-1/4
(83)
Std-048
58
(1473)
33
(838)
21
(533)
29-1/2
(597)
23-1/2
(749)
13-1/8 x 11-3/8
(333) x (289)
18
(457)
5-1/4
(133)
1-1/2
(38)
1
(25)
1
(25)
56-3/4
(1441)
31-3/4
(806)
19-5/8
(498)
23-1/2
(597)
5-1/2
(140)
Hi-048, 060
58
(1473)
33
(838)
21
(533)
29-1/2
(597)
23-1/2
(749)
13-7/8 x 13-7/8
(352) x (352)
18
(457)
5-1/4
(133)
1-1/2
(38)
1
(25)
1
(25)
56-3/4
(1441)
31-3/4
(806)
19-5/8
(498)
23-1/2
(597)
5-1/2
(140)
EXH Unit A B C D
(a)
EF x GHJK
L
NPTI
M
NPTI N P Q R
(b)
S
018, 024
46
(1168)
23
(584)
18
(457)
23
(584)
18
(457)
8-1/4 x 11-3/8
(210) x (289)
13-1/2
(343)
4-3/4
(121)
3-1/4
(83)
3/4
(19)
3/4
(19)
44-3/4
(1137)
21-3/4
(552)
16-5/8
(422)
18-1/2
(470)
4-1/4
(108)
030, 036
50
(1270)
25
(635)
19
(483)
25
(635)
20
(508)
10-1/2 x 13-1/2
(267) x (343)
17
(432)
4
(102)
1
(25)
3/4
(19)
3/4
(19)
48-3/4
(1238)
23-3/4
(603)
17-5/8
(448)
23-1/2
(597)
3-1/4
(83)
042-060
58
(1473)
33
(838)
21
(533)
29-1/2
(597)
23-1/2
(749)
13-1/8 x 11-3/8
(333) x (289)
18
(457)
9-3/4
(248)
1-1/2
(38)
1
(25)
1
(25)
56-3/4
(1441)
31-3/4
(806)
19-5/8
(498)
23-1/2
(597)
5-1/2
(140)
070
58
(1473)
39
(991)
21
(533)
29-1/2
(597)
23-1/2
(749)
13-7/8 x 13-7/8
(352) x (352)
18
(457)
9-3/4
(248)
1-1/2
(38)
1
(25)
1
(25)
56-3/4
(1441)
37-3/4
(959)
19-5/8
(498)
23-1/2
(597)
5-1/2
(140)
Notes:
1. All dimensions are in inches followed by millimeters in parenthesis.
2. Clearance must be 18 in. (457 mm) for access to service. NEC requires 36 in. on the control panel side of the unit. If supply or return are not located
on a long side of the unit, this side will not require more than a 2 in. (51 mm) clearance. Forklift is recommended when rigging the unit. GEH units
only: If hot gas reheat is specified for a size 018, 024, the actual cabinet size increases to an 036 cabinet.
(a) Return air opening dimension
(b) Filter rack dimension
