Unit Dimensions and Weights
32 WSHP-SVX01L-EN

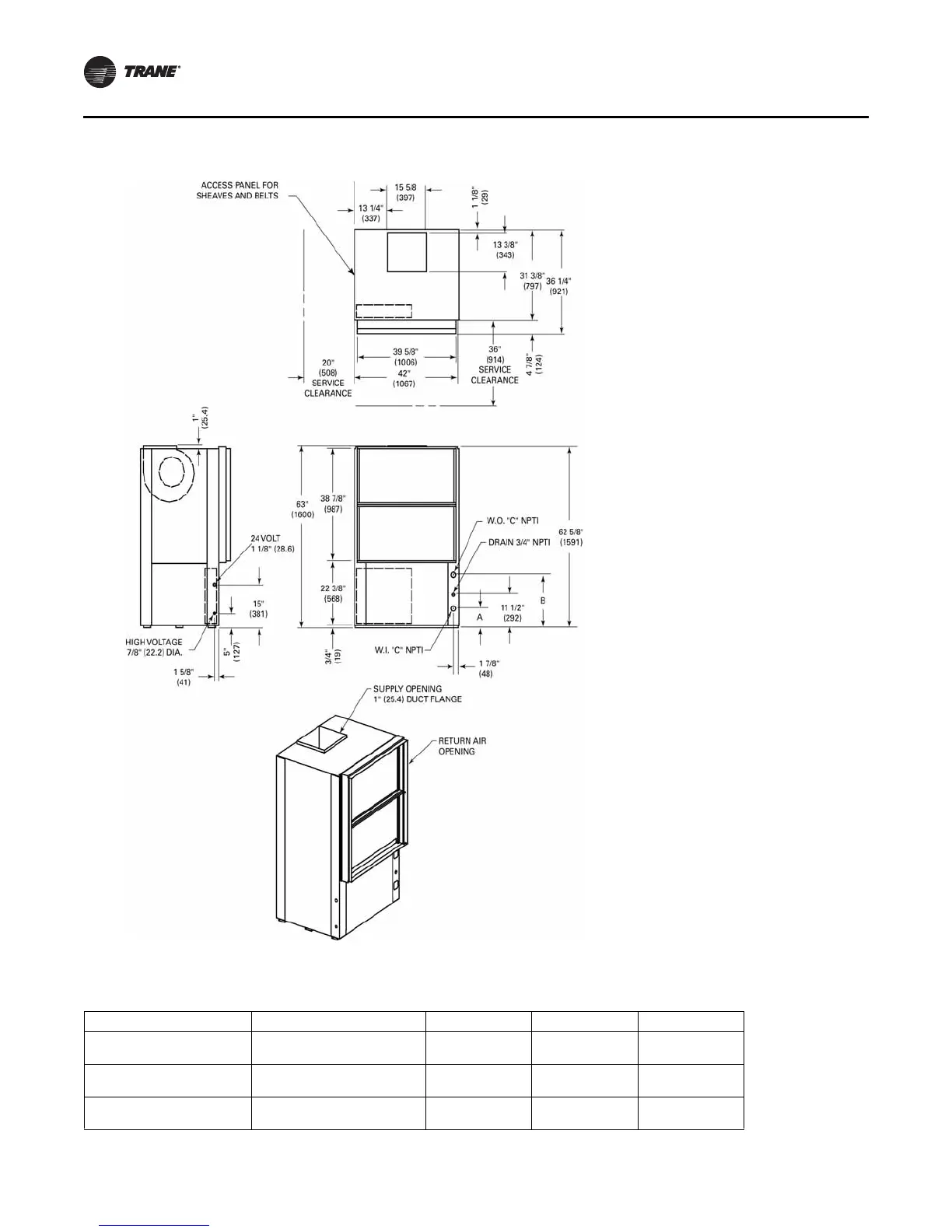

Figure 25. GEV 6–10 tons (072–120) 60 Hz; 6 and 7½ ton (072 and 090) 50 Hz—front return/top supply
(a)
(a)NEC requires that the GEV072-300 front return must be a non-ducted return.
Table 18. GEV 6–10 tons (072-120) 60 Hz; 6 and 7½ ton (072 and 090) 50 Hz—front return/top supply
Unit (60 Hz) Unit (50 Hz) A B C
6 ton —
6-5/8 in.
(168 mm)
18-3/8 in.
(467 mm)
1-1/4 in.
(32 mm)
7½ ton 6 ton
6-5/8 in.
(168 mm)
18-3/8 in.
(403 mm)
1-1/4 in.
(32 mm)
10 ton 7½ ton
6-1/2 in.
(165 mm)
18-1/2 in.
(470 mm)
1-1/2 in.
(38 mm)
