Reports
You can use the Tracer™ TD-5 Display to view a variety of
reports and create and edit custom reports.
Touch the Reports button in the bottom di
splay area to
view the Reports screen. The Reports screen contains the
following buttons:
Table 3. Representation of screen below
Custom Report 1 System Report About
Custom Report 2 Compressor Report Sensor Report
Custom Report 3 Operating Modes Configuration Report
Economizer/
Ve
ntilation Repo
rt
Heating Report
Binary Input Report Binary Output Report

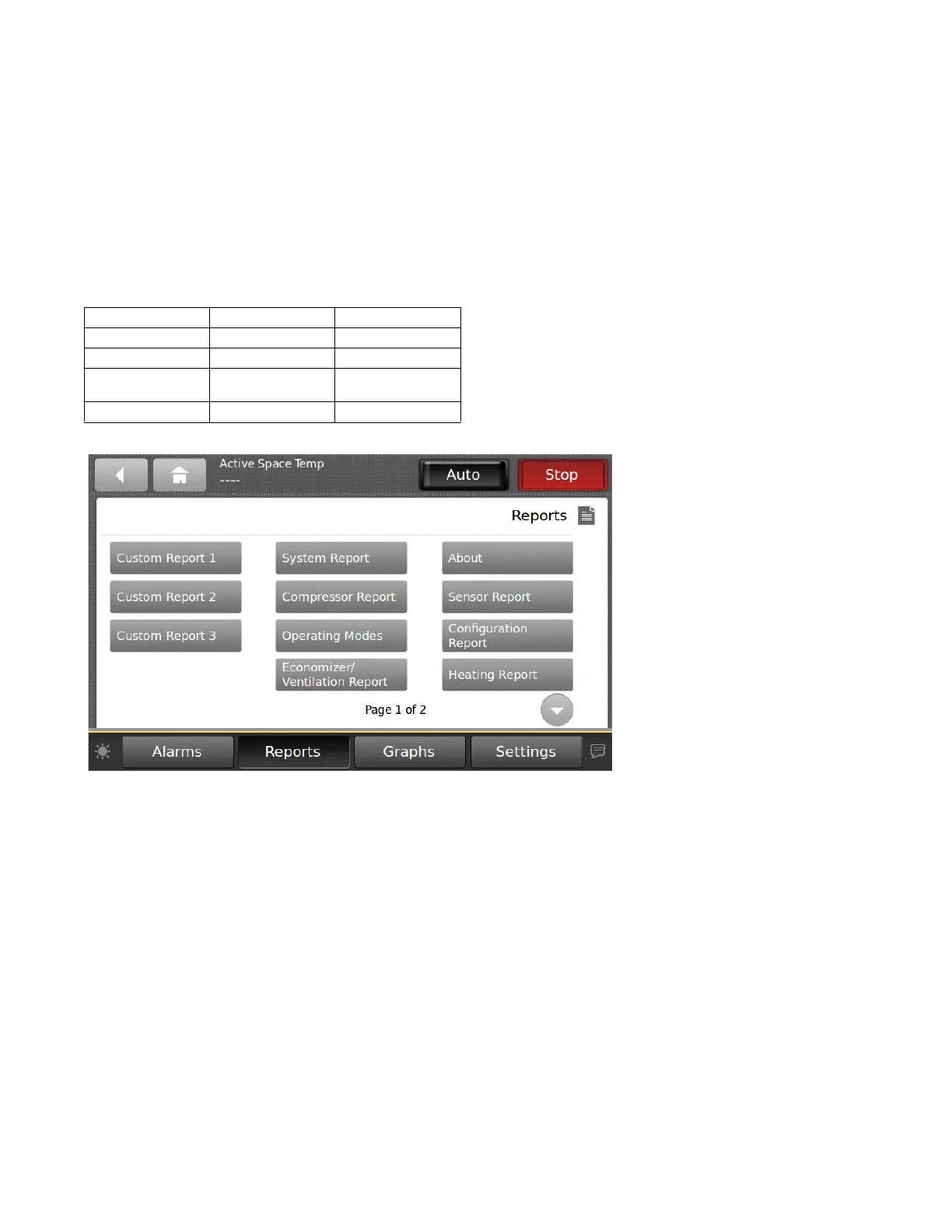

Figure 5. Reports screen
Custom Reports
You can create up to three custom reports using the
Tracer™ TD-5 Display
Creating a Custom Report
1. Navigate to the Reports screen, then touch one of the
three custom report buttons.
The Custom Report (1, 2, or 3) screen appears.
2. Touch the Ed
it button.
The Edit Custom Report screen appears (Figure 6,
p. 15).
