Product Hardware Features

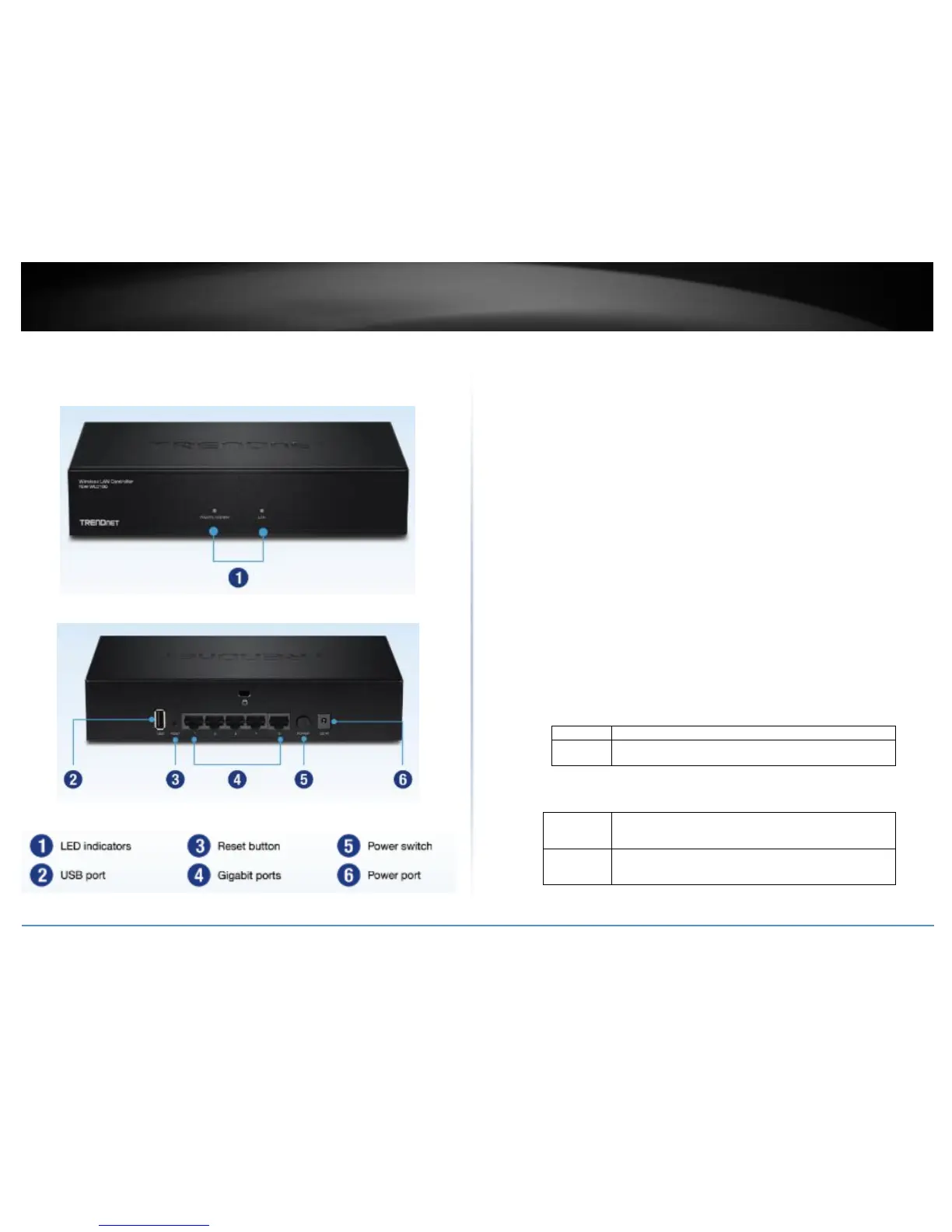

Wireless LAN Controller (TEW-WLC100)
Front View
Rear View
Reset Button – Press and hold this button for 15 seconds and release to
reset the controller to factory defaults. The ports LEDs will turn off to
indicate that the reset was initiated.
Gigabit Ports (1-5) – Connect to your LAN network and connect
additional network devices.
Power Port – Connect the included power adapter to your controller
power port and then to an available power outlet.
Note: Use only the adapter that came with your controller.
On/Off Power Switch – Push the controller On/Off push button to turn
your controller “On” (Inner position) or “Off” (Outer position).
*USB Port – Reserved for firmware upgrade, backup/restore
configuration functions.
*Note: Functionality is not available in initial shipping firmware will be
added in future firmware upgrade.
Security Slot – Can be used to with third party lock to physically secure
your controller to a specific location.
LED Indicators
POWER/SYSTEM LED
When the System turns off, the power adapter is not
connected or the device is not receiving power.
Indicates that a network device (router, switch, access
point, computer, etc.) has been physically connected to
one of the five Gigabit ports (1-5).
Indicates no physical Ethernet connection or no network
devices physically connected to any of the Gigabit ports
(1-5).
To Next Page
