Passenger Seat
Warning
The rider's seat is only correctly
retained and supported once the
passenger seat is correctly installed.
Never ride the motorcycle with the
passenger seat detached or removed,
as the rider's seat will not be secure
and may move.
A loose or detached seat may cause
loss of motorcycle control and an
accident.
Warning
To prevent detachment of the seat
during riding, after installation always
grasp the seat and pull firmly upwards.
If the seat is not correctly secured in
the lock, it will detach from the lock.
A loose or detached seat may cause
loss of motorcycle control and an
accident.
The passenger seat must be removed
before the rider's seat can be
removed. There is also a small storage
compartment located beneath the
passenger seat, see page 94.
Passenger Seat Removal
To remove the passenger seat:
▼ Insert the key into the seat lock
and turn it counter-clockwise while
pressing down on the front part of
the passenger seat. This will release
the passenger seat from its lock.
▼ Lift the front of the passenger seat
and slide forwards.
▼ If equipped with heated seats,
disconnect the heated seat’s
electrical connector for complete
removal from the motorcycle.
Passenger Seat Installation
4
3
5
2
1

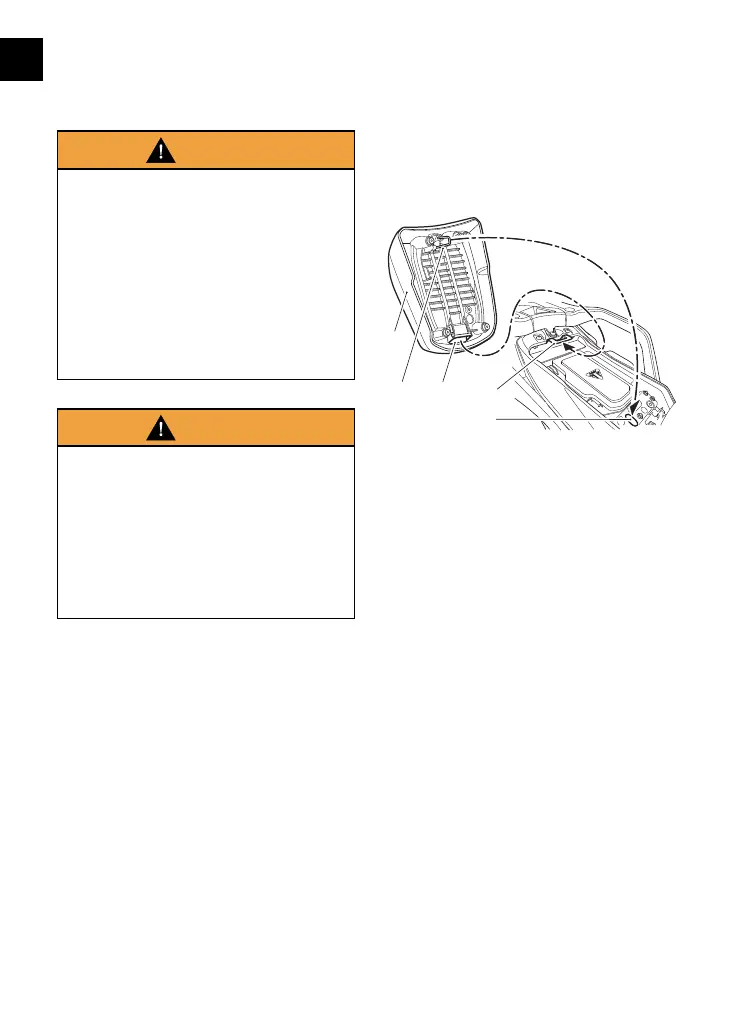

1. Passenger seat
2. Seat base U-bar
3. Passenger seat rear pocket
4. Subframe tongue
5. Latch
To install the passenger seat:
▼ If equipped, connect the heated
seat’s electrical connector.
▼ Insert the subframe tongue into the
passenger seat rear pocket.
▼ Align the seat base U-bar with the
latch.
▼ Press down on the front of the
passenger seat to engage the seat
lock.
