3.2 Replacing the LCD Panel Module for MU series
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect harness from the LCD panel module.

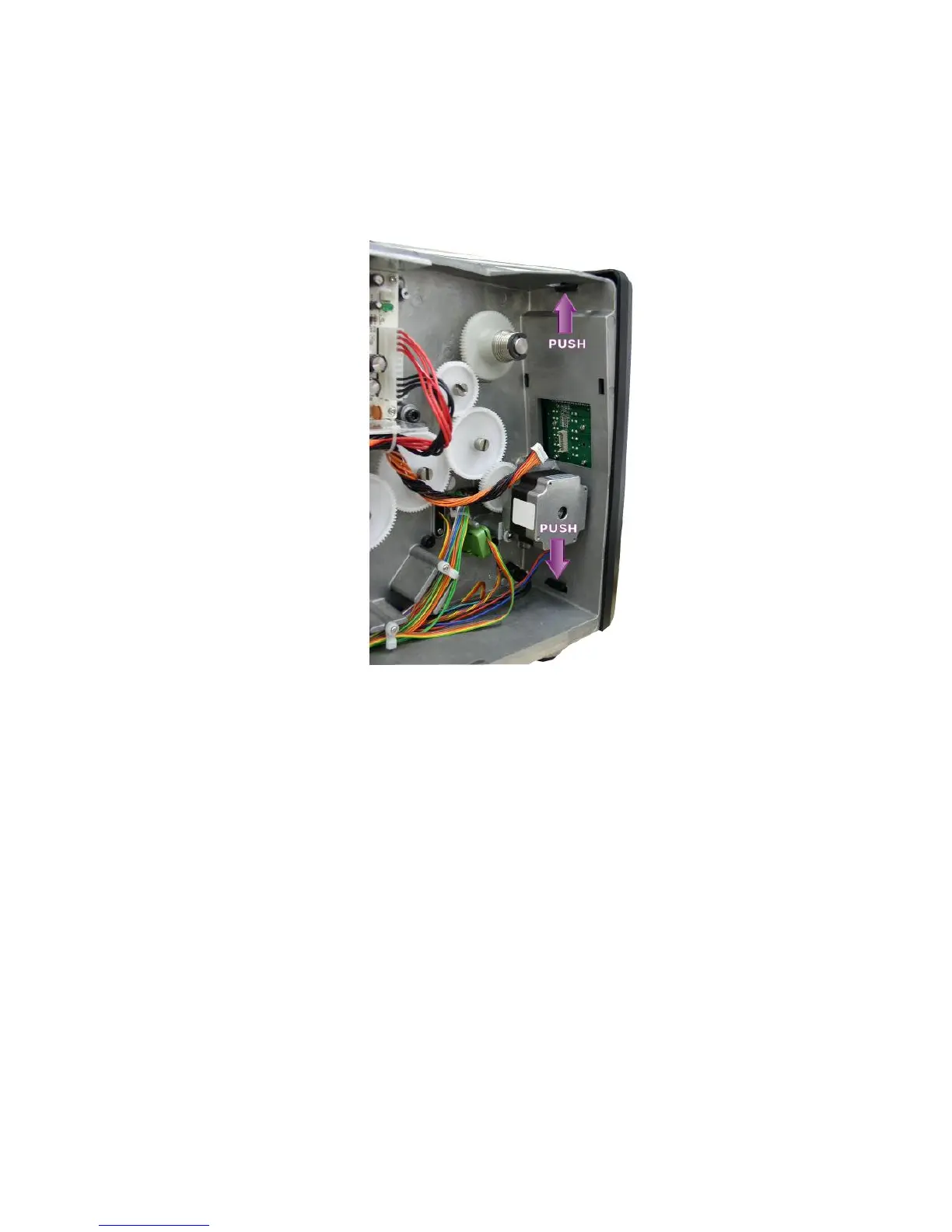

3. Push two tabs to remove/replace the LCD panel module.
4. Remove five screws to remove/replace LCD panel PCB ASS’Y and LCD panel ASS’Y.
5. Reassemble the parts in the reverse procedures.
