3.5 Replacing the Main Board
1. Refer to section 3.4 to remove the multi-interface board.
2. Remove 4 screws then take off the interface bracket.
2. Remove 2 screws and 2 copper pillars on the main board. Disconnect all connectors from
the main board. Remove/Replace the main board.
3. Reassemble the parts in the reverse procedures.

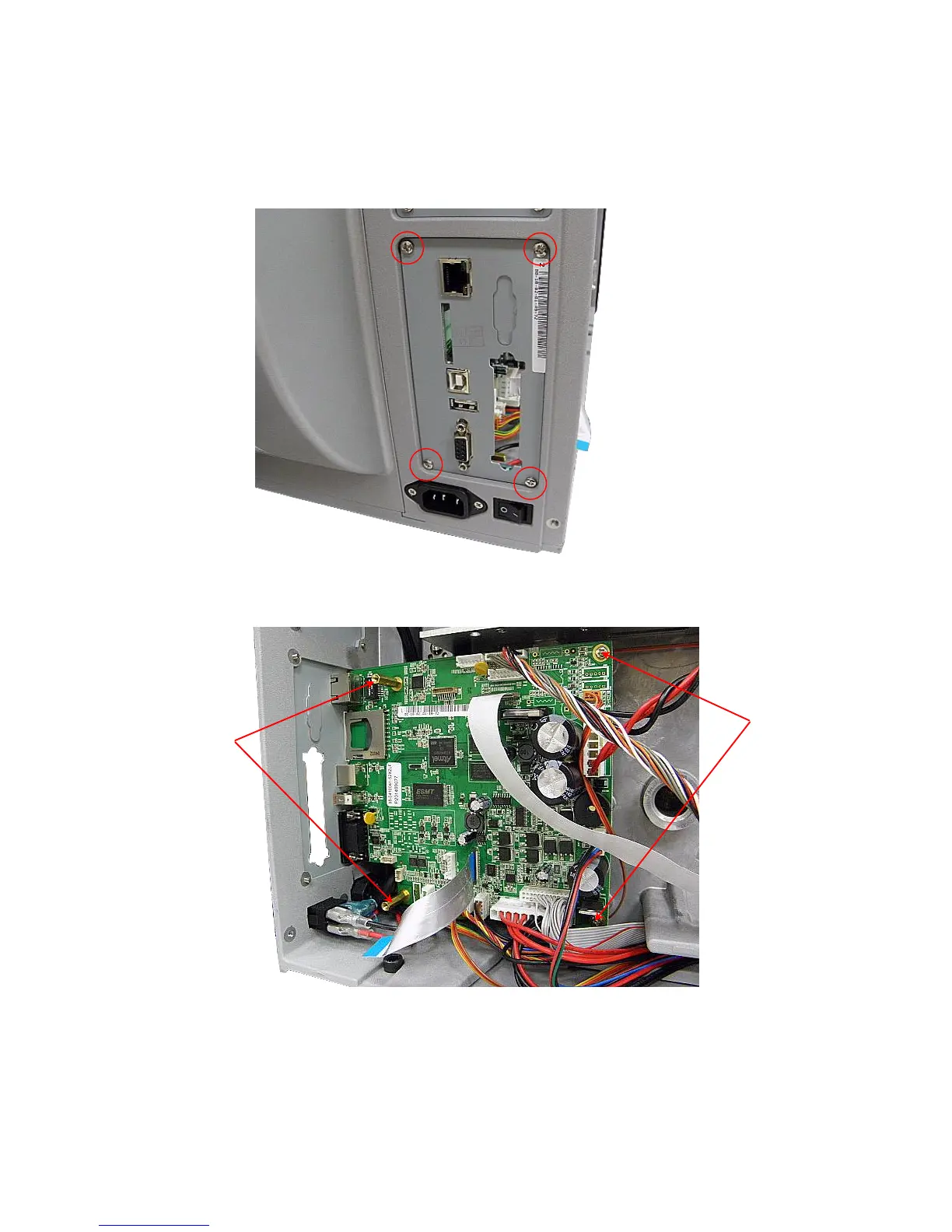

Copper pillars
Screws
