37
37

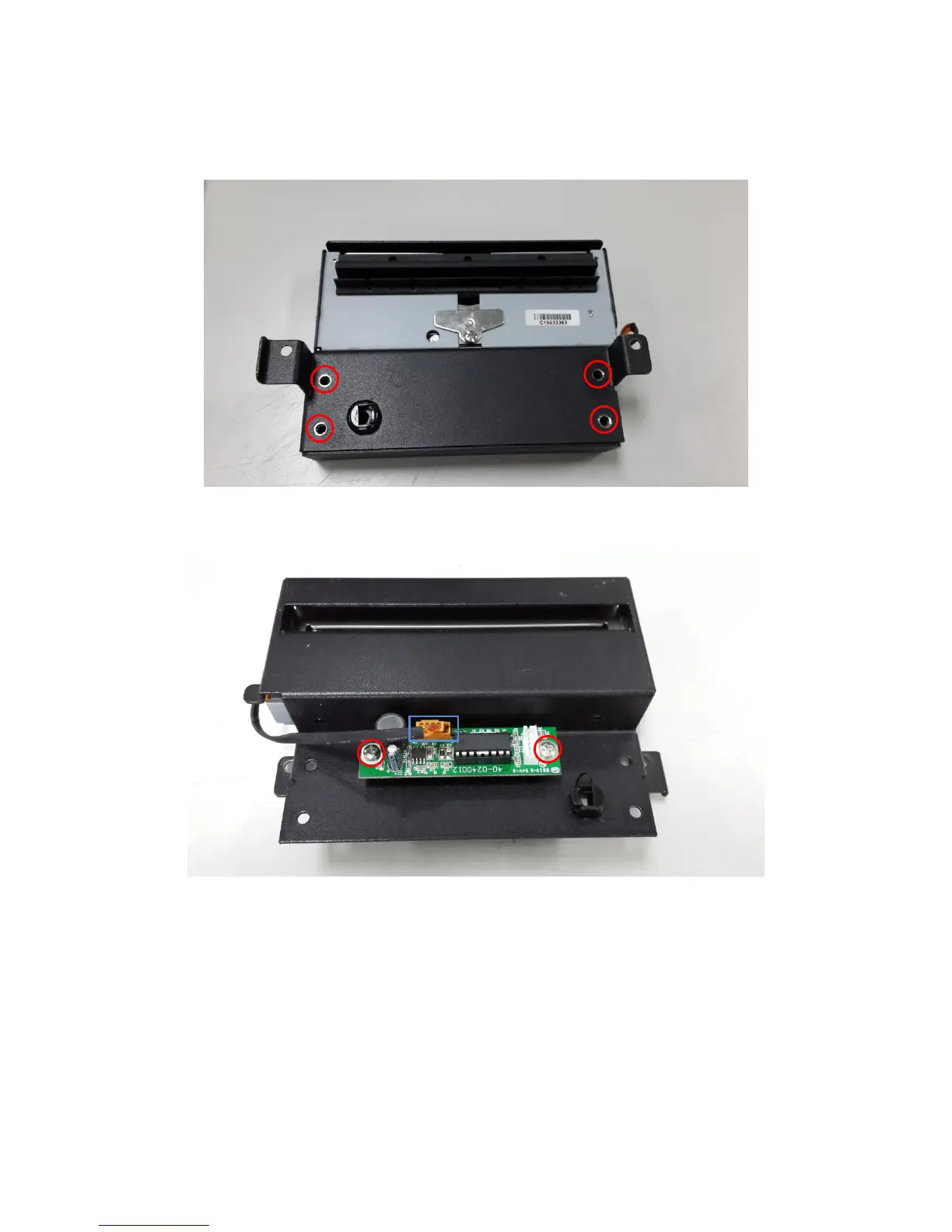

3.14 Replacing the Cutter Driver IC Board (Option)
1. Remove 4 screws on cutter cover.
2. Disconnect 1 connector on the cutter driver IC board. Remove 2 screws to replace the
cutter driver IC board.
6. Reassemble the parts in the reverse procedures.
