TSC TTP-2410MT Series Service Manual

16
16

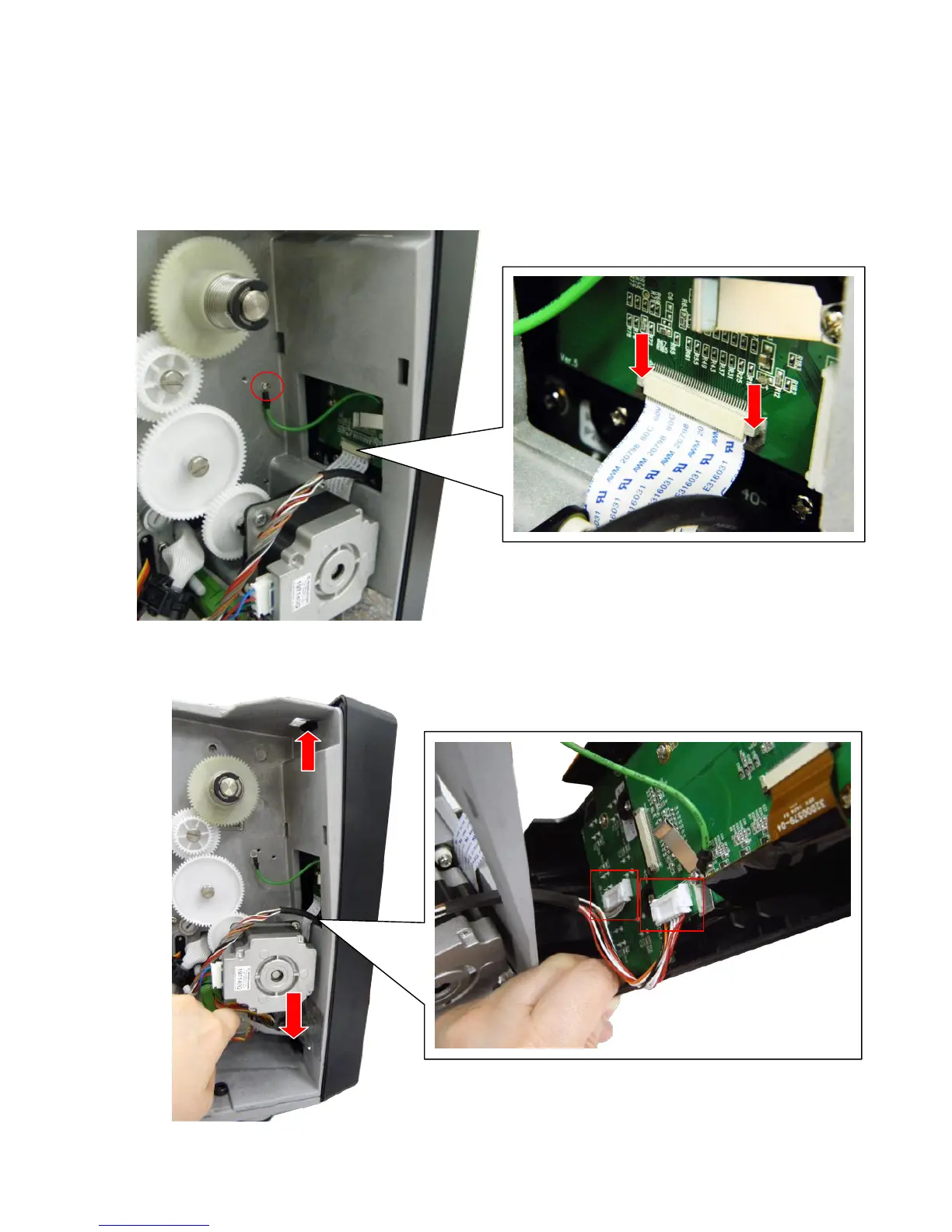

3.3 Replacing the Touch Panel Module for MT series
1. Refer to section 3.1 to remove the electronics cover.
2. Remove 1 screw to release ground cable. Loose the connector lock to disconnect the flat
cable from panel module carefully.
3. Push two tabs for touch panel module. Disconnect 2 connectors to remove/replace the
touch panel module.
PUSH
PUSH
