3.11 Cutter Module Installation (Option)

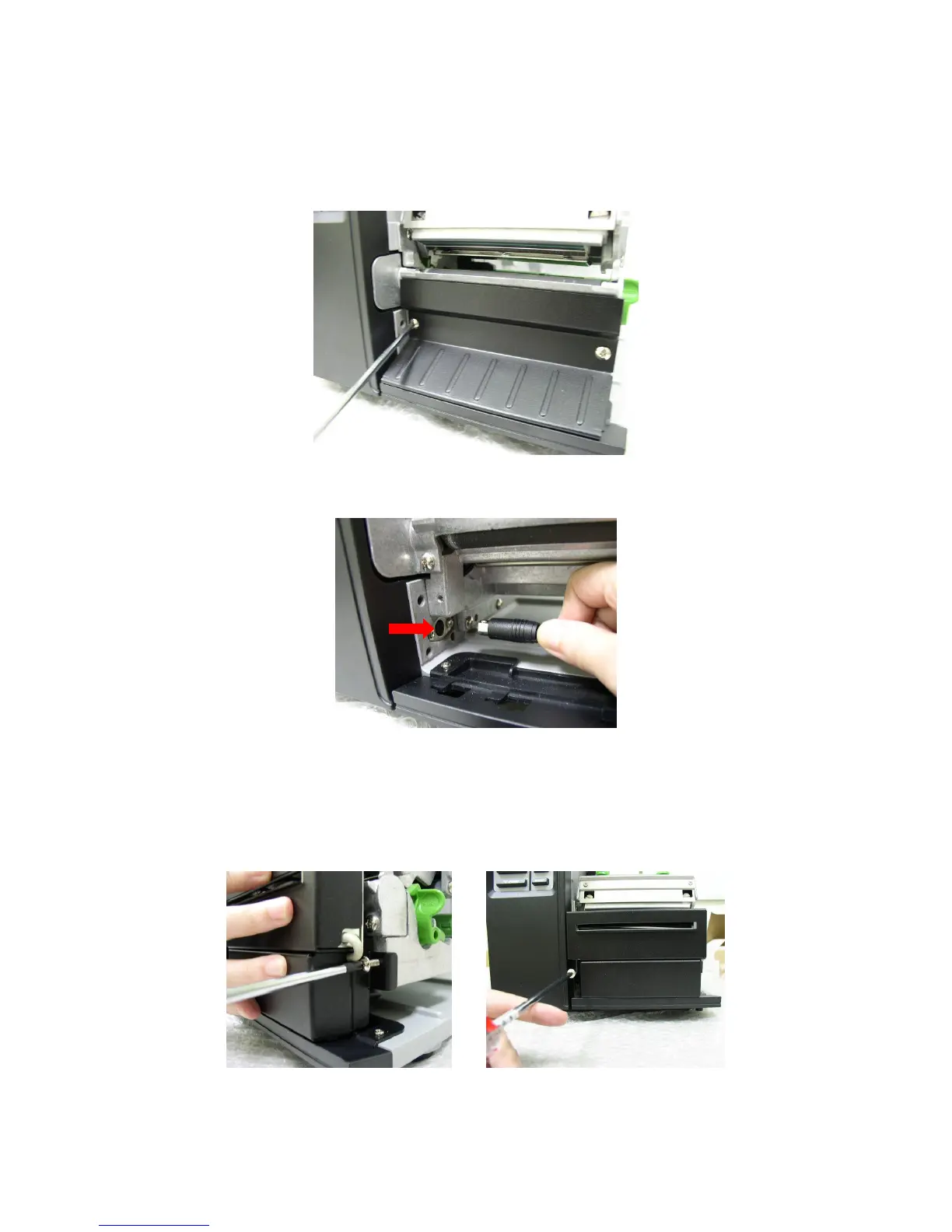

1. Open the printer right side cover.
2. Remove 2 screws to remove lower front panel.
3. Plug the cutter mini DIN cable connector into the cutter/peel-off module connector. The
triangle mark on the connector must be at the upper side.
4. Attach the cutter module to the front of the platen roller. Align the cutter bracket screw
holes to the screw holes that fix the lower front panel.
5. Fasten the 2 screws at the cutter bracket to fix the cutter module to the printer
mechanism.
