TSC TTP-2410MT Series Service Manual

27
27

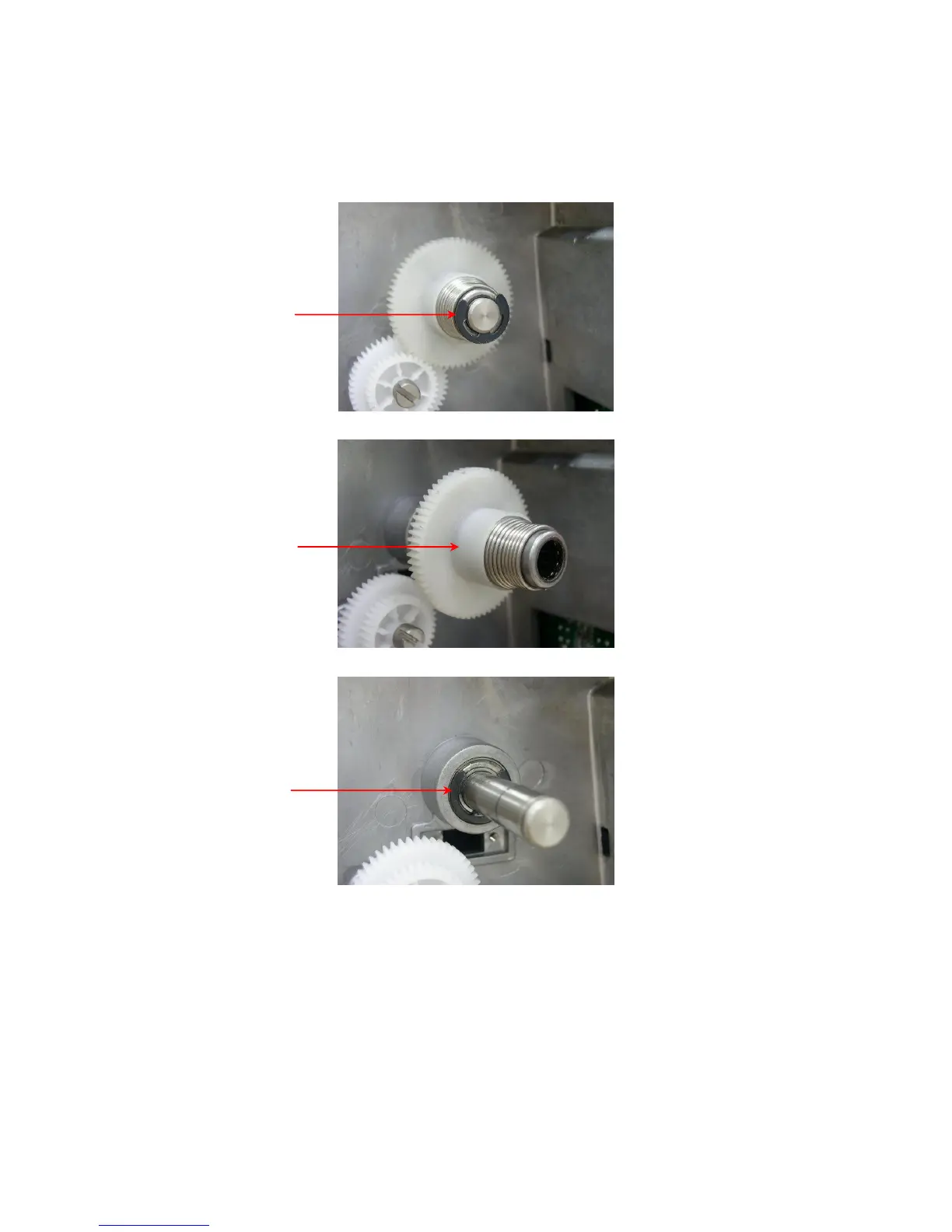

3.10 Replacing the Ribbon Rewind Spindle
1. Refer to section 3.1 to remove the electronics cover.
2. Remove 1 E-ring.
3. Remove the ribbon rewind spindle gear.
4. Remove the E-ring that fixes the spindle at the mechanism.
5. Remove/Replace the ribbon rewind spindle.
6. Reassemble the parts in the reverse procedures.
E-ring
Ribbon rewind
spindle gear
E-ring
