34
34

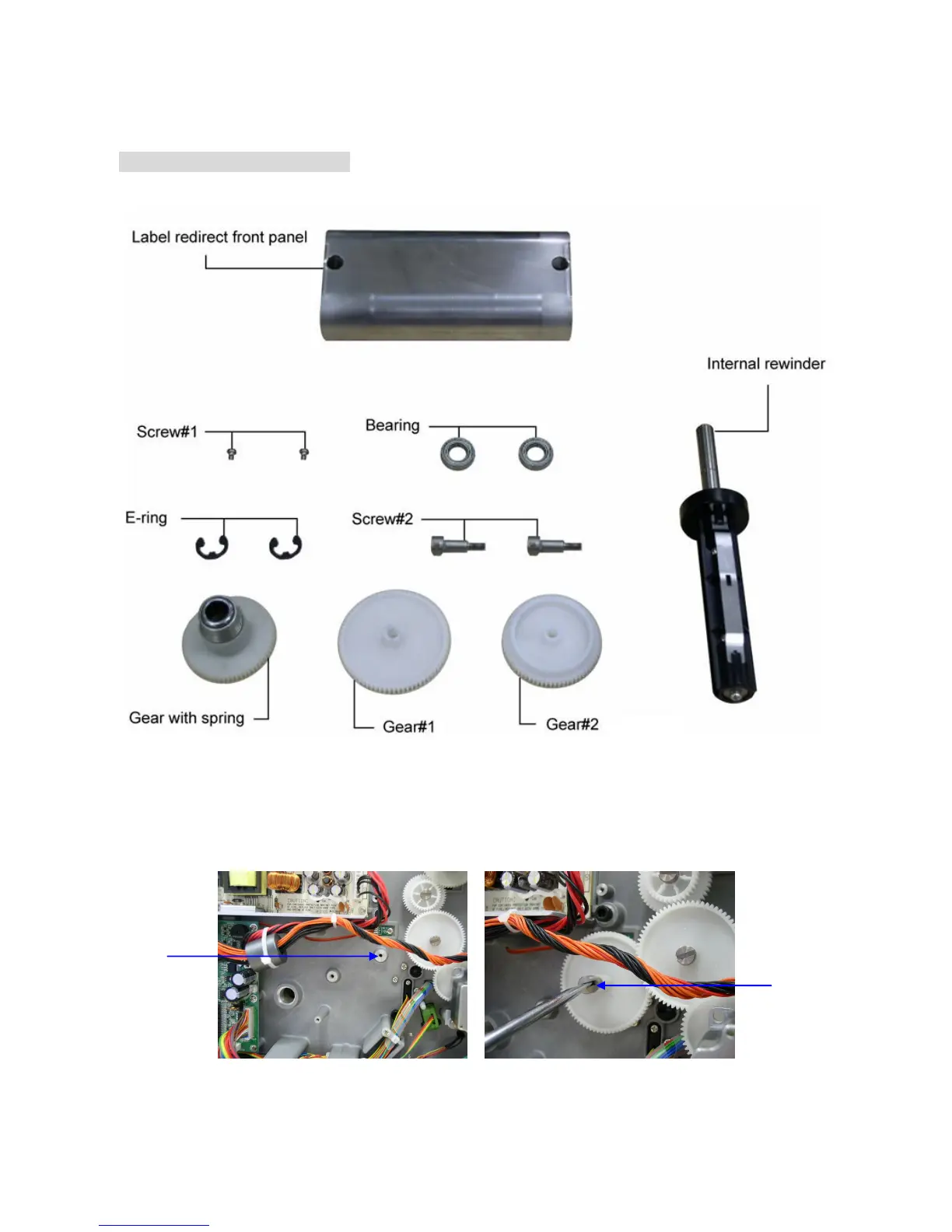

3.13 Internal Rewinding Kit Installation (Option)
Internal rewinding kit parts list
1. Refer to section 3.1 to remove the electronics cover.
2. Fasten the screw#2 to fix the gear#1.
Gear#1
position
Screw#2
