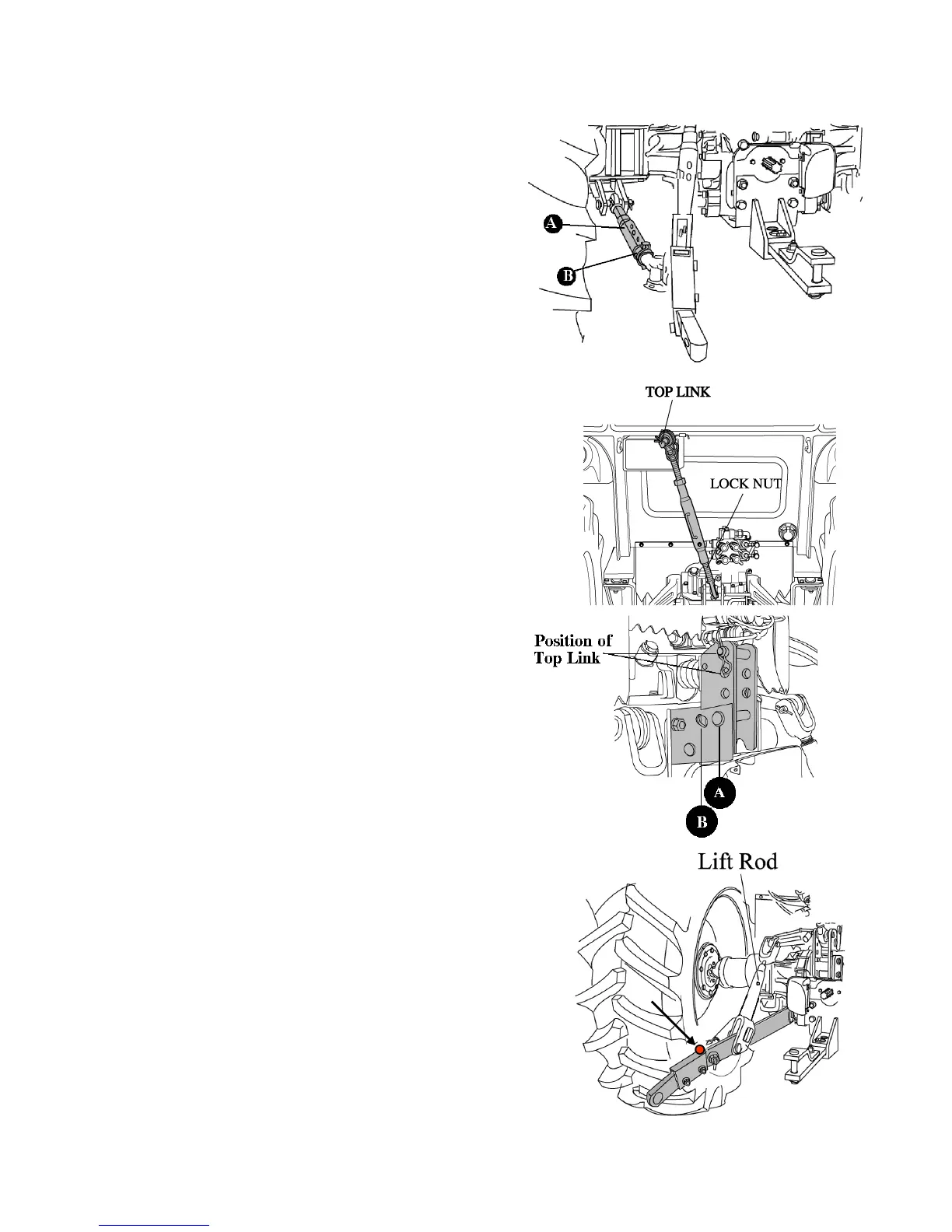

► TELESCOPIC STABILIZERS ADJUSTMENT
The stabilizers are intended for limiting or preventing
implement side movement.
There should be no clearance (Position A) during implement
transport and when working with grades, rollers
mowers, seeders, drills and similar implements.However,
a slight play is necessary (Position B) when working with
ploughs, harrows, ditchers, cultivators and the like:
That is when working with “draft control”.The length of
stabilizers is adjusted by removing the pin and rotating the turn
buckle barrel by which the threaded ends are interconnected.
►
►►
► ADJUSTMENT OF THE TOP LINK
Lengthening or shortening the top link will
change the angle of the implement.
The locating hole of the top link varies with
the type of implement used.
►
►►
► ADJUSTMENT OF LOWER LINK
The adjustment is done with the adjusting handle on the
Right hand Lift rod.
To shorten it wind the handle clockwise and to lengthen
it wind it counter clockwise.
When adjusted correctly hold the turn buckle with the
stopper provided.
2nd hole from the top.
48
1) For general implement :Use the Pin to “A”point
2) For Draft control :Use the Pin to “B”point
►
►►
► LOWER LINK (IF EQUIPPED EXTENDABLE TYPE)
Push the point area and pull the end of the lower link
to adjust the length of lower link.
