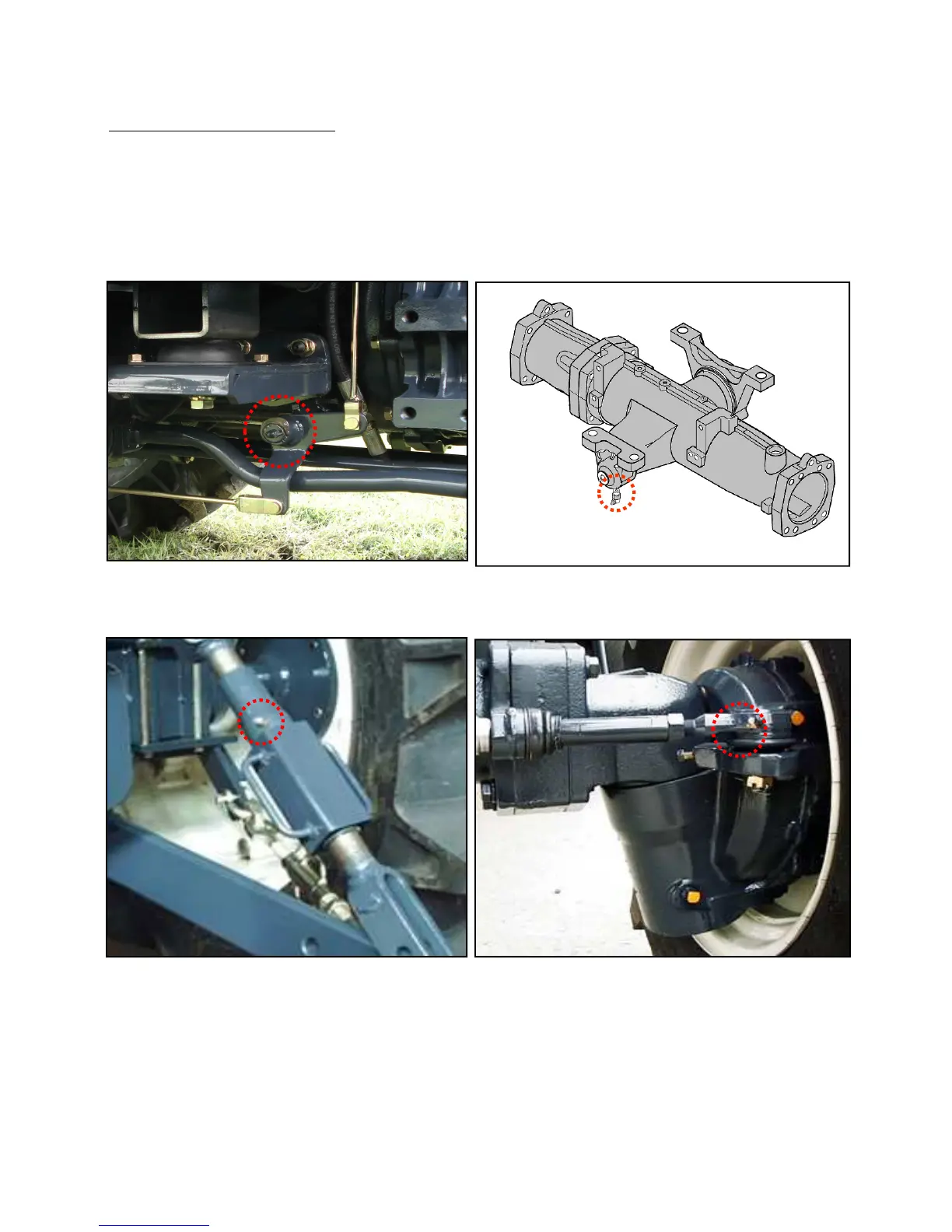

GREASING THE TRACTOR

Grease the tractor according to the service schedule (page 63, 64 and 65)

Ensure that grease nipples are cleaned well before any attempt is made to grease them.

Grease Nipple

►

►►

► BRAKE AREA / CLUTCH AREA

►

►►

► PIVOT METAL

►

►►

►

LIFT ROD

►

►►

►

FRONT AXLE

Grease Nipple

►

►►

►

LIFT ROD

►

►►

►

FRONT AXLE
