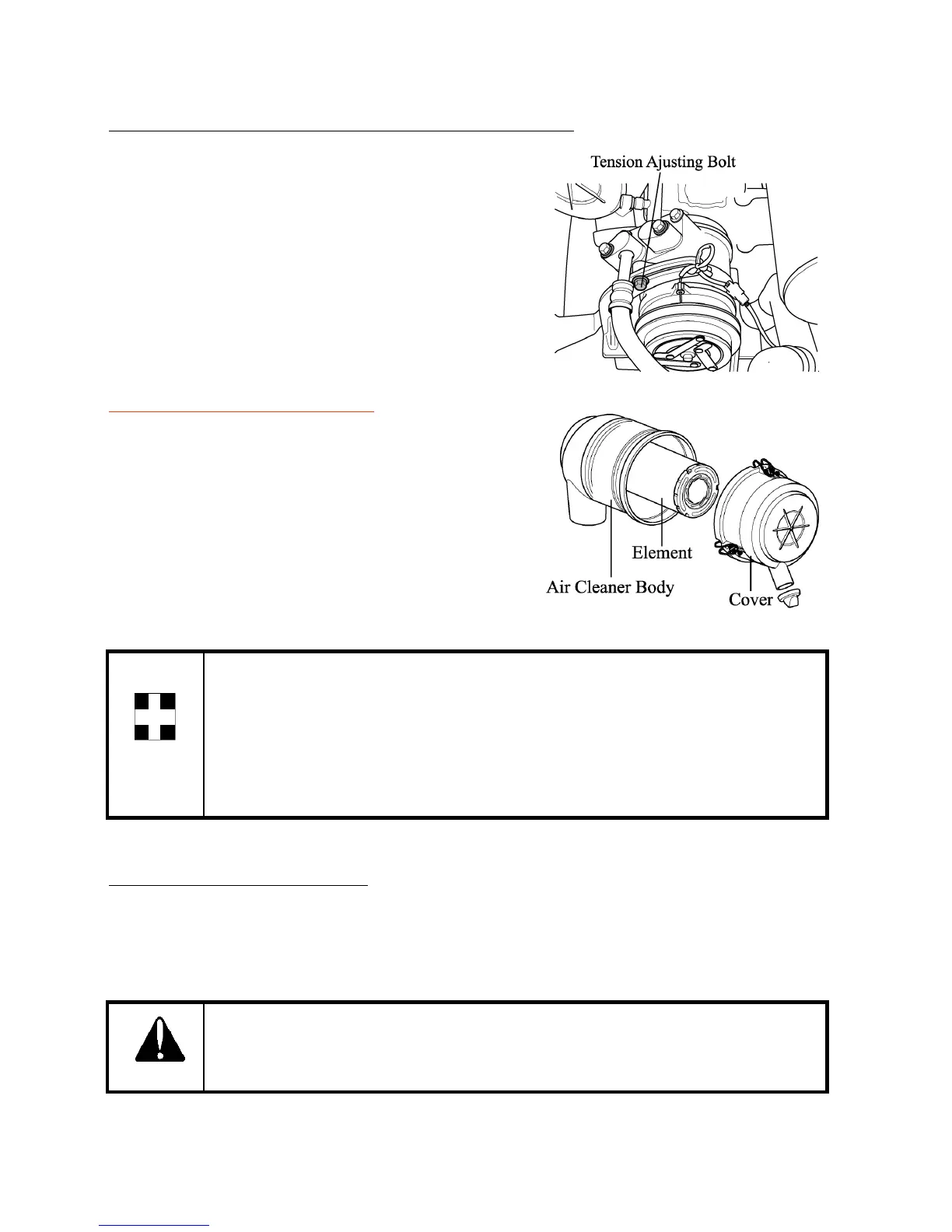

SERVICING THE AIR CLEANER
To remove the dust from the evacuator valve squeeze it
between thumb and fingers to let excess dust out and wipe
around the valve to keep it clean from outside.
To clean the main element, remove the right fan cover.
Remove dust by blowing it out of the element with
Compressed air.Check the element to ensure it is not
damaged.Reassemble the element.
AIR CONDITIONER COMPRESSOR BELT ADJUSTMENT
Check the compressor belt tension regularly and adjust
If required.
The correct tension is if the center of the belt is
Pushed With a finger it moves in approx. 10 mm (0.39 in)
as shown in the picture.
To adjust the belt, loosen the top bolt on the alternator,
move the alternator to the desired position and tighten the
bolt.
Also ensure that the bottom alternator bolts are tighten
important
Never beat the element on a stone or concrete floor/wall to clean it.
Check all connections and hoses especially on the clean side of the air cleaner to
ensure no dusty air can enter the engine.
Check the element for flaws by putting a light inside the element.
When reassembling make sure all surfaces seal correctly to keep dust out.
When working in dusty conditions increase the service frequency.
►
►►
► Replace the element after cleaning it 5 times or it is damaged.
CHECKING HOSES AND LINES
The fuel lines, radiator hoses, hydraulic and rubber hoses are consumables, which deteriorate by age
and use.
Check them regularly and replace if faulty.
Damaged fuel lines leak and cause fires.
Damaged radiator hoses can cause hot water burns and in severe cases seize the
engine.
Caution
77
