► TRACK ADJUSTMENT

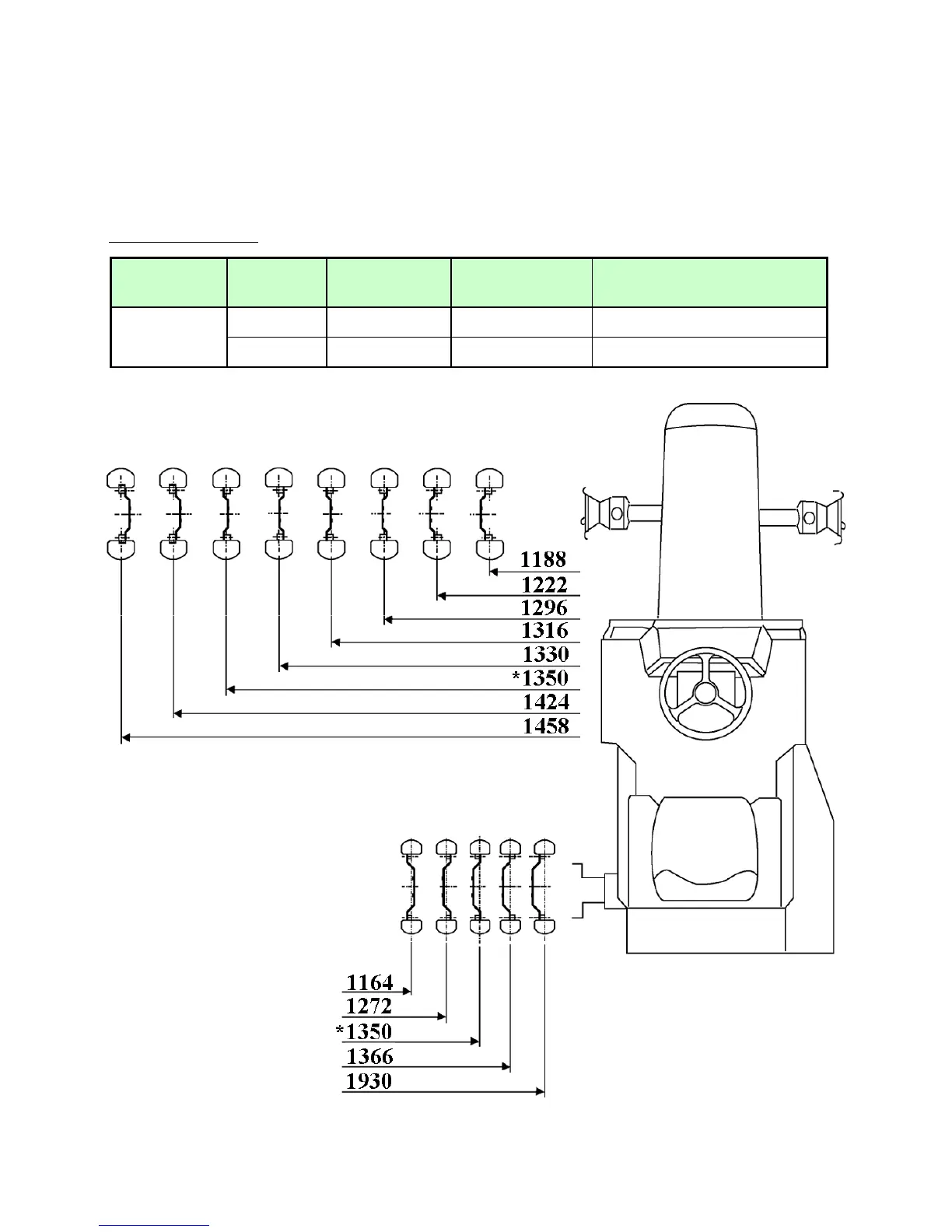

As T553 CABIN models of TYM are front wheel assist the front track can be set in 8 positions.

The rear track can be set in 5 positions as illustrated.

T553 CABIN TYPE

MODEL DIVISION TYRE

AIR PRESSURE

(kgf/cm2)

TRACK ADJUSTMENT

(*) Marking is STANDARD

T553 CABIN

FRONT 9.5-18-9PR 2.8 1,350 mm

REAR 13.6-28-6PR 1.6 1,350 mm

Unit : mm(in)
