Copyright 2014 unitech Electronics Co., Ltd.
All rights reserved. Unitech is a registered trademark of unitech Electronics Co.,
Ltd.

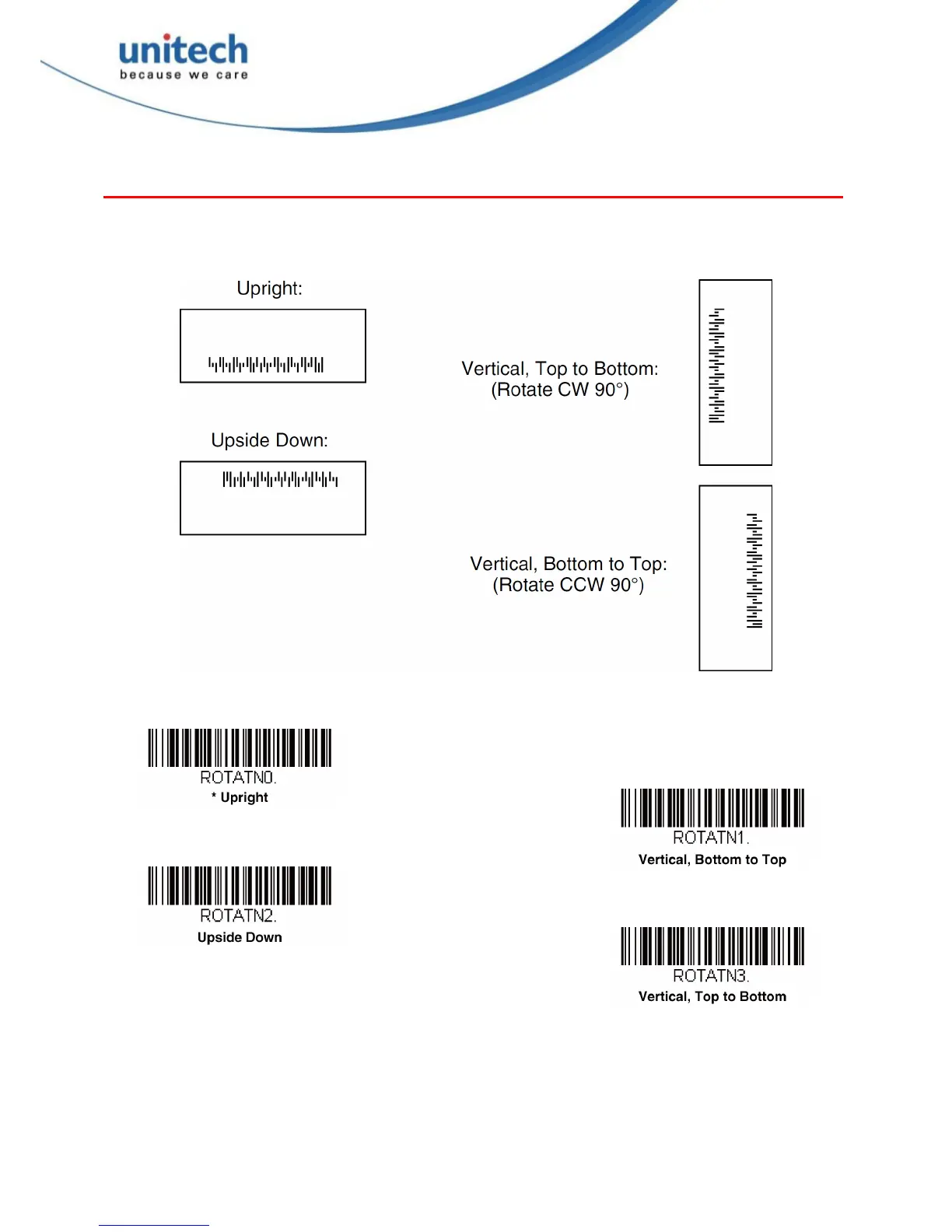

W
orking Orient
ation
Some bar codes are direction-sensitive. For
example, KIX codes and OCR can misread when
scanned sideways or upside down. Use the wo
rking orient
ation settings if your
direction-sensitive codes will not usua
lly be presented upright to the scanner
.
Default = Upright
.
Default = Upright
.
42
44
Table of Contents
Default Chapter
6
Table of Contents
6
Chapter 1
11
Getting Started
11
About this Manual
11
Unpacking Your Device
11
Connecting the Device
11
Connecting with USB
11
Connecting with Keyboard Wedge
12
Reading Techniques
13
Menu Bar Code Security Settings
13
Setting Custom Defaults
14
Resetting the Custom Defaults
14
Resetting the Factory Defaults
15
Chapter 2
16
Programming the Interface
16
Introduction
16
Programming the Interface - Plug and Play
16
Keyboard Wedge
16
Laptop Direct Connect
16
USB IBM Surepos
17
USB PC or Macintosh Keyboard
17
Usb Hid
18
Keyboard Country Layout
19
Keyboard Style
25
Keyboard Conversion
27
Control Character Output
27
Keyboard Modifiers
28
Chapter 3
30
Input/Output Settings
30
Power up Beeper
30
Trigger Click
30
Good Read and Error Indicators
31
Beeper - Good Read
31
Beeper Volume - Good Read
31
Beeper Pitch - Good Read
32
Beeper Pitch - Error
32
Beeper Duration - Good Read
32
LED - Good Read
33
Number of Beeps - Good Read
33
Number of Beeps - Error
33
Good Read Delay
34
User-Specified Good Read Delay
34
Manual Trigger Mode
34
Presentation Mode
35
Presentation Sensitivity
35
Presentation Centering
35
Mobile Phone Read Mode
37
Hands Free Time-Out
38
Reread Delay
38
User-Specified Reread Delay
39
Scanner Time-Out
39
Centering
39
No Read
41
Video Reverse
42
Working Orientation
43
Chapter 4
44
Data Editing
44
Prefix/Suffix Overview
44
Points to Keep in Mind
44
To Add a Prefix or Suffix
44
To Clear One or All Prefixes or Suffixes
45
To Add a Carriage Return Suffix to All Symbologies
46
Prefix Selections
46
Suffix Selections
47
Function Code Transmit
47
Intercharacter, Interfunction, and Intermessage Delays
47
Intercharacter Delay
48
User Specified Intercharacter Delay
48
Interfunction Delay
49
Intermessage Delay
49
Chapter 5
50
Data Formatting
50
Data Format Editor Introduction
50
Add a Data Format
50
Other Programming Selections
52
Terminal ID Table
53
Data Format Editor Commands
53
Send Commands
53
Move Commands
54
Search Commands
54
Miscellaneous Commands
55
Data Formatter
56
Primary/Alternate Data Formats
57
Chapter 6
58
Symbologies
58
All Symbologies
59
Message Length Description
59
Codabar
60
Codabar Concatenation
61
Codabar Message Length
62
Code 39
63
Code 39 Message Length
64
Code 39 Append
64
Full Ascii
64
Code 39 Code Page
66
Interleaved 2 of 5
67
NEC 2 of 5
68
Interleaved 2 of 5 Message Length
68
Code 93
70
Code 93 Code Page
71
Straight 2 of 5 Industrial (Three-Bar Start/Stop)
72
Straight 2 of 5 IATA (Two-Bar Start/Stop)
73
Matrix 2 of 5
74
Code 128
75
Code 128 Message Length
76
Code 128 Code Page
76
Gs1-128
77
Upc-A
78
Upc-A/Ean-13
80
With Extended Coupon Code
80
Coupon GS1 Databar Output
81
Isbn Translate
86
Msi
89
Msi Check Character
89
Msi Message Length
90
GS1 Databar Omnidirectional
91
GS1 Databar Limited
91
GS1 Databar Expanded
92
Codablock a
93
Codablock F
94
Pdf417
95
Macropdf417
96
Micropdf417 Message Length
97
Gs1 Composite Codes
97
Gs1 Emulation
98
TCIF Linked Code 39 (TLC39)
99
QR Code
100
Qr Code Page
101
Data Matrix
102
Data Matrix Code Page
103
Aztec Code
104
Aztec Code Page
105
Chinese Sensible (Han Xin) Code
106
Postal Codes - Linear
106
Korea Post
108
Chapter 7
109
Interface Keys
109
Keyboard Function Relationships
109
Supported Interface Keys
111
Chapter 8
112
Utilities
112
To Add a Test Code I.D. Prefix to All Symbologies
112
Show Decoder Revision
112
Show Scan Driver Revision
112
Show Software Revision
112
Show Data Format
113
Test Menu
113
Chapter 9
114
Product Specifications
114
Unitech MS832 Scanner Product Specifications
114
Standard Cable Pinouts
115
Keyboard Wedge
115
Standard Cable Pinouts
116
Usb
116
Chapter 10
117
Maintenance
117
Repairs
117
Cleaning the Device
117
Inspecting Cords and Connectors
117
Replacing Cables
117
Replacing an Interface Cable
118
Troubleshooting a Unitech MS832 Scanner
118
Chapter 11
120
Customer Support
120
Technical Assistance
120
Limited Warranty
120
Chapter a
122
Reference Charts
122
Symbology Chart
122
ASCII Conversion Chart (Code
125
Code Page Mapping of Printed Bar Codes
127
Unicode Key Maps
129
Sample Symbols
130
Programming Chart
133
Appendix
135
Worldwide Support
135
Other manuals for Unitech MS832
Quick Reference Guide
2 pages
4
Based on 1 rating
Ask a question
