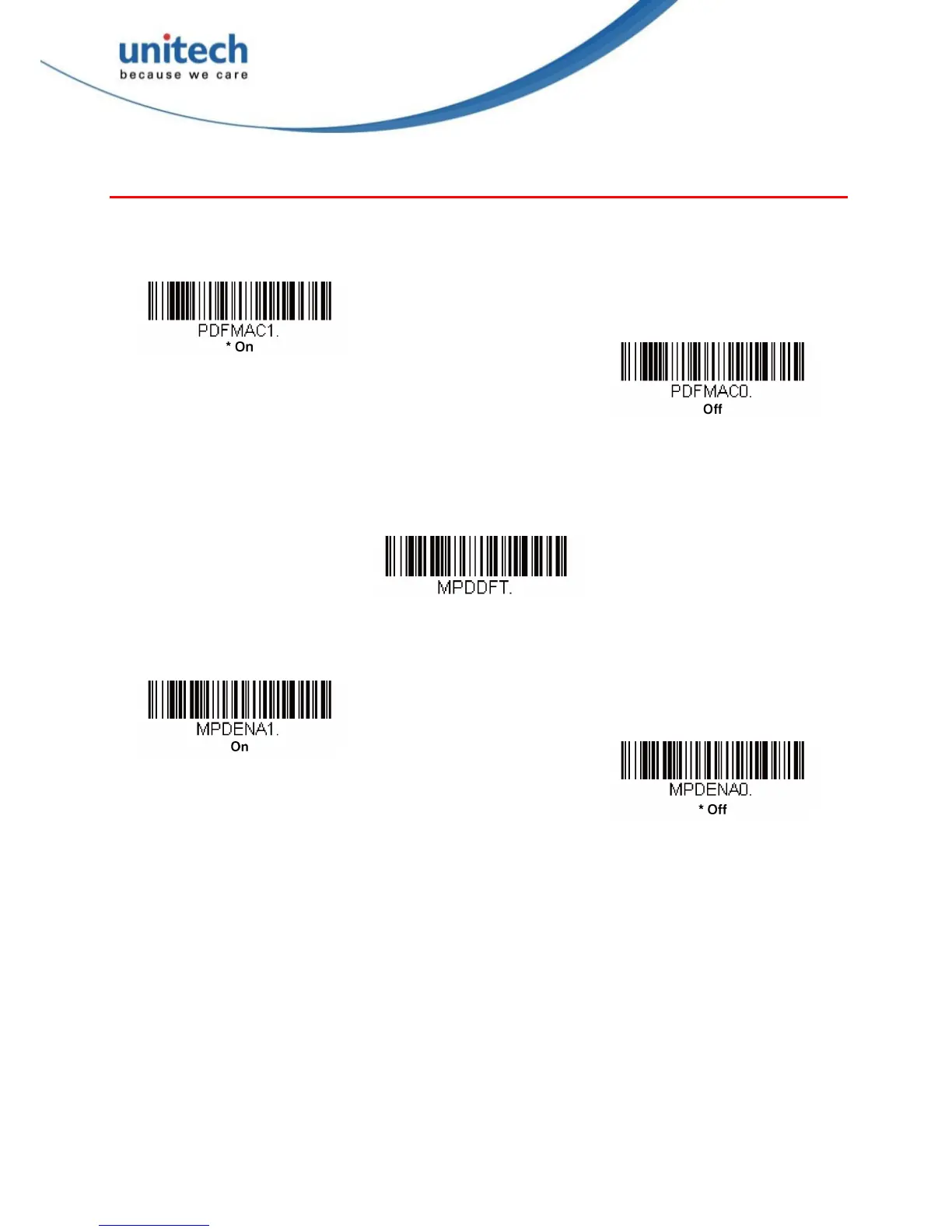

Copyright 2014 unitech Electronics Co., Ltd.
All rights reserved. Unitech is a registered trademark of unitech Electronics Co.,
Ltd.
MacroPDF417
MacroPDF417 is an implementation of PDF417
capa
ble of encoding very large amounts of
data into multiple PDF417 bar codes. When this
selection is enabled, thes
e multiple bar codes
are assembled into a single data string.
Default = On
.
MicroPDF417
< Default
All MicroPDF417 Settings >
MicroPDF417 On/Off
95
97
