12
DS1083-098A
the electric lock may only be activated by pressing the door opening button on the calling station when an
audio conversation has been established or when after having received a call or auto-on function either a
video connection has been established.
In “Free” mode, instead, the indoor station door opener button will only open the door unit electrical lock
only if the door unit is confi gured as main or the user belongs to the same door unit riser. This riser is defi ned
by the secondary door unit ID setting. This function is typically used for secondary stations.
The above applies to the vehicle and pedestrian gate electrical lock.
5.1.4. PARAMETER 4: call button enabling
This parameter can be changed to enable call buttons (2) and (7) present on the front part of the door unit.
Specifi cally, the buttons can be enabled on the call button only (7), on both buttons or on no button.
5.1.5. PARAMETER 5: button enabling to call switchboard
If the door unit was confi gured as main unit (by means of parameter 1), then call buttons (2) and (7) can be
enabled to call the switchboard.
If the buttons are enabled to call the switchboard (parameter 5 enabled) if will not be possible to
confi gure the call button enabling function (parameter 4).
5.2. CONTROLS AND DISPLAYS FOR CONFIGURATION
The confi guration and the respective set values are displayed by means of:

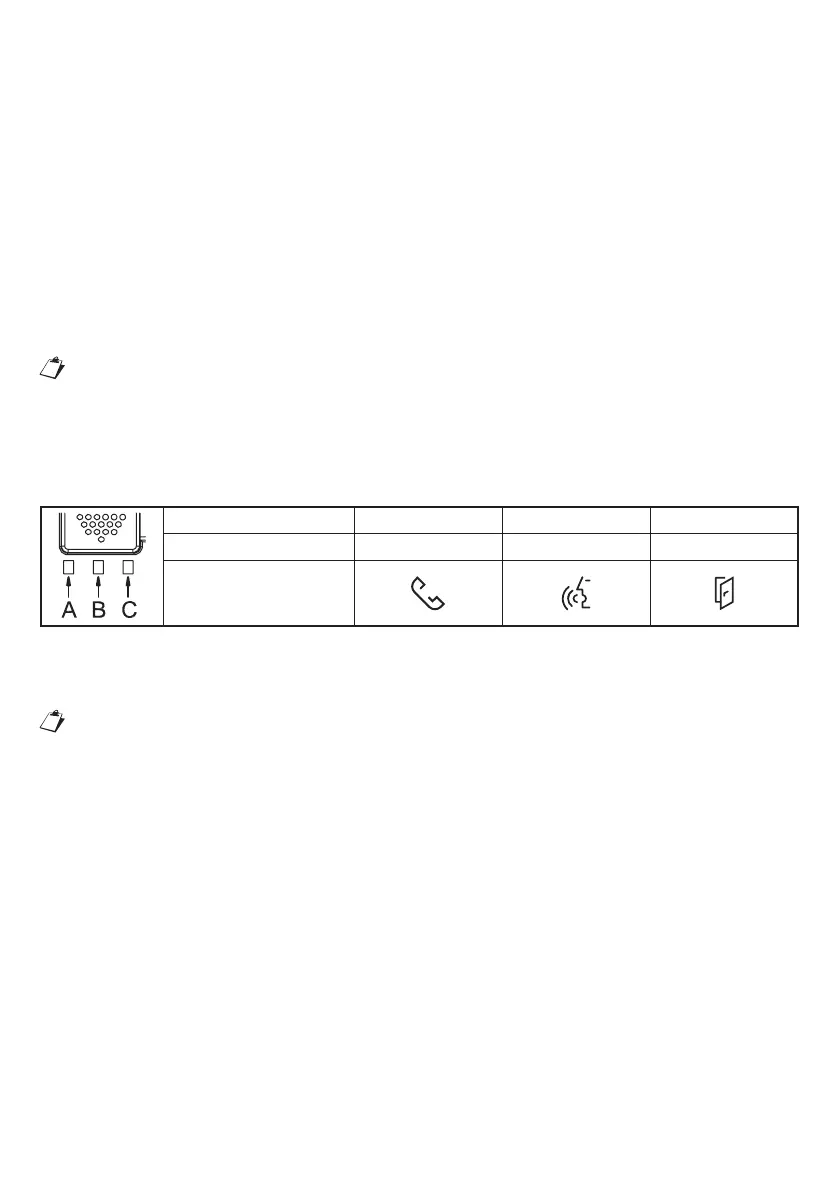

LED (1) for programming, as shown below:
LED reference A B C
LED colour Red or Green Orange Red or Green
Symbol on front
LED (4): LED for displaying the set parameter value;
BUTTON (7): button for changing and/or confi rming the parameter
PROGRAM button (10): button for starting the confi guration.
See the “Structure” chapter for the location of these components on the door unit.
5.3. READING/CONFIGURATION SEQUENCE
Each parameter is associated with a colour of the LEDs (1) for programming and the set value is indicated
by the LED (4) as follows:
LED (4): OFF
LED (4): ON STEADY
LED (4): ON BLINKING
The steps for reading or confi guring the device are shown below:
1. Press the PROGRAM button (10) briefl y (less than 2s): the LEDs (1) will blink on the door unit [A: red, B:
orange, C: red] to indicate that the device is in programming mode.
2. Press the BUTTON (7) again briefl y to select the parameter to be confi gured which can be identifi ed by
the LEDs associated with it according to the table shown in the following chapter.
3. Select the parameter and hold the BUTTON (7) pressed for longer (from 5 to 10 seconds) to set the
parameter as indicated visually by the LEDs (4).
4. Press the PROGRAM button (10) briefl y or wait for the timeout after 10 minutes to end confi guration
mode.
•
•
•
•
•
•
•
