15
DS1083-098A
Any connected modules which do not respect these constraints will be ignored by the door
unit.

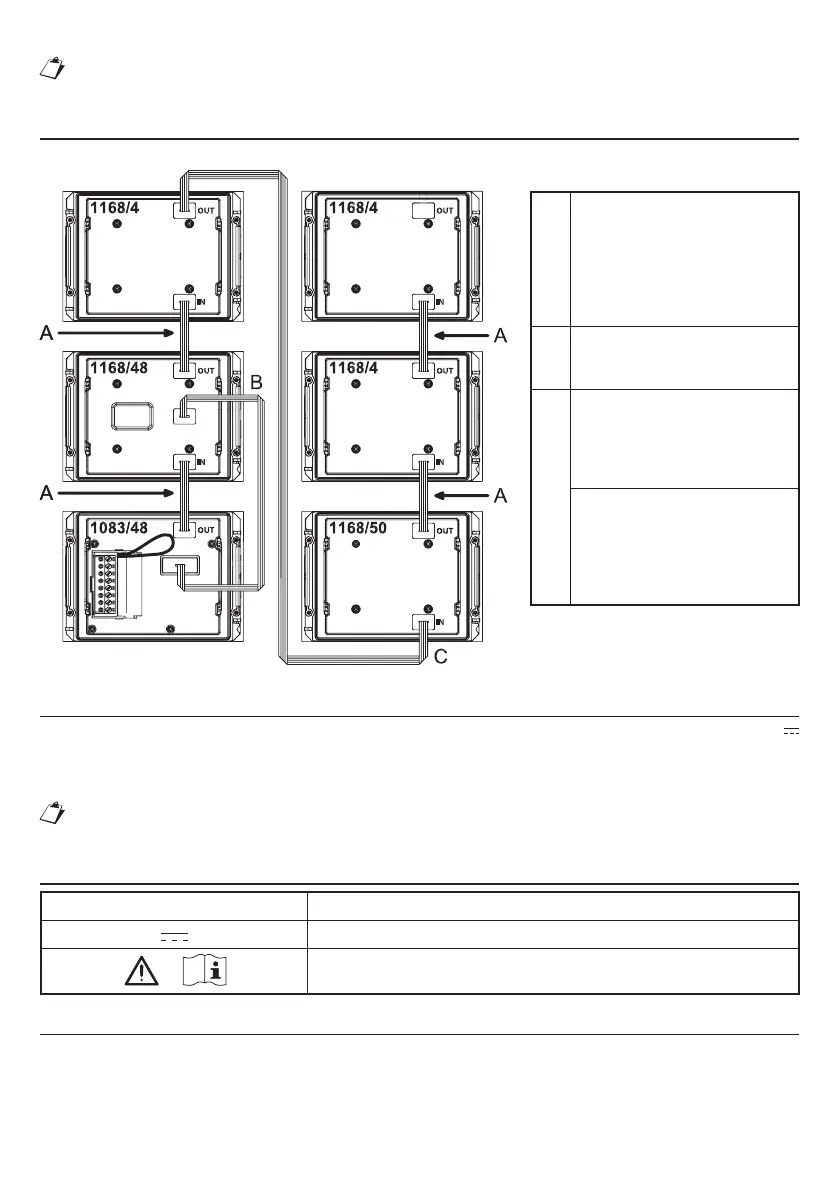

13. CONNECTION EXAMPLE
Rear view of the modules fi xed to the panel frame in tipped position.
A
6 cm long cord provided with
button module with expansion
unit Ref. 1168/4 and 1168/8
of the ILA and voice synthesis
module Ref. 1168/48 and of
the door number module Ref.
1168/50.
B
20 cm cord provided with ILA
and voice synthesis module
Ref. 1168/48.
C
38 cm long cord provided
with two-module frame Ref.
1168/62 and with casing
with two-module frame Ref.
1168/312.
58 cm long cord provided with
three or four-module frame
Ref. 1168/63 or 1168/64) and
of one-row casings with three
or four-module frame (Ref.
1168/313 or 1168/314).
14. TECHNICAL SPECIFICATIONS
Power voltage: ..................................................................................................................................36-48 V
Consumption @ 48Vdc:
Standby: .................................................................................................................................... < 10 mAcc
Full rate: .................................................................................................................................... < 250 mAcc
Wires with cross-section area of 0.5 mm
2
or larger must comply with IEC 60332-1-2; wires with
crosssection area smaller than 0.5 mm
2
must comply with IEC 60332-2-2.
15. KEY TO SYMBOLS
Symbol Description
Direct input voltage
See the installation manual of the device
16. SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, URMET S.p.A. declares that the radio equipment types:
AUDIO VIDEO EXTERNAL UNIT Ref. 1083/48 and EXTERNAL LOUDSPEAKER UNIT Ref. 1083/38
are in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
www.urmet.com
