Installation and maintenance instructions ecoTEC 0020173113_01 19
4Installation
4.8 Removing/fitting the side panel
You can also remove a side panel for installation or mainte-
nance purposes.
b
Caution.
Risk of damage caused by mechanical
tension.
Removing both side panels may cause
mechanical distortion in the boiler, which
can cause damage to the piping and poten-
tially result in leaks.
> Always only remove one side panel,
never both side panels at the same time.
1.
3.
4.
2.
4.7 Removing/fitting the side panel
b
Caution
Risk of damage to the side panel.
Unscrewed side panels that are merely sus-
pended from the back wall can fall down.
> Hold onto the side panel when you are
unscrewing it, and always remove it from
the boiler.

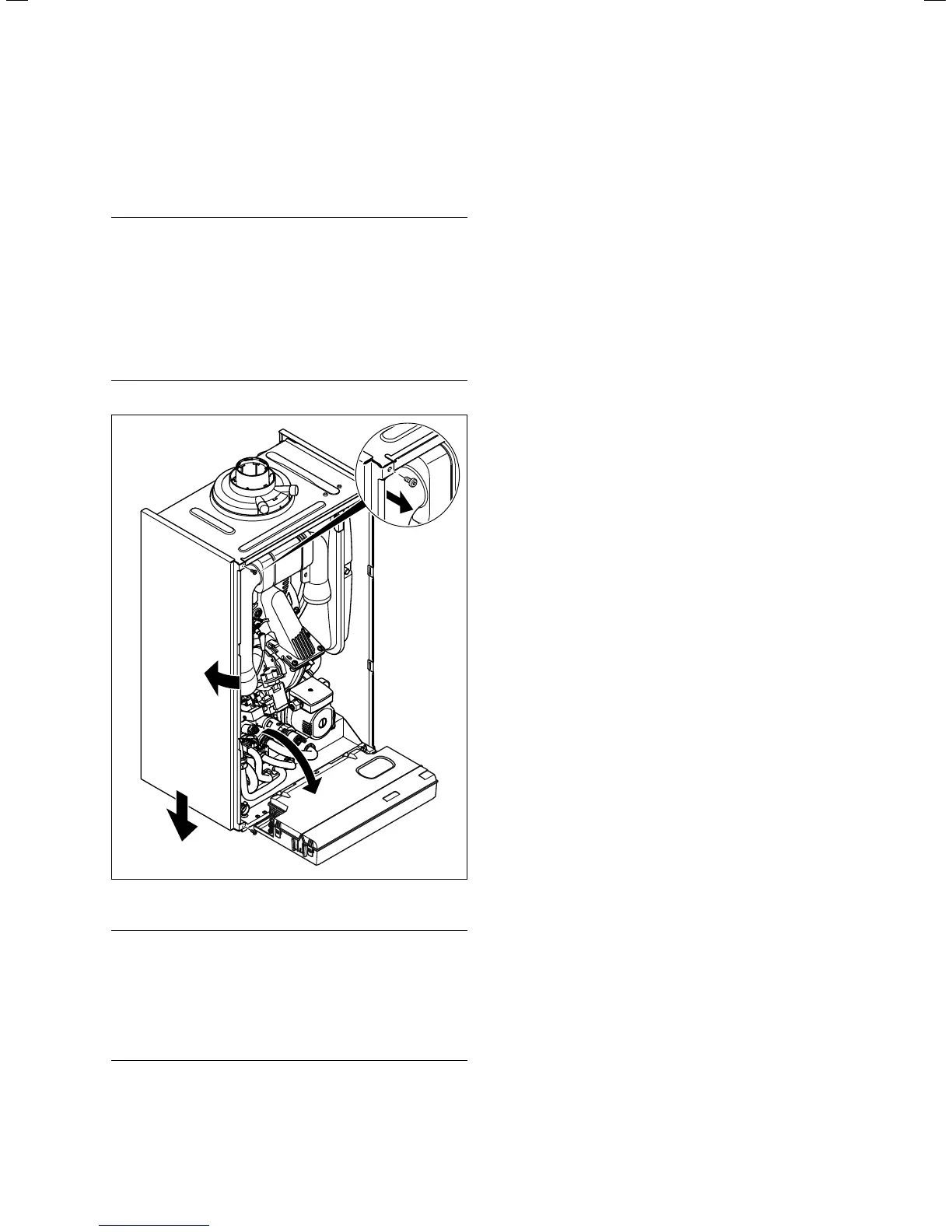

> Fold the electronics box (1.) forwards.
> Unscrew the two screws (2.) from the top and bottom of
the side panel.
> Hold onto the side panel (3.) when doing this.
> Swivel the side panel outwards and remove it from below
by pulling it downwards (4.).
> Install the side panel in reverse order.
