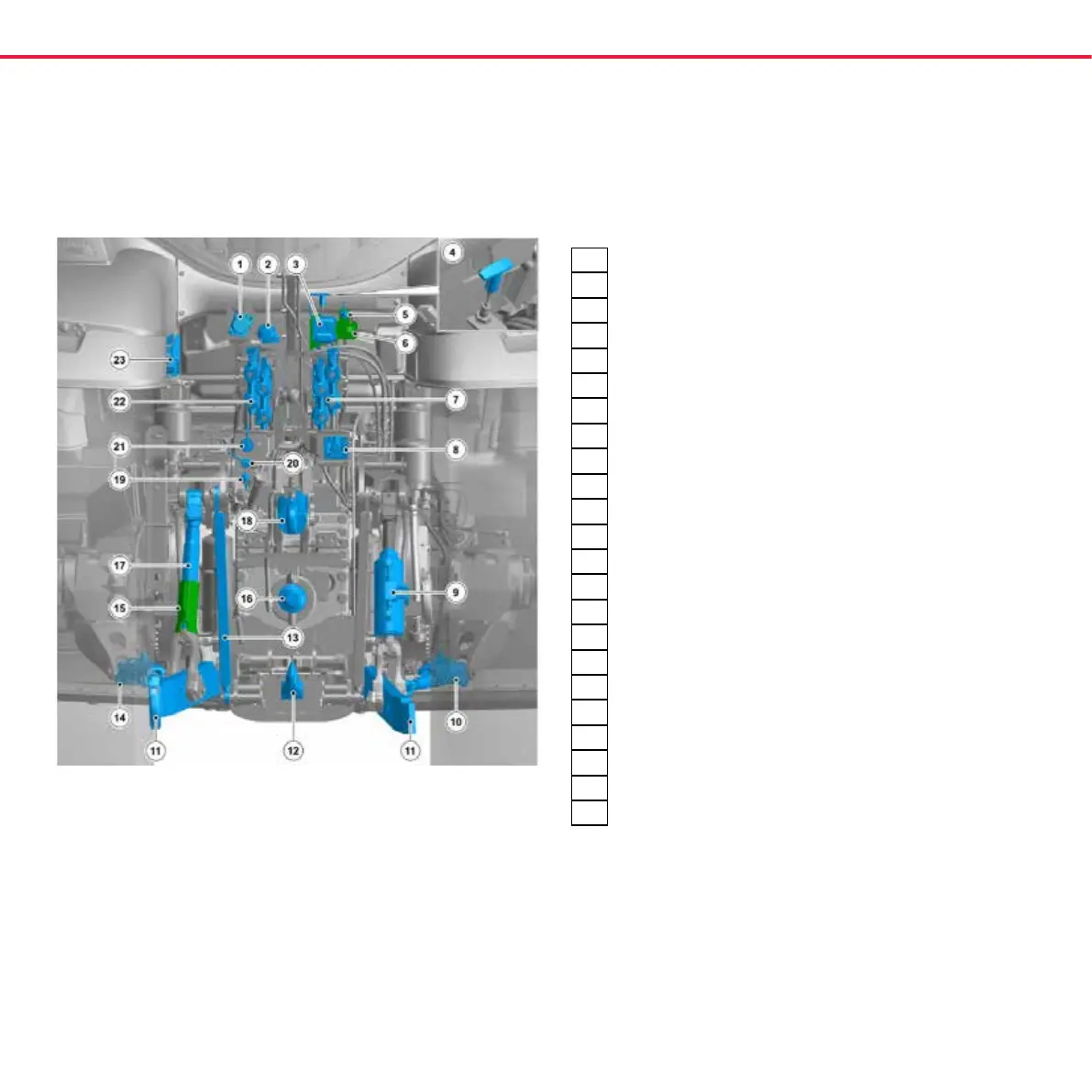

1. Trailer socket for trailer with ABS brakes
2. Trailer socket
3. Trailer coupling, Duo-Matic (optional)
4. Auxiliary control device for parking brake
5. Quick couplings for the auxiliary pneumaticsystem
6. Quick couplings for the pneumatic trailerbrakes
7. Quick couplings, auxiliary hydraulics
8. ISOBUS connector (optional)
9. Hydraulic levelling link
10. Right side limiter
11. Lower links
12. Pick-up hitch (optional)
13. Pick-up hitch lift links (optional together with the pick-up hitch)
14. Left side limiter
15. Levelling screw
16. Power take-off (PTO)
17. Lift link
18. Top link
19. Quick coupling, auxiliary hydraulics
20. Quick coupling, auxiliary hydraulics
21. Quick coupling, auxiliary hydraulics
22. Quick couplings, auxiliary hydraulics
23. Top link/lower link ball storage bracket
REAR CONTROLS
AND CONNECTIONS
The pick-up hitch is optional with many alternatives.
