Checking the brake oil level (03_09)
The tank of the brake fluid is placed on the right side of the handlebar, under the
handlebar cover.
To control the brake fluid level, proceed as follows:
- rest the vehicle on its centre stand and with the handlebars perfectly horizontal;

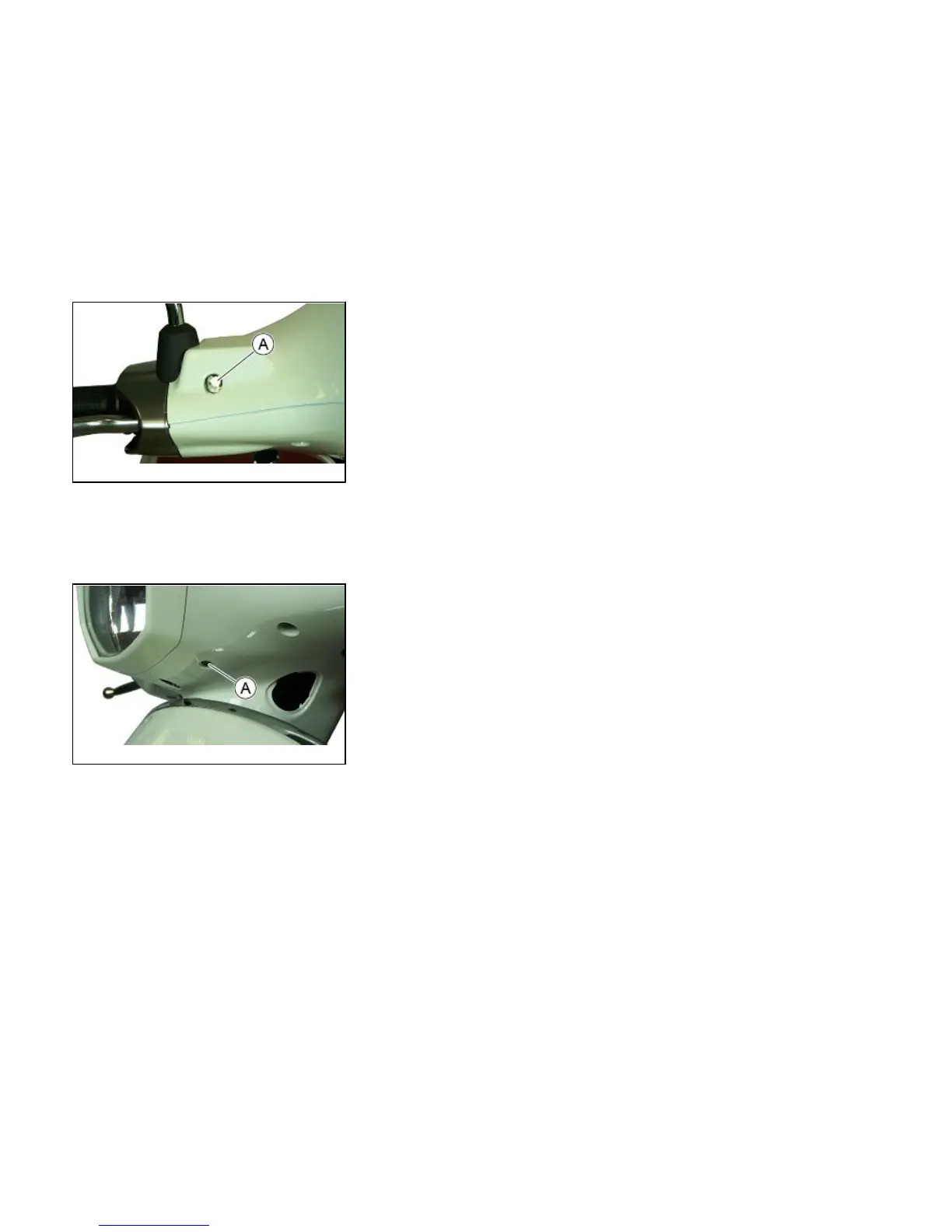

- control the level with the relative inspection sight glass «A», visible on the right front
side of the handlebar cover:
•
if the sight glass is full, the brake fluid level is correct.
•
If the brake fluid level is certified to the reference «MIN», go to an Authorised
Service Centre or carry out the top-up as indicated.
•
If the brake fluid level is lower than the reference «MIN», do not use the
vehicle and contact an Authorised Service Centre.
03_10
Braking system fluid top up (03_10, 03_11, 03_12, 03_13)
To access the brake fluid tank, remove the upper handlebar cover and proceed as
follows:
- Remove on both sides of the vehicle the screw «A» fixing the surround of the head-
light assembly.
- Remove the surround of the headlight assembly by releasing it from the upper fixing.
