Power Trim Buttons
51280
The buttons on the power trim control panel are used
for both single and twin engine installations.
For twin engine installations, the power trim control
panel can be used to make individual or simultaneous
adjustments to the drives.
By trimming out the drive away from the transom, the
height of the bow will be “raised” in relation to the hor-
izontal axis, while trimming in the drive will “lower” the
bow of the boat.

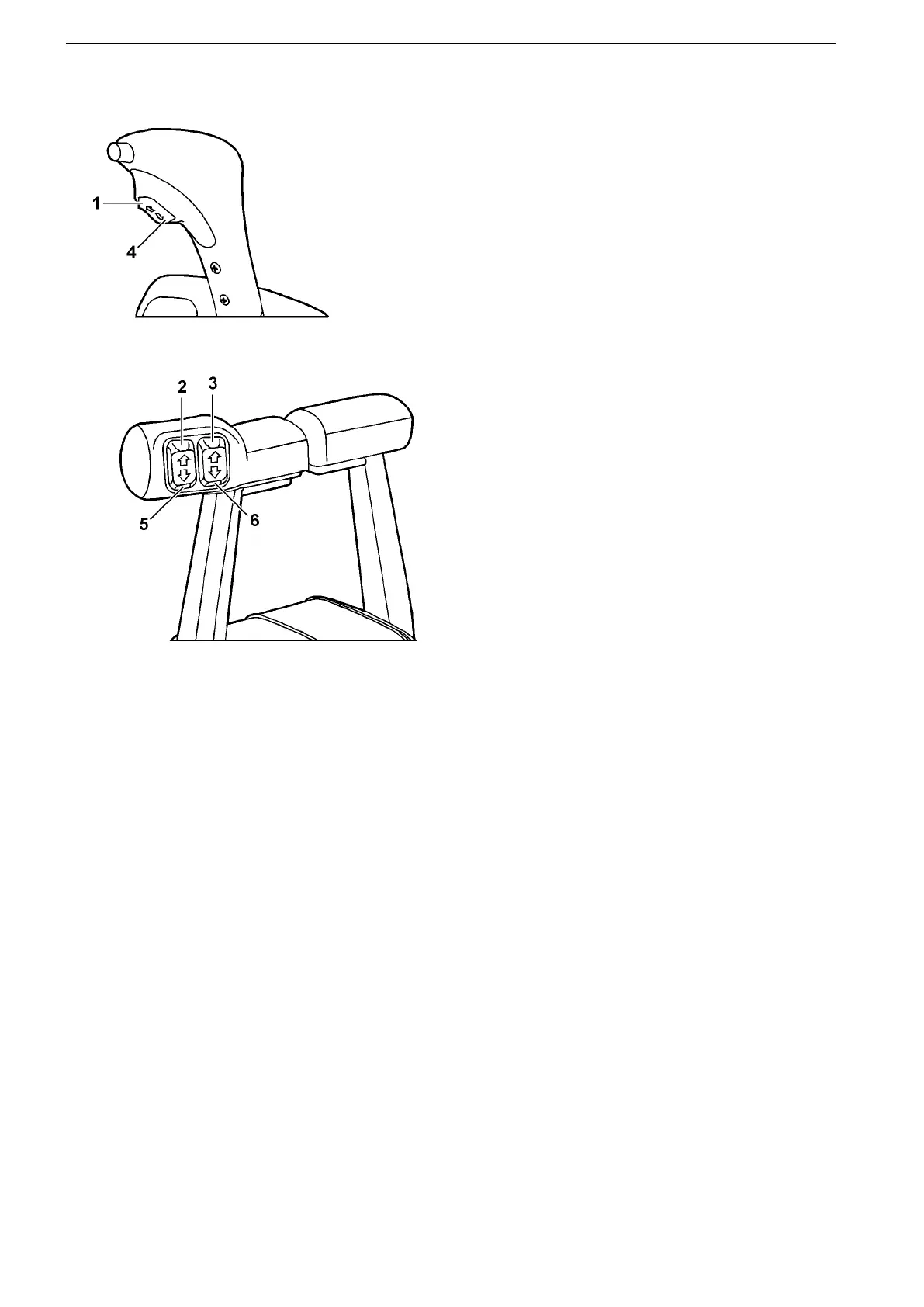

In single engine installations, the drive can be oper-
ated by pressing button 1 or button 4.
In twin engine installations, both drives can be oper-
ated simultaneously by pressing buttons 2 & 3 or but-
tons 5 & 6.
Trimming out the Drive
Press button 1 on the control panel or the trim
button(s) on the control lever to raise the bow of the
boat (drive trimmed out).
The drives can be operated separately by pressing
button 2 on the control panel for the port drive and
button 3 for the starboard drive.
Trimming in the Drive
Press button 4 on the control panel or the trim
button(s) on the control lever to lower the bow of the
boat (drive trimmed in).
The drives can be operated separately by pressing
button 5 on the control panel for the port drive and
button 6 for the starboard drive.
Instruments and Controls
16 47700385 05-2009
