Power Trim Instrument and
Displays
Digital Instrument
51726

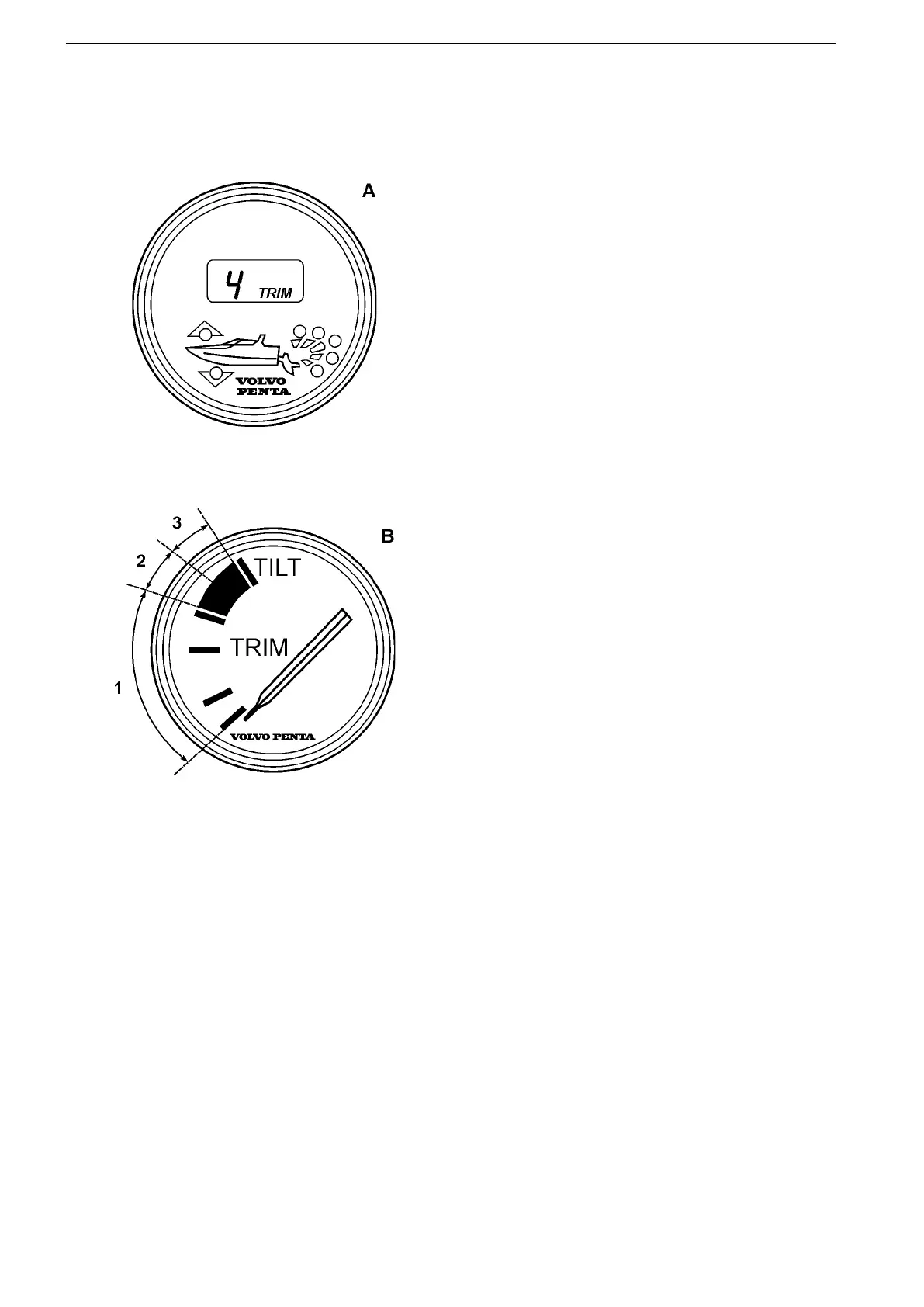

The digital instrument A shows the trim angle in digits
and the trim range (TRIM) and beach range (BEACH)
in letters.
For an explanation of trim ranges, please refer to Trim
Ranges in the previous section.
Analog Instrument
51727
The analog trim instrument B shows the current posi-
tion of the drive. This instrument has three ranges:
1. Trim range
2. Beach range
3. Tilt range
For an explanation of trim ranges, please refer to Trim
Ranges in the previous section.
Instruments and Controls
18 47700385 05-2009
