Controls

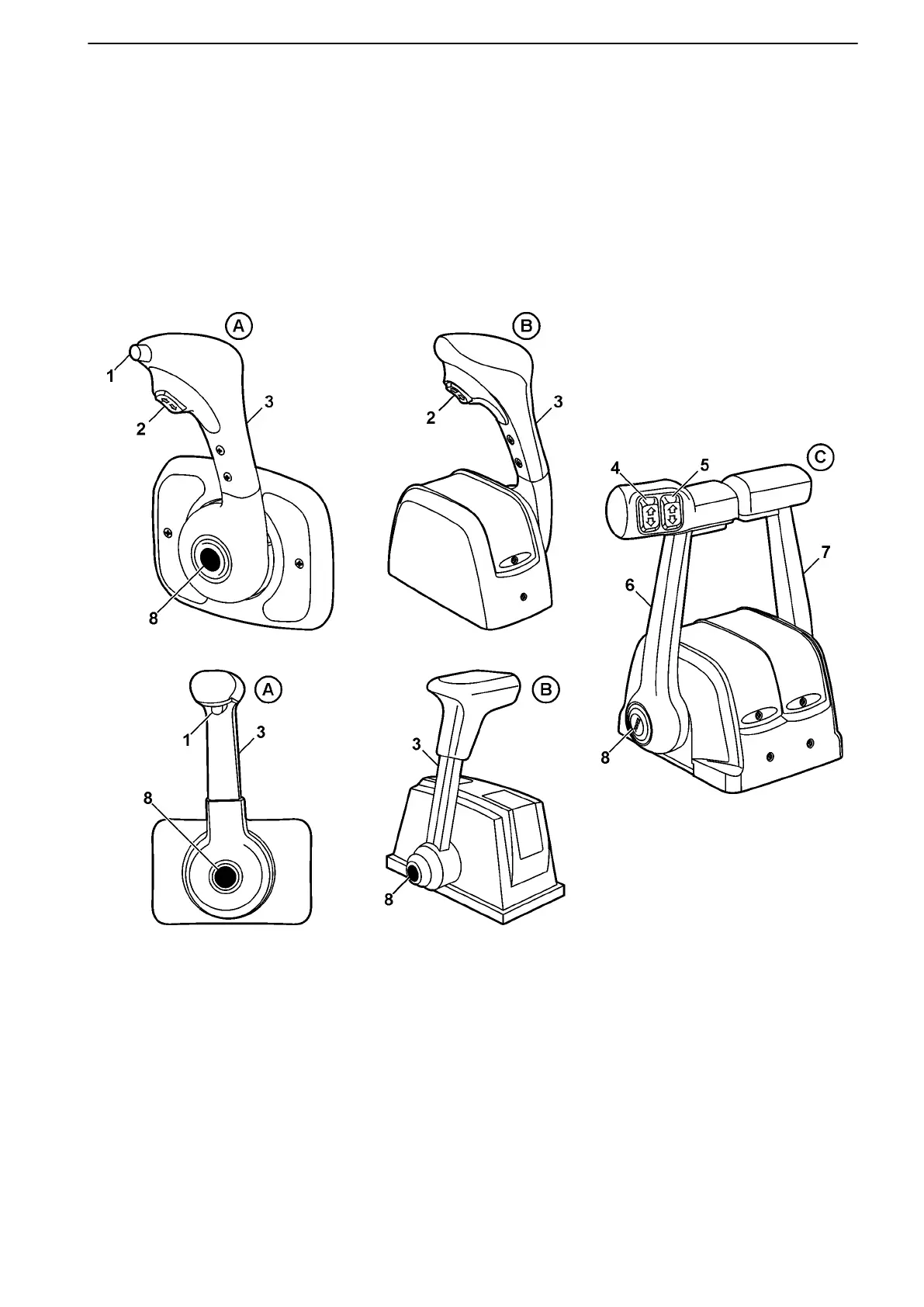

Volvo Penta controls are available in single side-mount A, top-mount B, or twin top-mount C configurations. The
control levers have an adjustable friction brake and a neutral position switch to ensure that the engine cannot be
started when the drive is in gear.
Your boat may be equipped with remote controls other than those described below. If Volvo Penta controls are
not used, ask your dealer for operating instructions for the remote control used in your boat since operation and
function may differ from Volvo Penta remote controls.
51260-b
1. Neutral Interlock Button 5. Starboard Trim/Tilt Button
2. Trim/Tilt Button 6. Port Engine Throttle Control Lever
3. Engine Throttle Control Lever 7. Starboard Engine Throttle Control Lever
4. Port Trim/Tilt Button 8. Gear Shift Release
Instruments and Controls
47700385 05-2009 19
