Operating Trim Controls

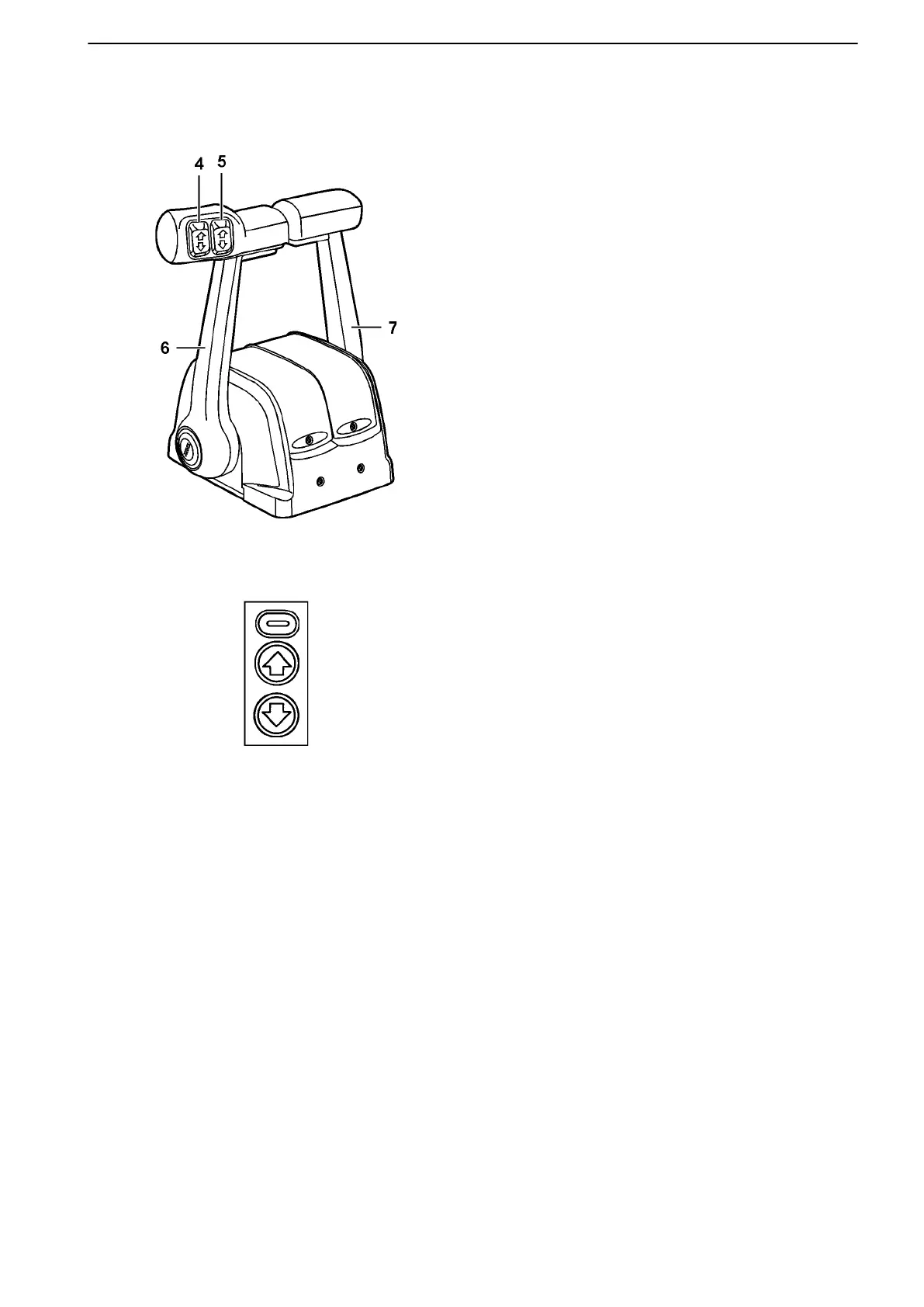

Control Lever
51267
The control button on the control lever has two func-
tions:
● Pressing the top half of the button moves the
drive trim out while raising the boat’s bow.
● Pressing the bottom half of the button moves the
drive trim in while lowering the boat’s bow.
Trim Switch
22766-1
Trimming (raising and lowering the drive) can be per-
formed by using the trim switch located on the instru-
ment panel.
● Center button: Moves the drive trim out while
raising the boat’s bow.
● The lower button moves the drive trim in while
lowering the boat’s bow.
● The top button (optional) disconnects a “catch” so
that the drive can be trimmed into the BEACH and
TILT positions. (Press this button and the center
button at the same time.)
Operation
47700385 05-2009 33
