Volvo D13 User Manual

Section 01: ENGINE
PA1561 15

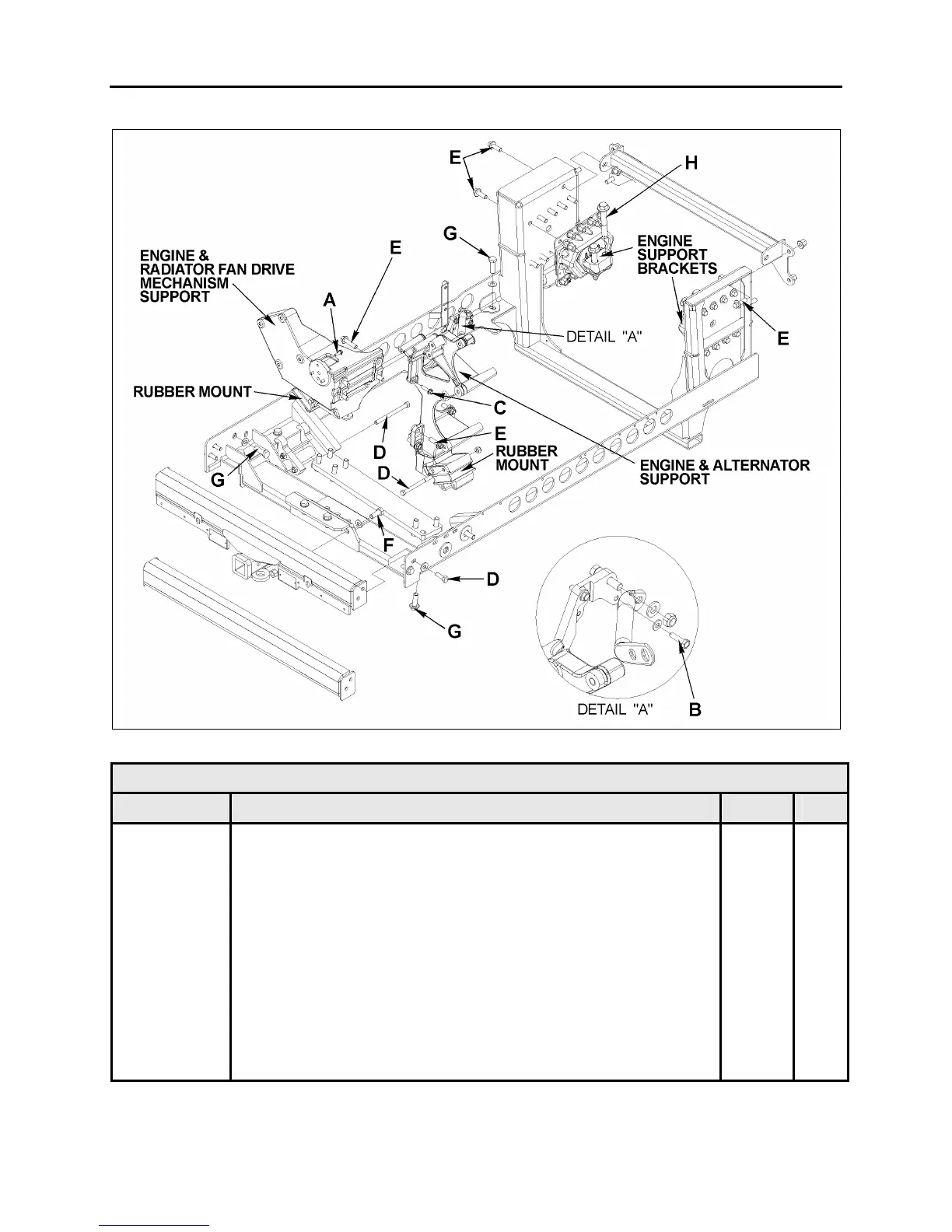

FIGURE 10: VOLVO ENGINE POWER PLANT CRADLE INSTALLATION
DRY TORQUES
REFERENCE DESCRIPTION Lbf-ft Nm
A SCREW, CAP HEXAGONAL HEAD M8 – 1.25 G8.8 16 22
B SCREW, CAP HEXAGONAL HEAD M8 – 1.25 G10.9 22 30
C SCREW, CAP HEXAGONAL HEAD M10 – 1.5 G10.9 43 58
D SCREW, CAP HEXAGONAL HEAD M12 – 1.75 G8.8 60 81
E SCREW, CAP HEXAGONAL HEAD M14 – 2.0 G8.8 90 122
F SCREW, CAP HEXAGONAL HEAD M16 – 2.0 G8.8 140 190
G SCREW, CAP HEXAGONAL HEAD M16 – 2.0 G10.9 190 258
H SCREW, CAP HEXAGONAL HEAD M20 – 2.5 G10.9 450 610

Volvo D13 Specifications

Engine Specifications

engine type	Diesel four cycle/in-line direct injection engine
number of cylinders	12.8 L in-line 6
operating range	1400-1800 RPM
peak power rating	435 HP (324 kW)
peak torque rating	1650 Ft-lb (2237 Nm)
low idle	600 rpm
fast idle	2150 rpm
maximum full load revolutions	1900 rpm

Oil Capacity

oil pan capacity low limit	25 quarts/24 liters
oil pan capacity high limit	34 quarts/32 liters
total engine oil capacity with filters	41 quarts/39 liters
