Volvo D13 User Manual

Section 01: ENGINE
PA1561 17

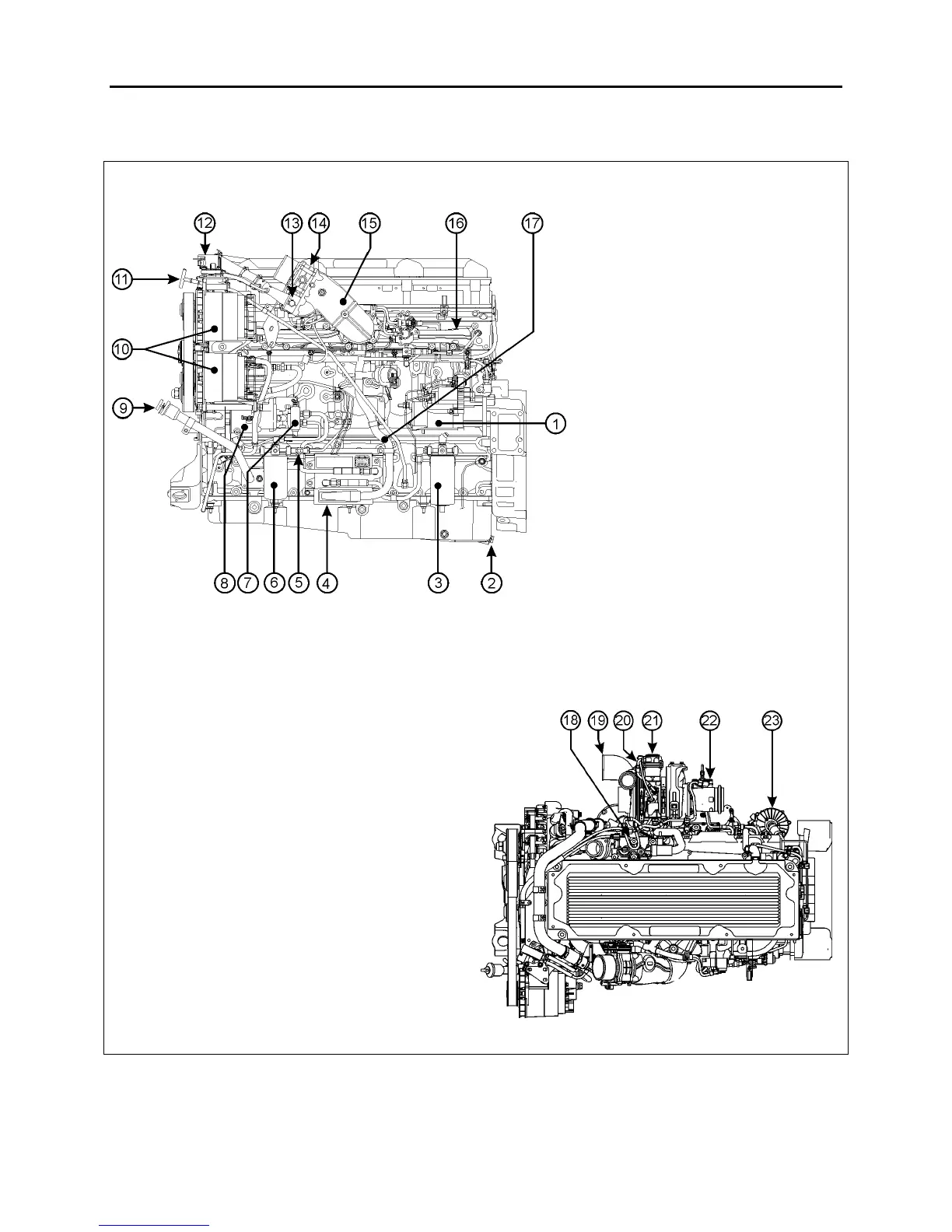

2.3 ENGINE OVERVIEW
1- Starter motor
2- Oil pan drain plug
3- Primary fuel-filter/water-
separator
4- MCM (DDEC VI Electronics)
5- Secondary fuel filter shutoff
valve
6- Secondary fuel filter
7- Fuel pump
8- Air compressor
9- Engine oil filling tube
10- Bosch alternators (2)
11- Engine oil dipstick
12- EGR delta pressure sensor
13- EGR valve
14- Intake throttle
15- EGR mixer
16- Intake manifold
17- Engine Harness
18- Thermostat housing
19- Turbo compressor outlet
20- Actuator coolant return line
21- Electrically controlled actuator
22- HC doser
23- Closed-crankcase breather/oil separator

Volvo D13 Specifications

Engine Specifications

engine type	Diesel four cycle/in-line direct injection engine
number of cylinders	12.8 L in-line 6
operating range	1400-1800 RPM
peak power rating	435 HP (324 kW)
peak torque rating	1650 Ft-lb (2237 Nm)
low idle	600 rpm
fast idle	2150 rpm
maximum full load revolutions	1900 rpm

Oil Capacity

oil pan capacity low limit	25 quarts/24 liters
oil pan capacity high limit	34 quarts/32 liters
total engine oil capacity with filters	41 quarts/39 liters
