Volvo D13 User Manual

Section 01: ENGINE
PA1561 39
SPN FMI PID/SID
PID/SID
ID
FLASH
CODE FAULT DESCRIPTION
4227 5 SID 53 1324 Electrostatic Oil Separator Circuit Failed Open
4227 4 SID 155 1615 Oil Separator Circuit Failed Low
4227 3 SID 155 1615 Oil Separator Circuit Failed High
4227 7 SID 155 1615 Oil Separator, Max. Duration Time Reached
4228 16 SID 147
1241 Smart Remote Actuator 5 (VGT), Temperature Fault
4228 15 SID 147
1241 Smart Remote Actuator 5 (VGT), Temperature Warning

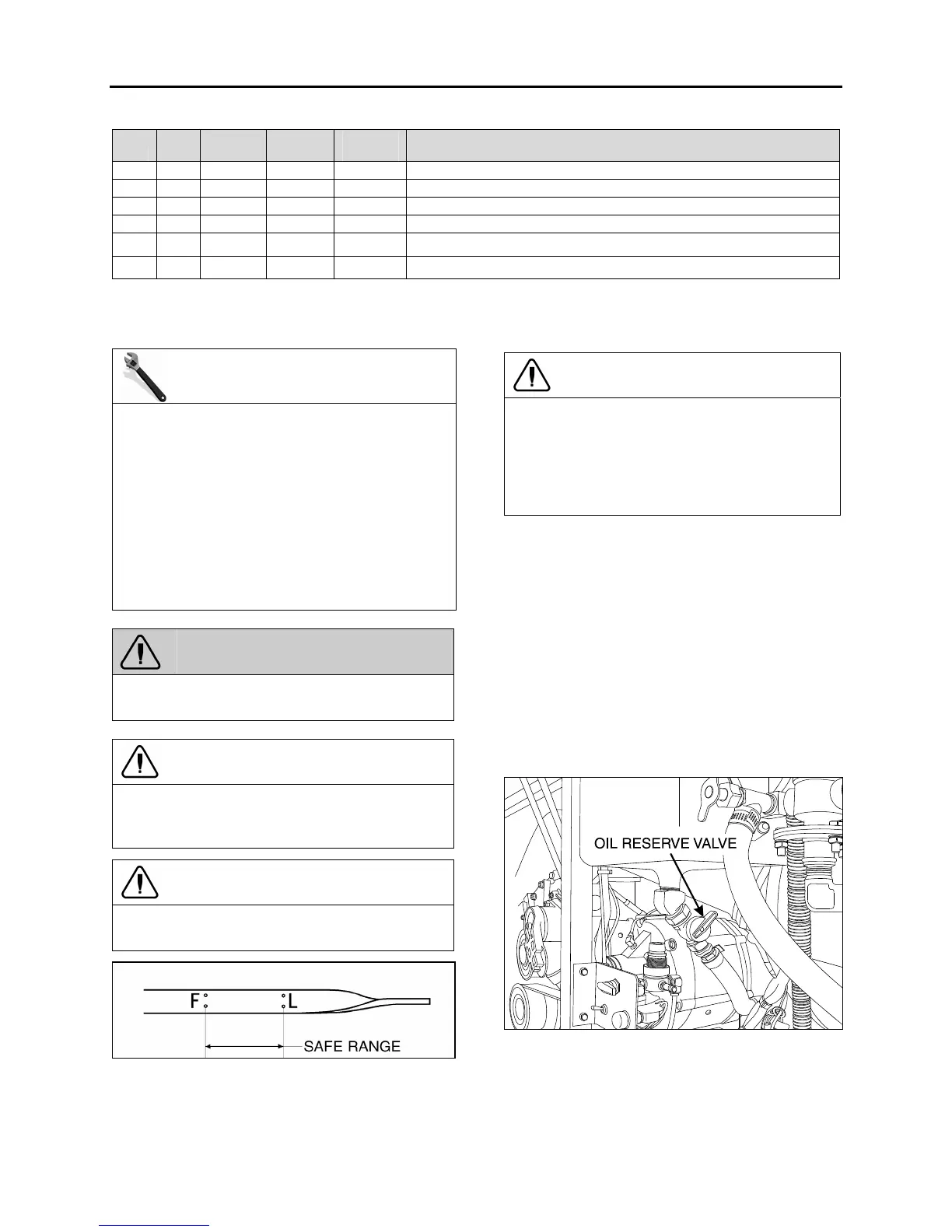

2.12 ENGINE OIL LEVEL
MAINTENANCE
Check the oil level daily with the engine
stopped. If the engine has just been stopped
and is warm, wait at least 10 minutes to allow
the oil to drain back to the oil pan before
checking. Wipe the dipstick clean then check
oil level. The level should always be within the
safe range on the dipstick (Fig. 17). Add the
proper grade of oil to maintain the correct level
on the dipstick. All diesel engines are
designed to consume some oil, so a periodic
addition of oil is normal.
WARNING
Touching a hot engine can cause serious
burns.
CAUTION
Do not overfill. Oil may be blown out through
the crankcase breather if the crankcase is
overfilled.
CAUTION
Clean end of tube before removing the dipstick
to prevent oil contamination.
FIGURE 17: ENGINE OIL LEVEL DIPSTICK
01027
CAUTION
If the oil level is constantly above normal and
excess lube oil has not been added to the
crankcase, consult with an authorized Detroit
Diesel service outlet for the cause. Fuel or
coolant dilution of lube oil can result in serious
engine damage.
The vehicle is provided with an oil reserve tank
with a capacity of 2.2 US gallons (8,3 liters).
This reserve tank is connected to the crankcase
by a hose with a shutoff valve, allowing oil to be
added to crankcase. To adjust oil level, open the
oil reserve tank shutoff valve and allow oil to
discharge into the engine until the "Full" mark on
the dipstick is reached then close the valve.
Check oil reserve tank level and pour oil in the
reserve tank if necessary (Fig. 18). Comparison
of oil levels in sight gauge, before and after
adding oil to crankcase, shows approximately
how much oil has been added.
FIGURE 18: OIL RESERVE TANK
01050

Volvo D13 Specifications

Engine Specifications

engine type	Diesel four cycle/in-line direct injection engine
number of cylinders	12.8 L in-line 6
operating range	1400-1800 RPM
peak power rating	435 HP (324 kW)
peak torque rating	1650 Ft-lb (2237 Nm)
low idle	600 rpm
fast idle	2150 rpm
maximum full load revolutions	1900 rpm

Oil Capacity

oil pan capacity low limit	25 quarts/24 liters
oil pan capacity high limit	34 quarts/32 liters
total engine oil capacity with filters	41 quarts/39 liters
