Volvo D13 User Manual

Section 01: ENGINE
PA1561 6
1.2 ENGINE OVERVIEW
NOTE
For additional information concerning Volvo D13 engine components or engine-related components,
consult Volvo Trucks Canada or Volvo Trucks North America Web Site under: Parts & Service. On
Volvo web site, you will find detailed service procedures for parts replacement, repair and
maintenance.

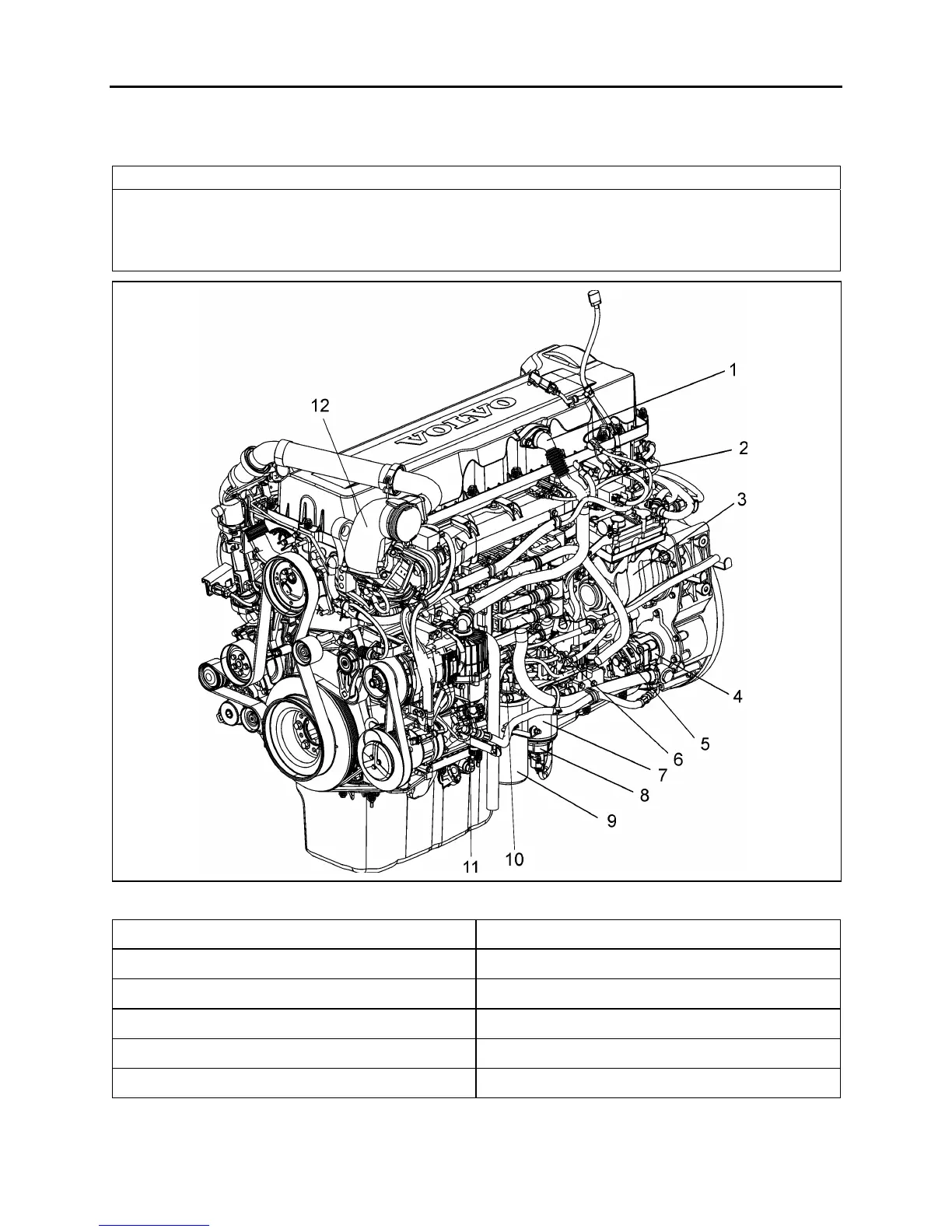

FIGURE 1: D13F ENGINE, ALTERNATOR SIDE (TYPICAL)
1. Breather Tube 7. Fuel Filter
2. Intake Manifold 8. Fuel/Water Separator
3. Air Compressor 9. Fuel Filter
4. Power Steering Pump 10. Hand-Priming Pump
5. Fuel Pump 11. Crankcase Ventilator
6. Engine Electronic Control Unit (EECU) 12. EGR Mixing Chamber

Volvo D13 Specifications

Engine Specifications

engine type	Diesel four cycle/in-line direct injection engine
number of cylinders	12.8 L in-line 6
operating range	1400-1800 RPM
peak power rating	435 HP (324 kW)
peak torque rating	1650 Ft-lb (2237 Nm)
low idle	600 rpm
fast idle	2150 rpm
maximum full load revolutions	1900 rpm

Oil Capacity

oil pan capacity low limit	25 quarts/24 liters
oil pan capacity high limit	34 quarts/32 liters
total engine oil capacity with filters	41 quarts/39 liters
