Group 72 Design and Function
Design and Function
Rear Suspension

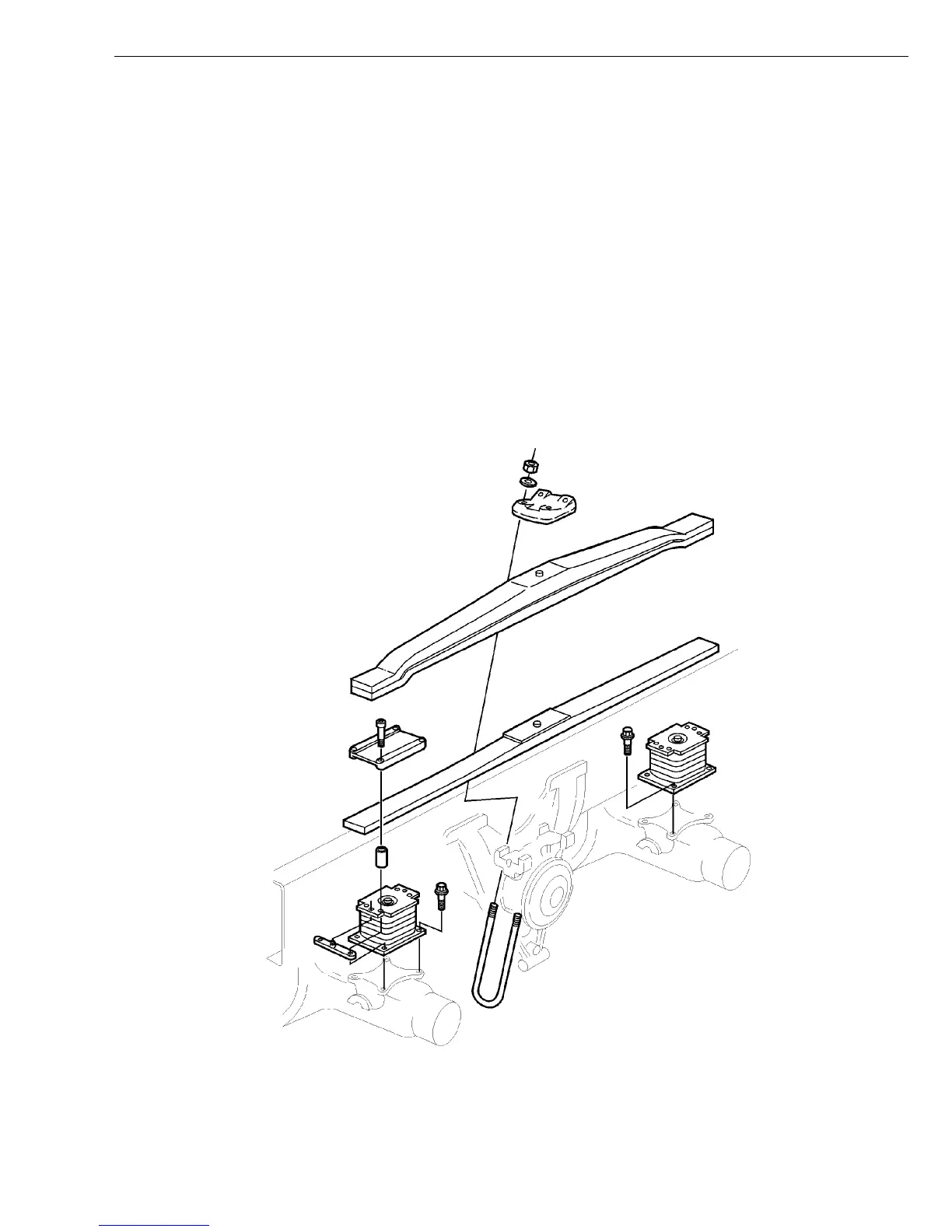

The VOLVO T-Ride Tandem Suspension is designed for use in both on-and off-highway
applications. It offers maximum atriculation for traction. The parabolic tapered spring
leaves are mounted upside-down outside the frame rails. The ride is further enhanced
by rubber cushions bolted to the end of each spring resting on the respective rear axle.
These cushions absorb shock and vibration.
The suspension features eight torque rods that help maintain the rear axle alignment.
Four of the rods are installed on top of the rear axles in an opposite “V” pattern. These
“V” torque rods anchor the rear axles to the frame, while distributing and maintaining
laterally transmitted forces, as well as any starting and braking torques. The four lower
torque rods also transfer starting and braking torques from the rear axles to the frame.
