Group 72 Service Procedures
7229-03-02-01
Rear Spring Retaining Bolt, Replacement
Please read “Guidelines for Working on the Volvo T-Ride
Suspension” page 19 before beginning this procedure.
1
Park the vehicle on a level surface and chock the front
wheels.
2

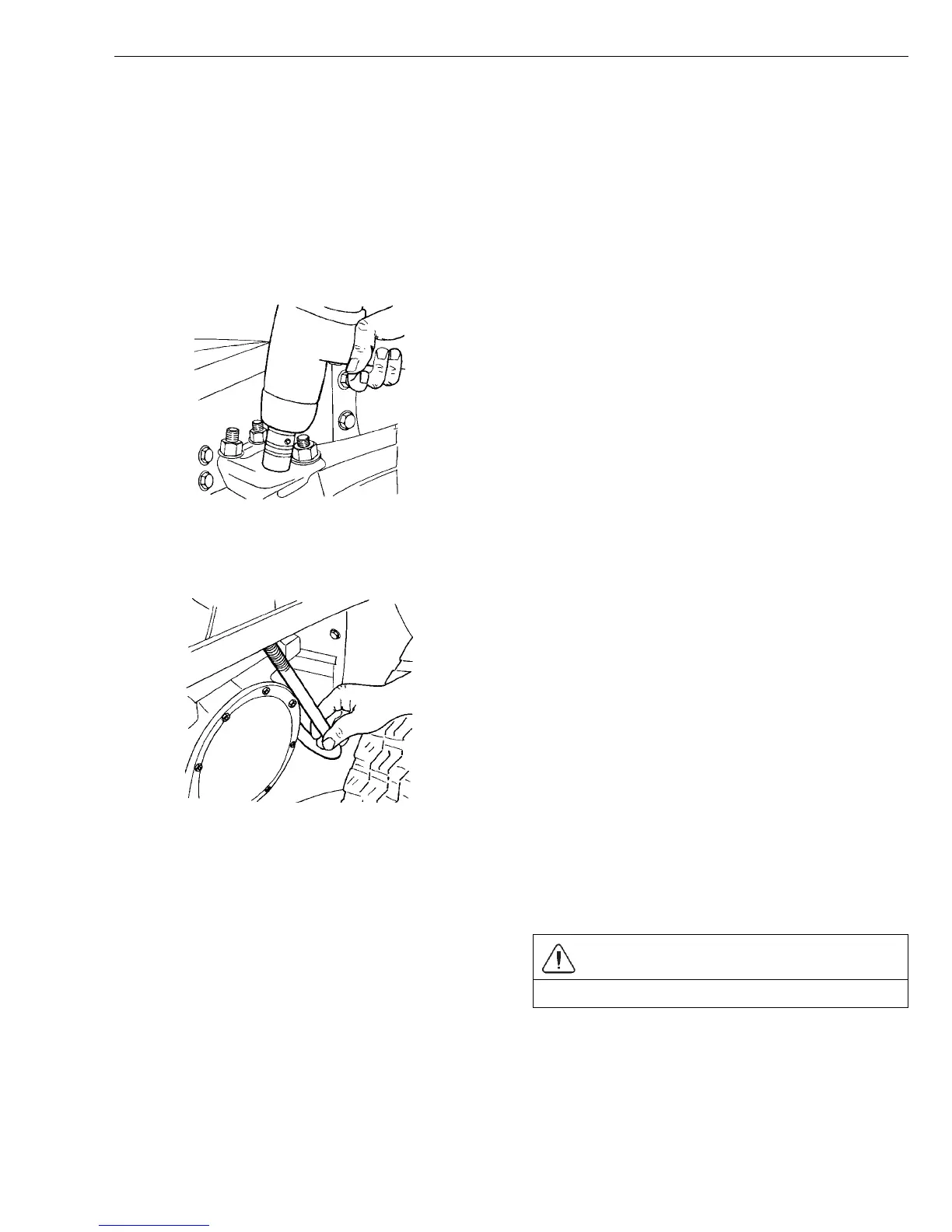

W6001312
Removing the U-bolt nuts
Remove the spring U-bolt nuts and then the spring
saddle cap.
3
W6001314
Removing the U-bolts
Remove the spring U-bolts.
4
To facilitate the U-bolt removal, rotate the cradle to the left
and right, and slide the U-bolt out.
CAUTION
Do not reuse U-bolts.
5
To reassemble with new U-bolts, reverse procedures 1
through 3.
