Group 72 Service Procedures
13
Install the leaf springs and spring saddle cap. Start
U-bolts and tighten them to a torque of 500 ± 75 Nm
(369 ± 55 ft-lb).
CAUTION
Do not reuse U-bolts.
Note: Make sure the leaf spring dowels and shims are
lined up properly.
500 ± 75 Nm (369 ± 55 ft-lb)
7221-19-02-01
Spring Assembly, Rear Leaf, Removal and Installation
Please read “Guidelines for Working on the Volvo T-Ride
Suspension” page 19 before beginning this procedure.
1
Park the vehicle on a level surface and chock the front
wheels.
2

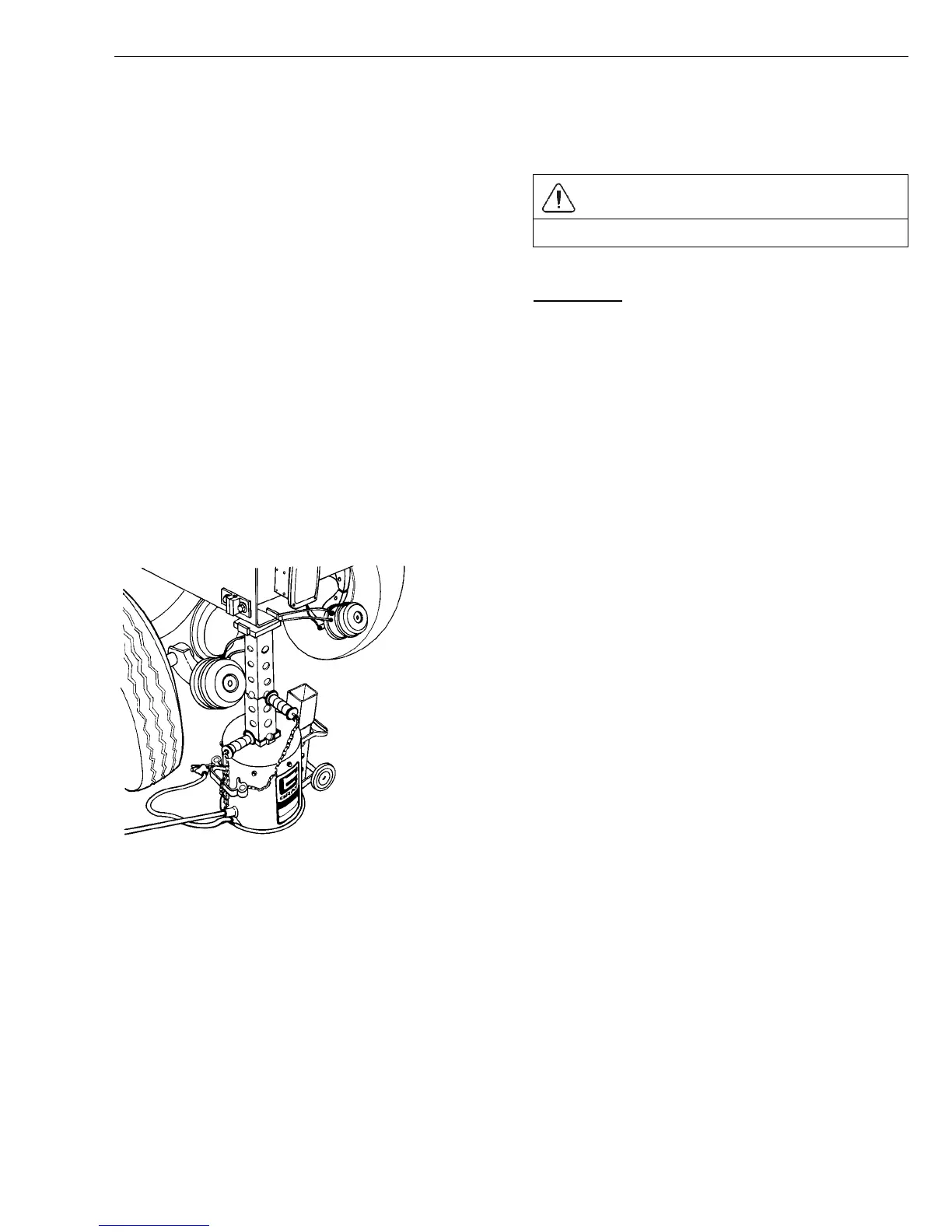

W7000269
Raising the frame
Using an air lift, raise the frame until the pressure is
relieved from the leaf spring assembly.
3
Support the frame with jack stands at the front and
rear of the suspension.
30
To Next Page
